Control System Device And Control Relationship Chart

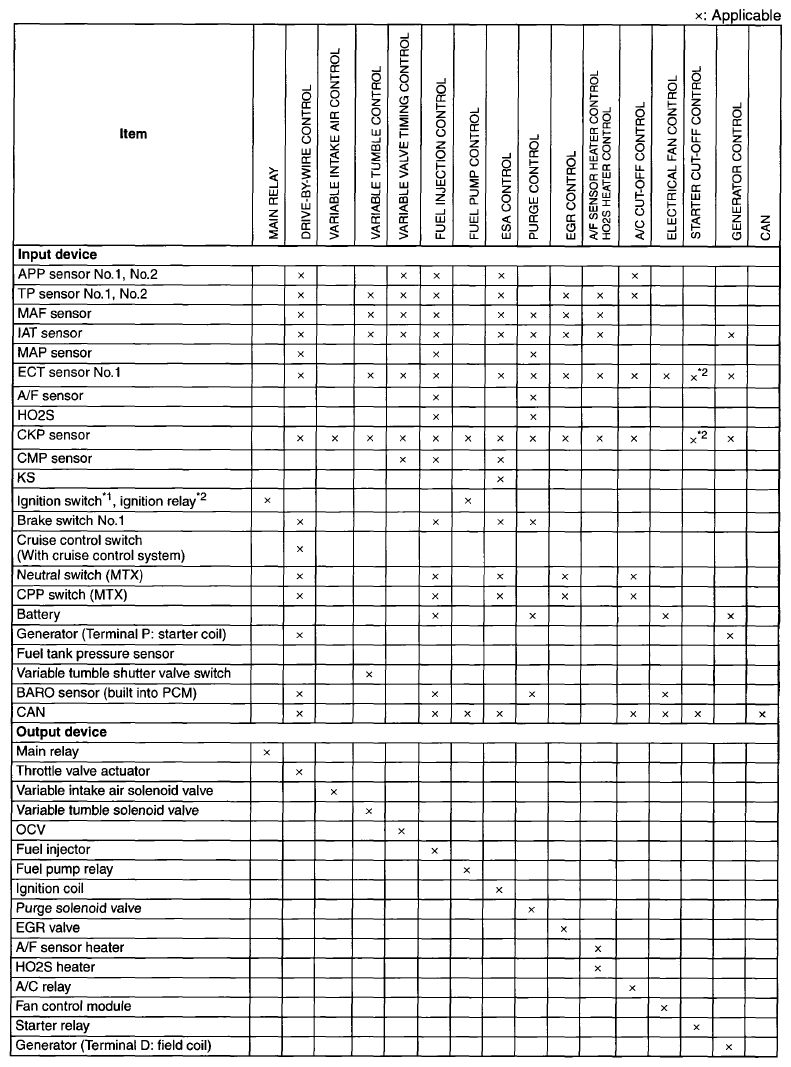

Fig 1: Control System Device And Control Relationship Chart - LF And L5 (1 Of 2)
G07864590Courtesy of MAZDA MOTORS CORP.

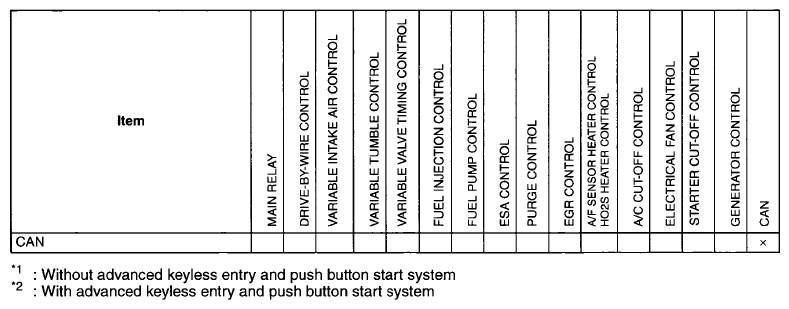

Fig 2: Control System Device And Control Relationship Chart - LF And L5 (2 Of 2)
G07864591Courtesy of MAZDA MOTORS CORP.
