Auto Light System

NOTE:

Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the PERSONALIZATION FEATURES SETTING PROCEDURE.

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initial screen of the M-MDS.
1. Select the "Module Programming"
Then, select items from the screen menu in the following order.
1. Select "Programmable Parameters"
2. Select "Exterior Lighting"

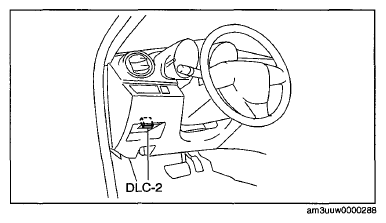

  Fig 1: Identifying DLC-2
  Courtesy of MAZDA MOTORS CORP.

Select the item name, and then select option.

M-MDS display	Function	Initial setting	Setting content	Control unit
Autolamp On Setting	The auto light system sensitivity can be adjusted.	Standard (Other)	Standard (Other)/Low (Other)	Auto light/wiper control module

NOTE:

If the mode is set to "Low (Other)", the illumination level for illuminating the TNS and headlights decreases. Therefore, the TNS and headlights illuminate when the ambient light is lower than when the level is set to "Standard (Other)".
