Component Tests and General Diagnostics

POWER WINDOW SYSTEM PRELIMINARY INSPECTION [POWER WINDOW SYSTEM]

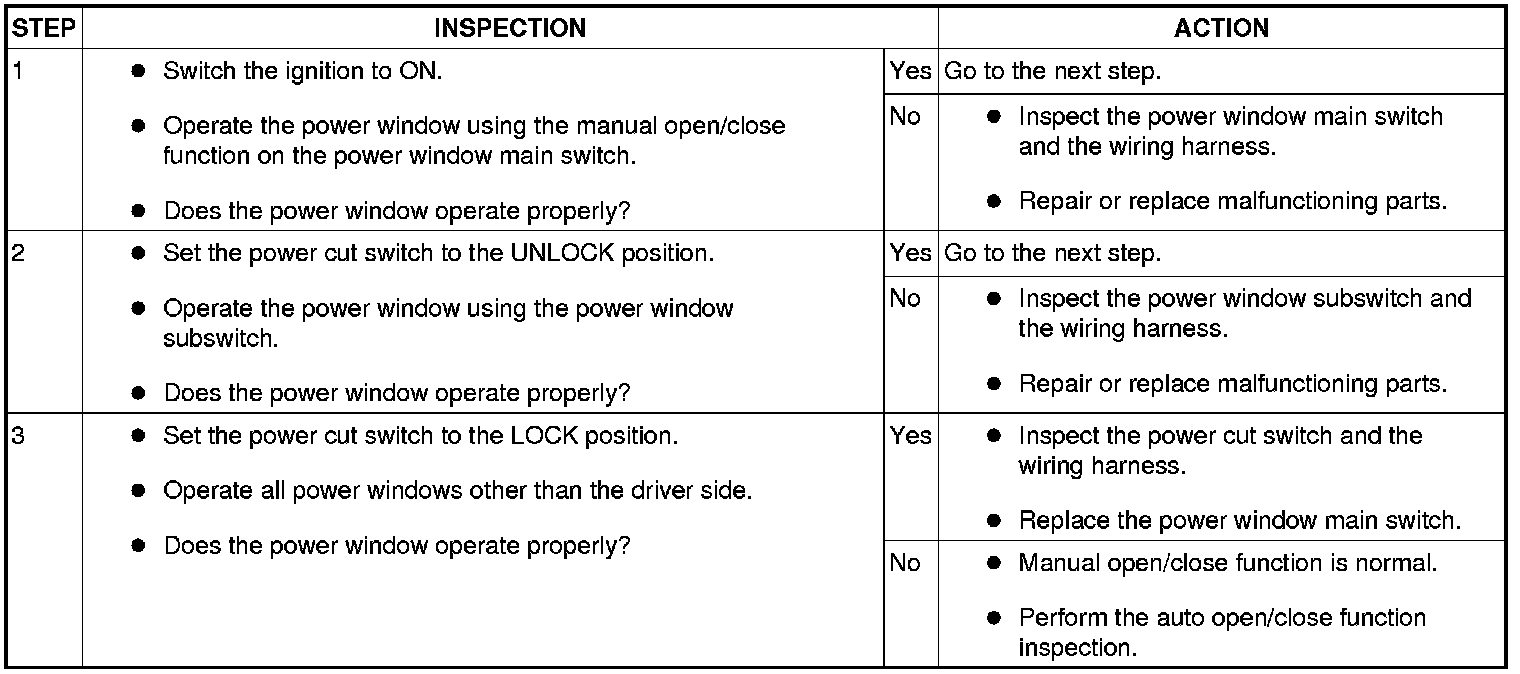

Manual Open/close Function Inspection

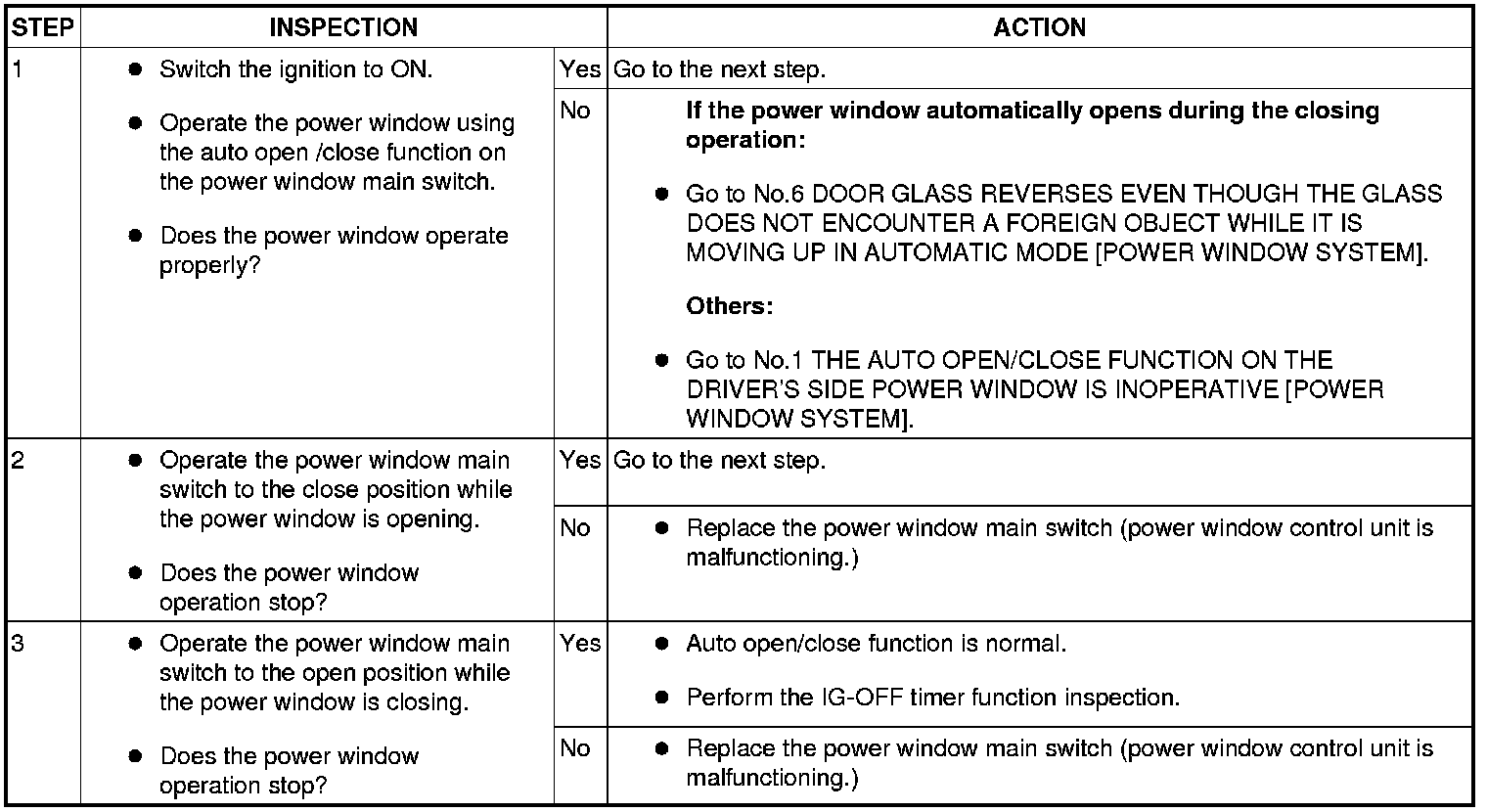

Auto Open/close Function (Driver's Side) Inspection

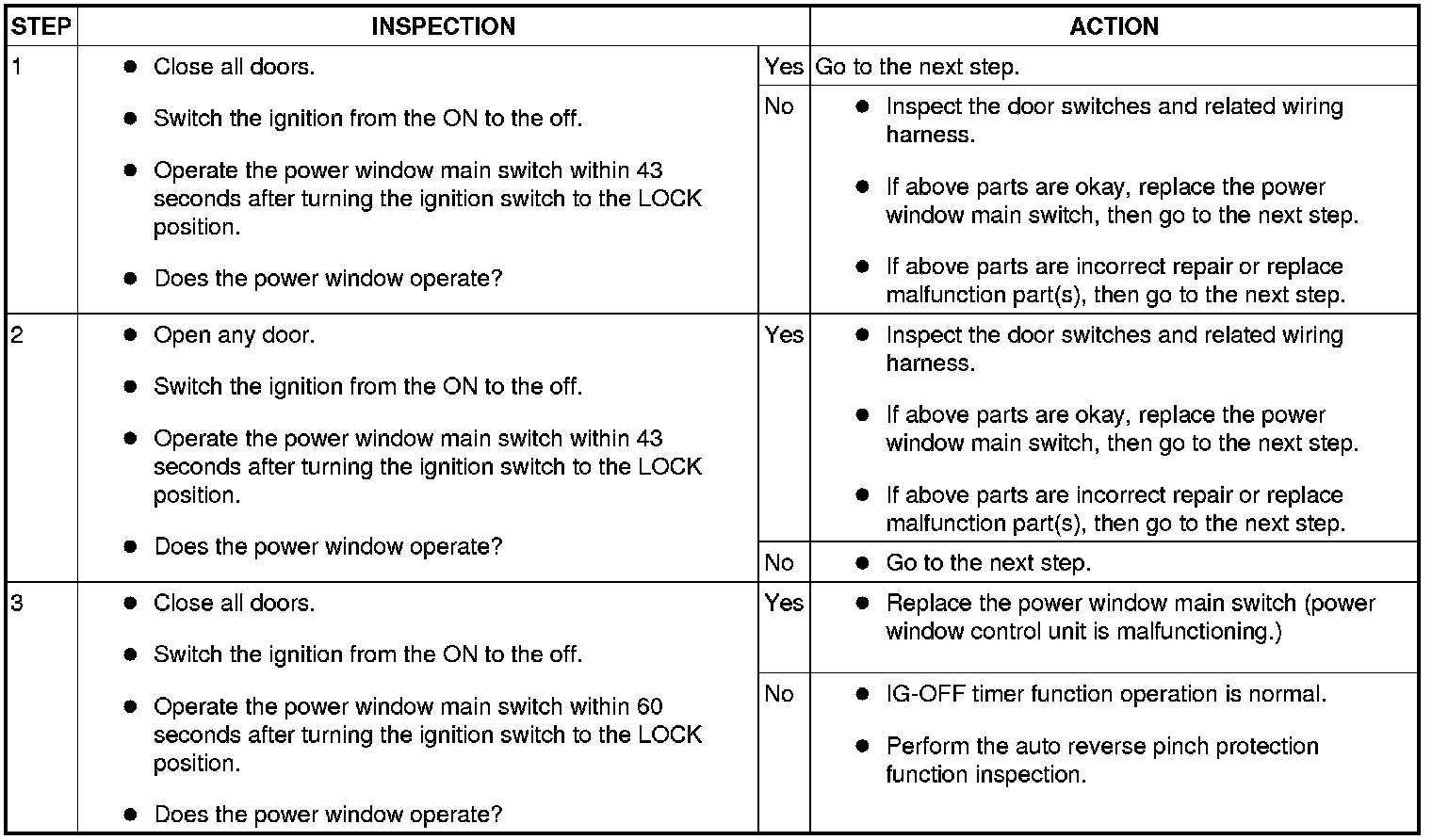

IG-OFF Timer Function Inspection

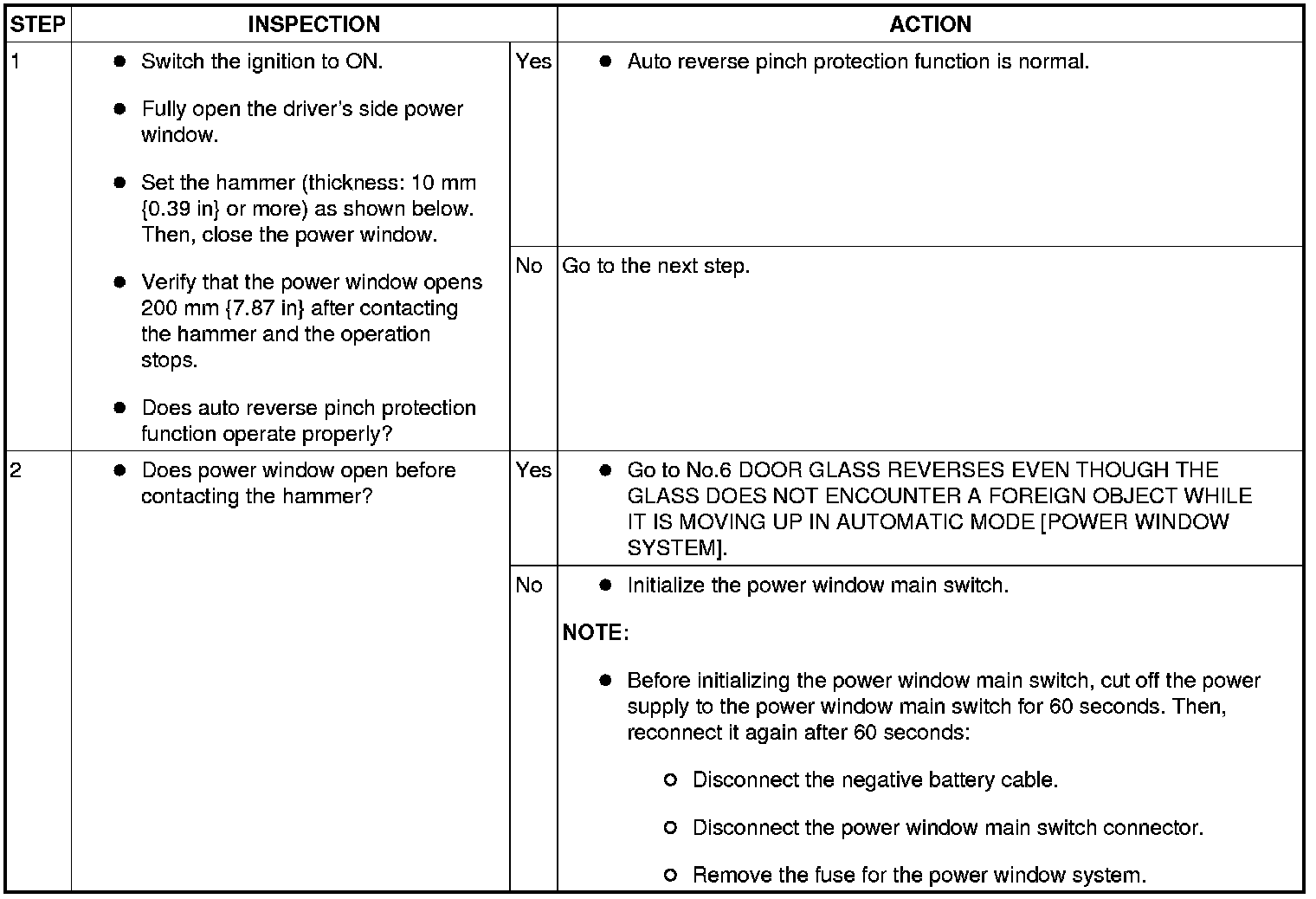

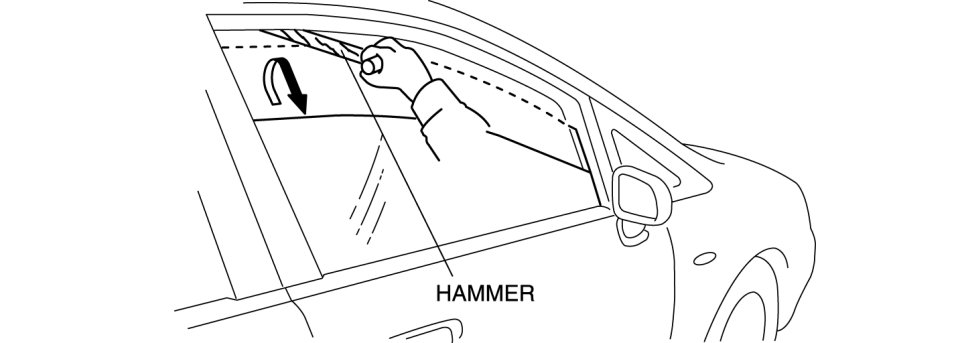

Auto Reverse Pinch Protection Function Inspection
