Overhaul

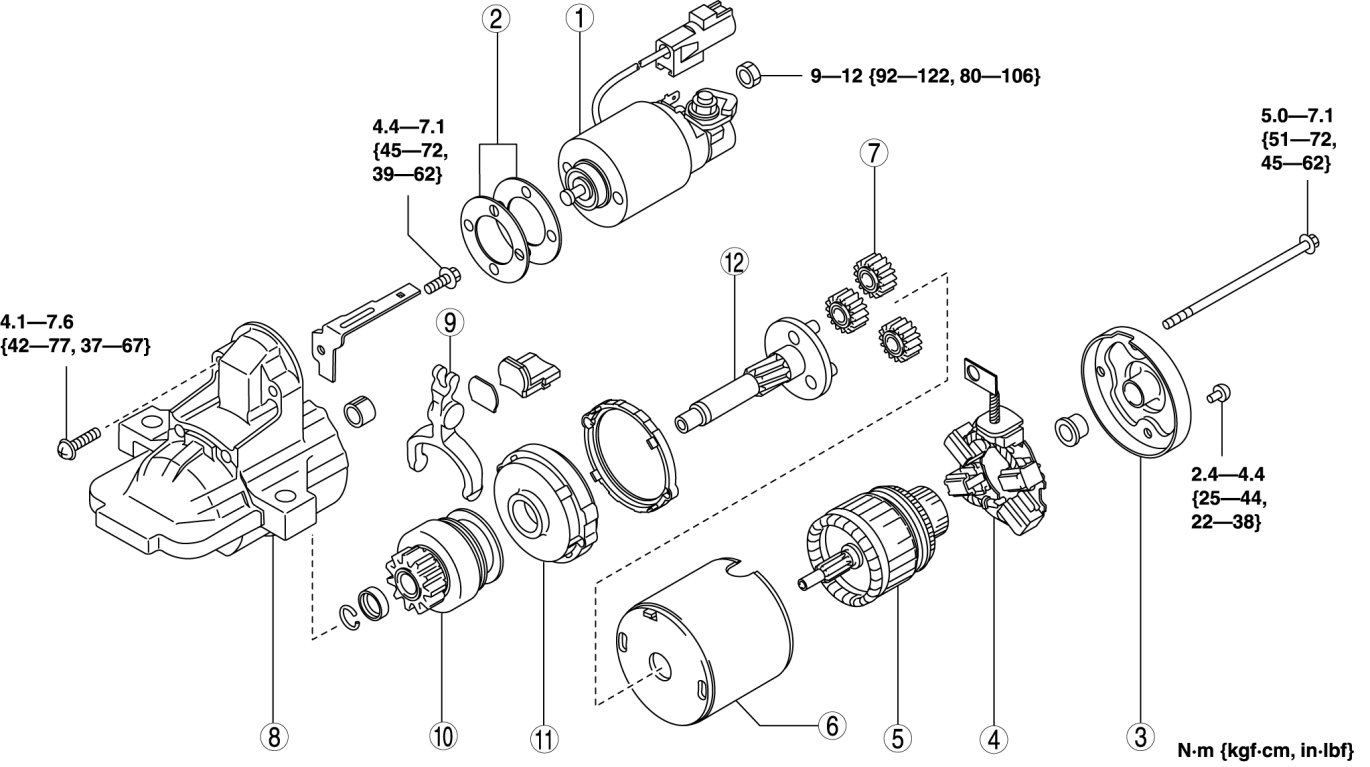

STARTER DISASSEMBLY/ASSEMBLY [LF, L5]

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.
