System Specifications

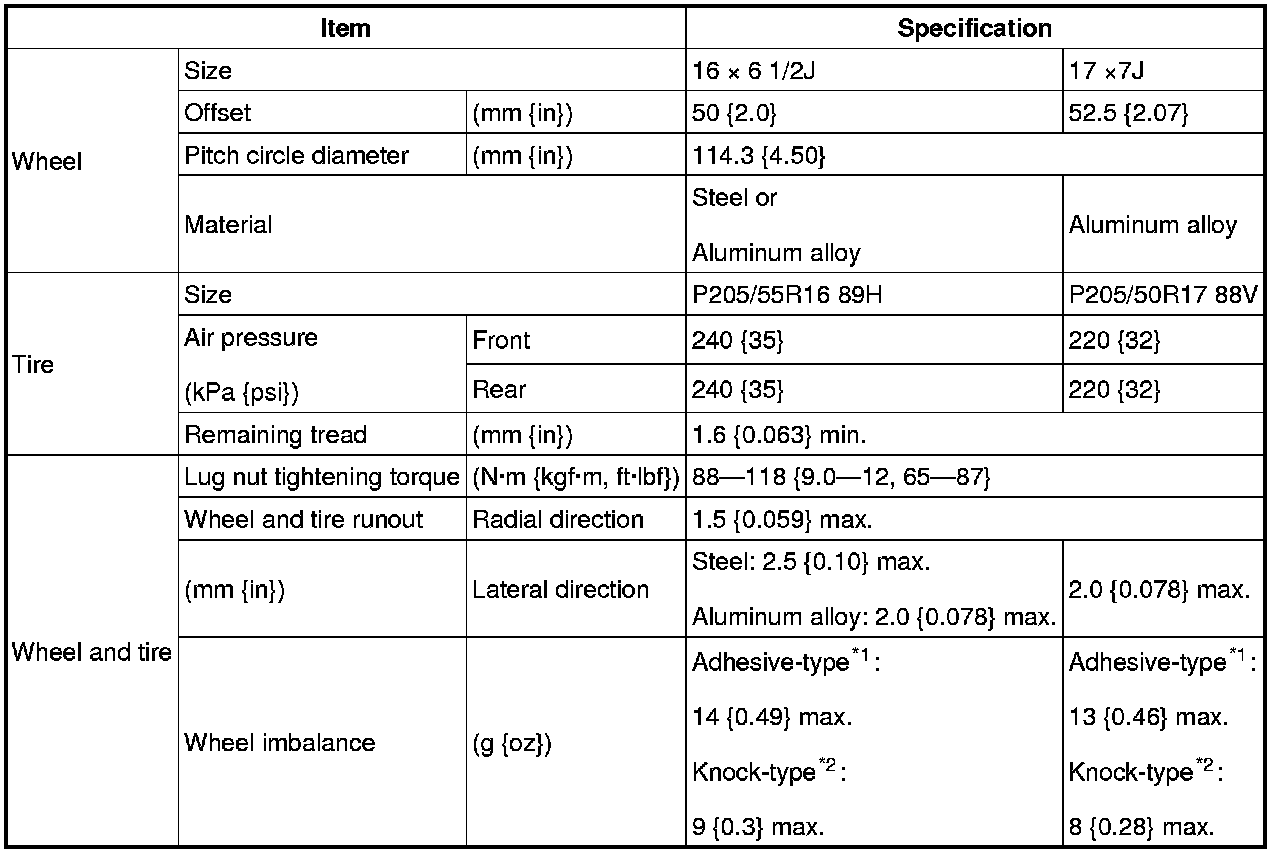

WHEEL AND TIRE SPECIFICATION

Standard tire and wheel [LF, L5]

*1
Total weight exceeds 160 g {5.64 oz}.
*2
One balance weight: 60 g {2.1 oz} max. If the total weight exceeds 100 g {3.53 oz} on one side, rebalance after moving the tire around on the rim. Do not use three or more balance weights.
Standard tire and wheel [L3 WITH TC]

*1
Total weight exceeds 160 g {5.64 oz}.
*2
One balance weight: 60 g {2.1 oz} max. If the total weight exceeds 100 g {3.53 oz} on one side, rebalance after moving the tire around on the rim. Do not use three or more balance weights.
Temporary spare tire and wheel
