Flex Plate

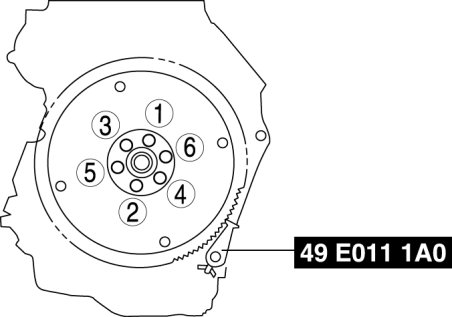

Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure.

Tightening torque 108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
