Exhaust Manifold

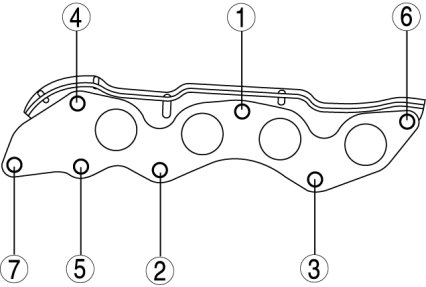

Tighten the exhaust manifold new installation nuts in the order shown in the figure.

Tightening torque 43-64 Nm {4.4-6.5 kgf-m, 32-47 ft-lbf}
