System Specifications

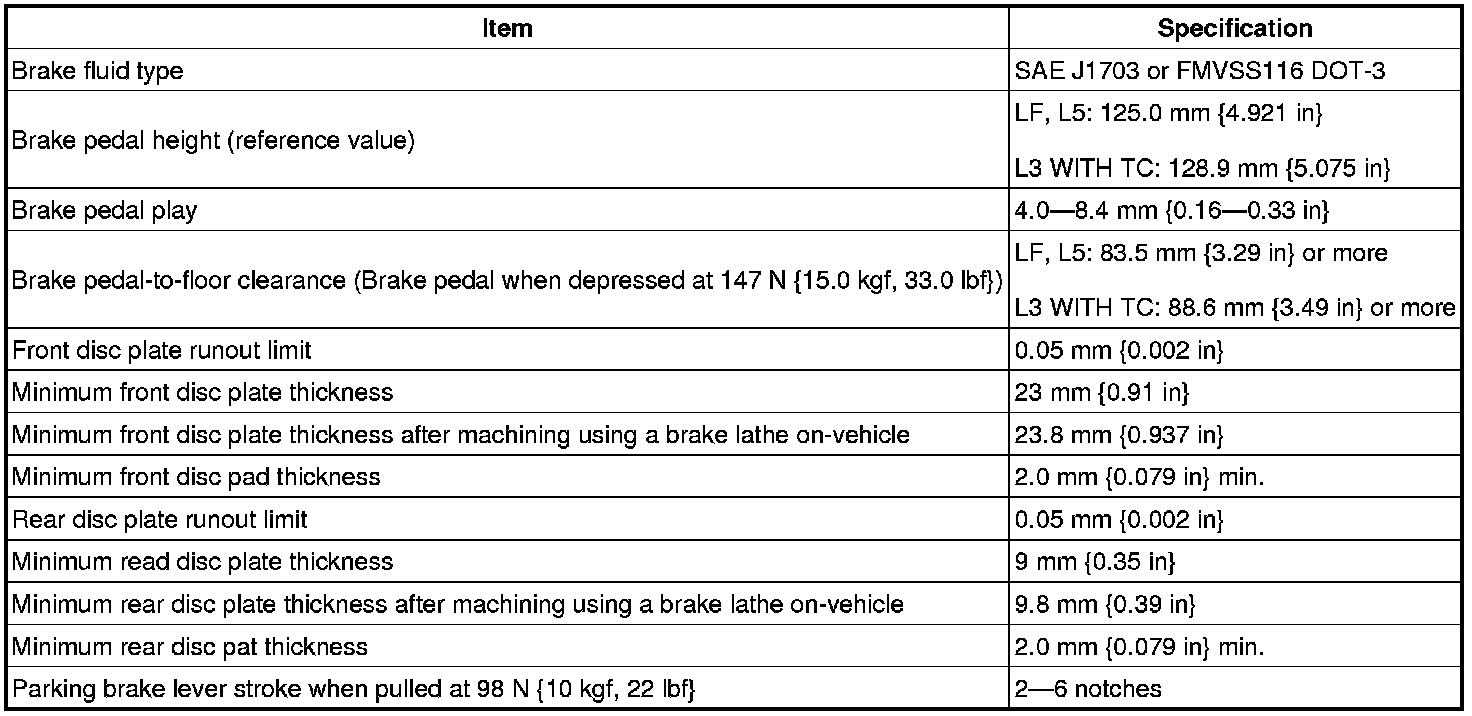

BRAKES TECHNICAL DATA





Master cylinder fluid pressure





Master cylinder fluid pressure (LF, L5)





Master cylinder fluid pressure (L3 WITH TC)
