Emission Control Systems: Locations




EMISSION SYSTEM LOCATION INDEX [LF, L5]

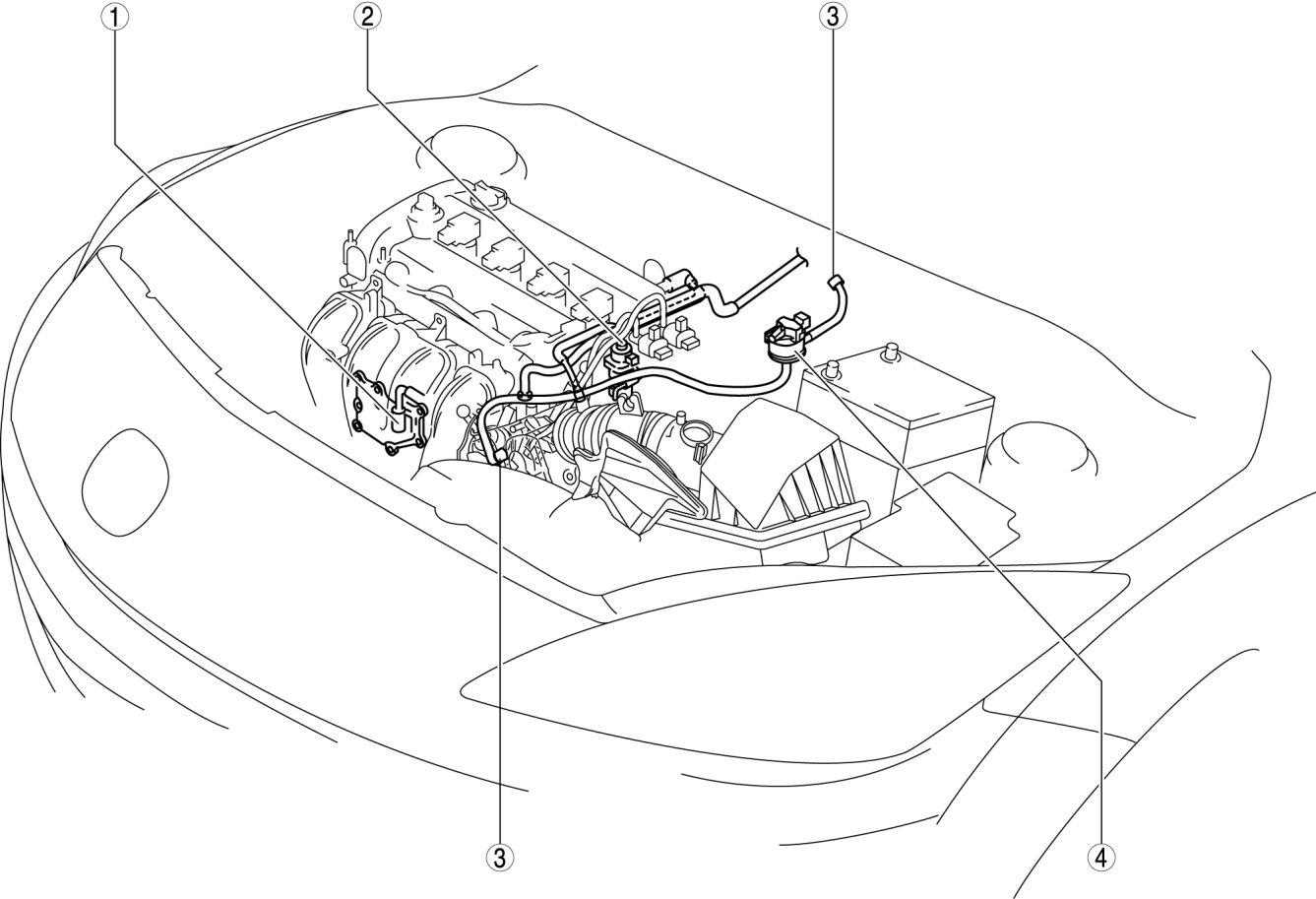

Engine Compartment Side









Exhaust System Side

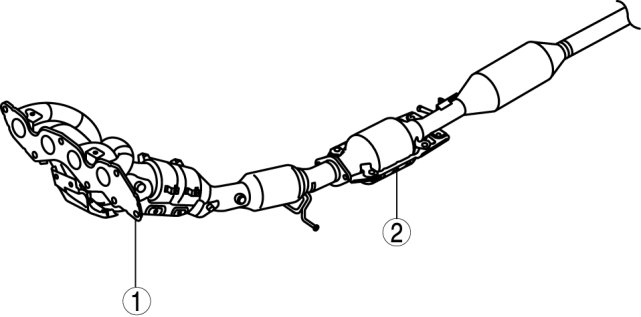

LF (California emission regulation applicable model)

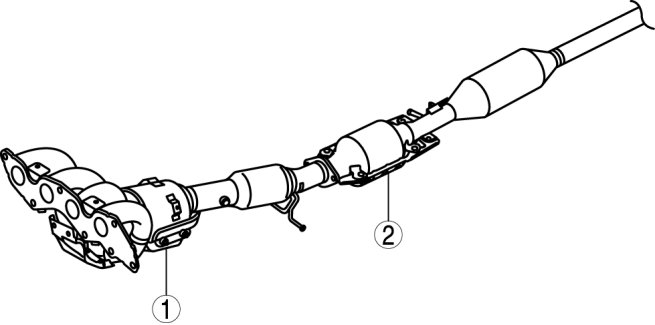

LF (Except for California emission regulation applicable model)

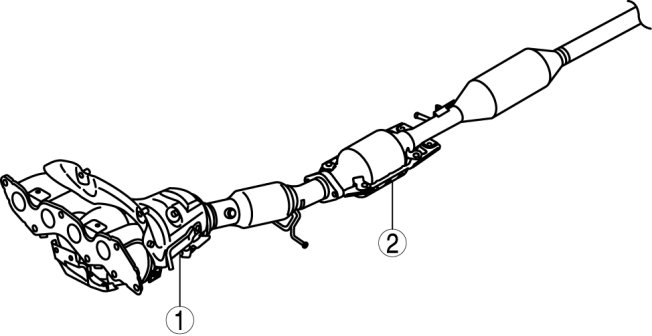

L5

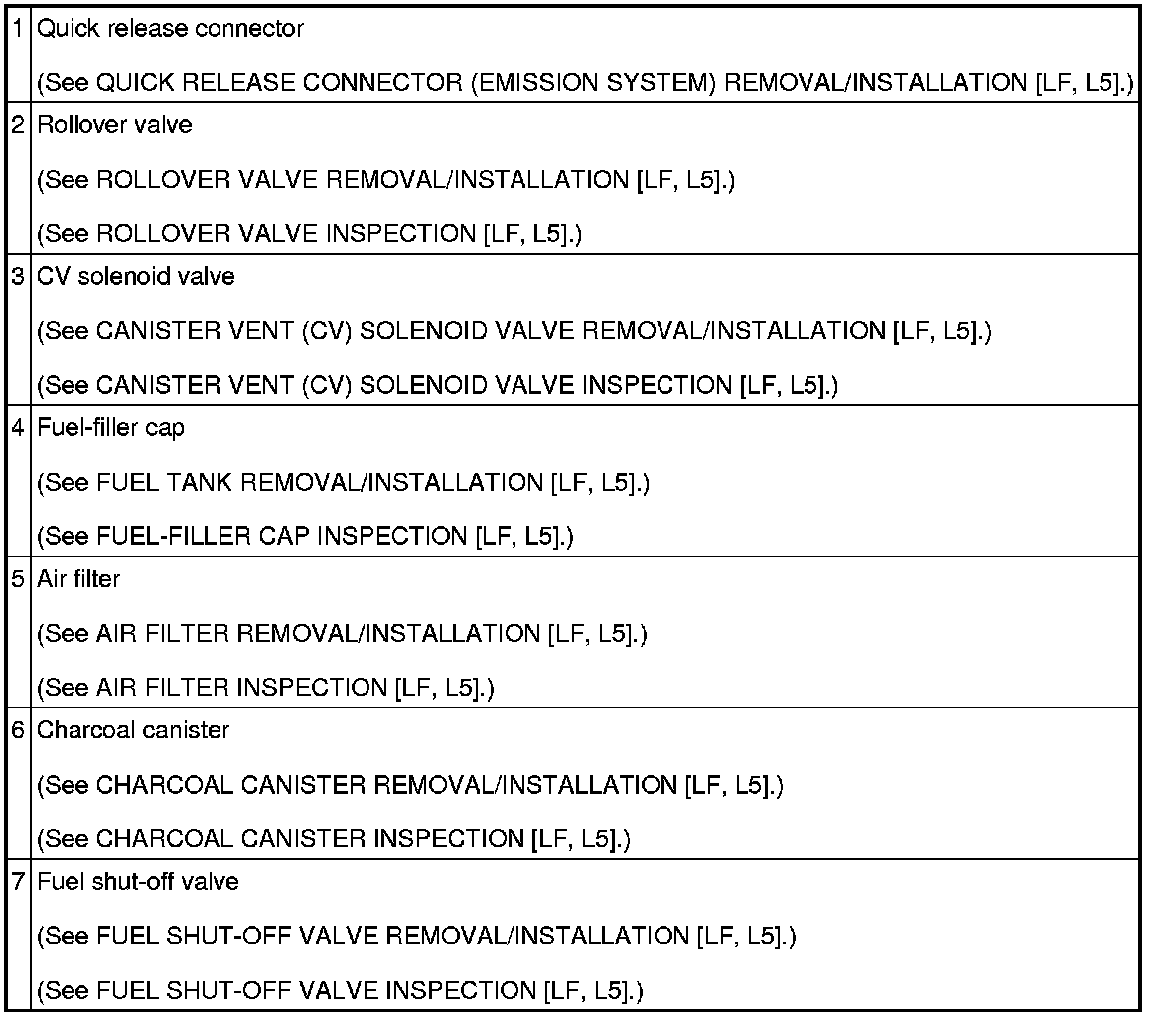

Fuel Tank Side

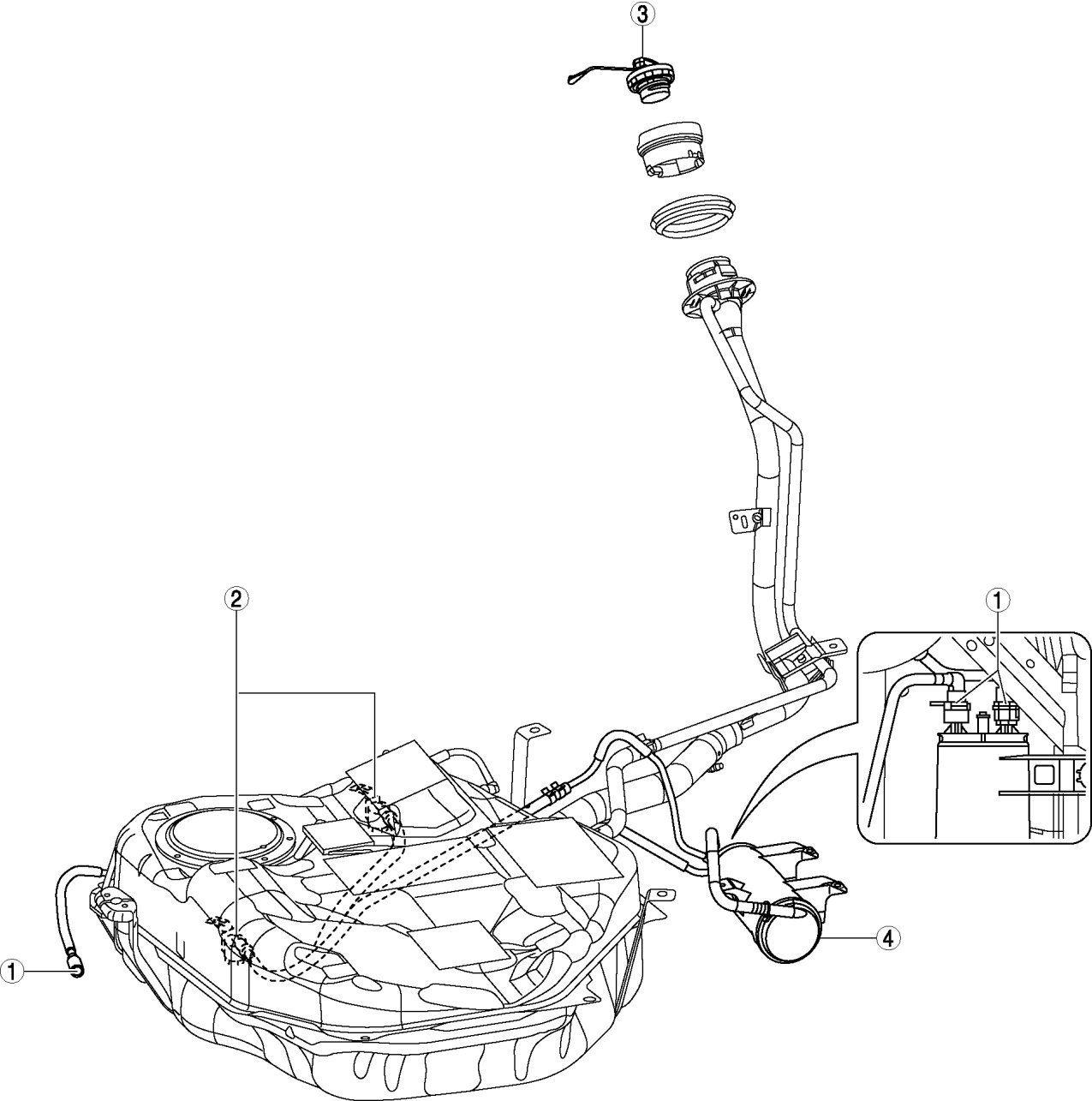

Fuel filter (high-pressure) is a built-in type in fuel pump unit

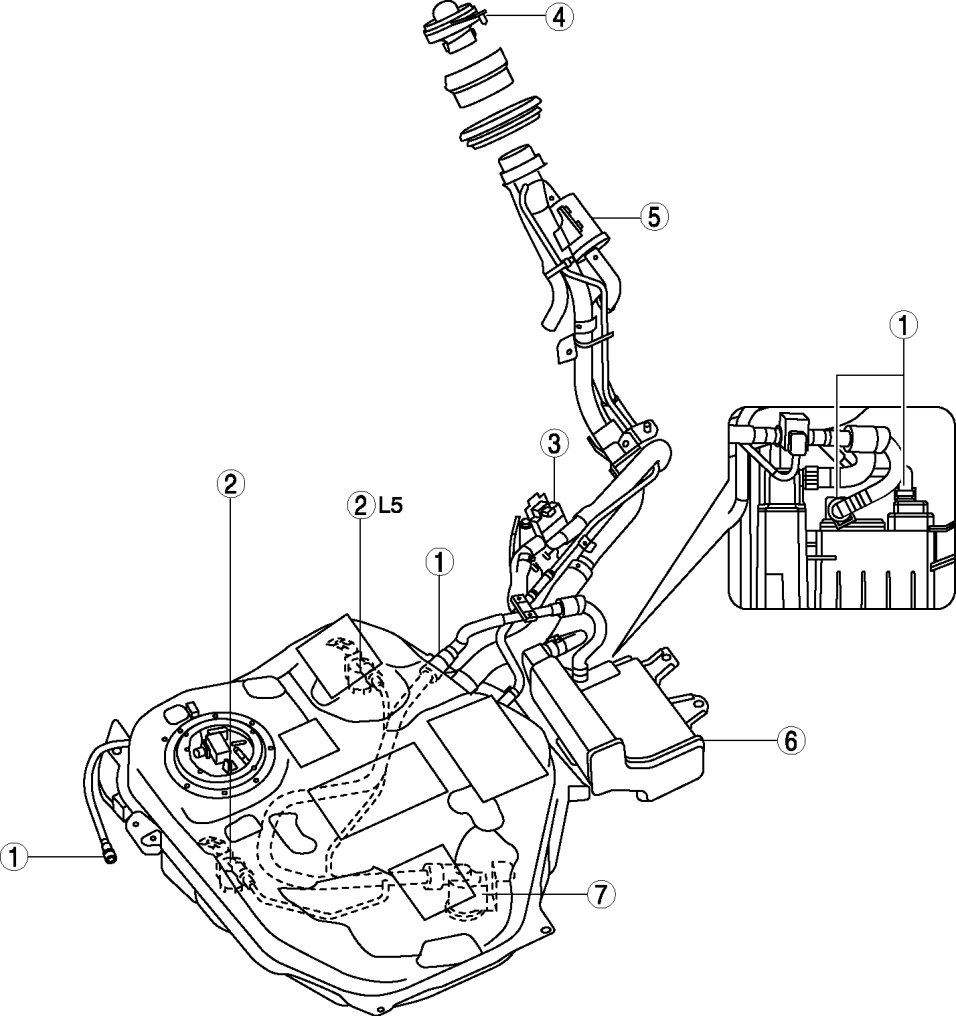

Fuel filter (high-pressure) is not a built-in type in fuel pump unit
