Blower Motor Resistor: Service and Repair

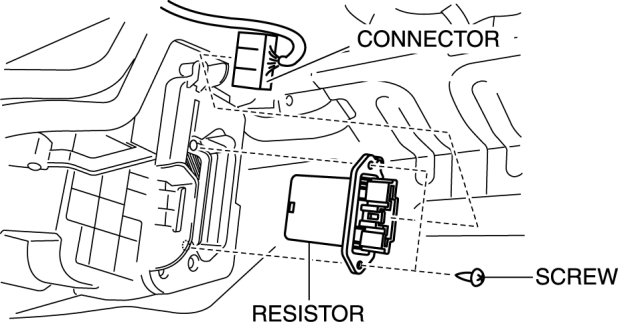

RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Disconnect the connector.

3. Remove the screw.

4. Remove the resistor.

5. Install in the reverse order of removal.
