Power Door Lock Switch: Testing and Inspection




DOOR LOCK SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

4. Remove the front inner handle. Service and Repair

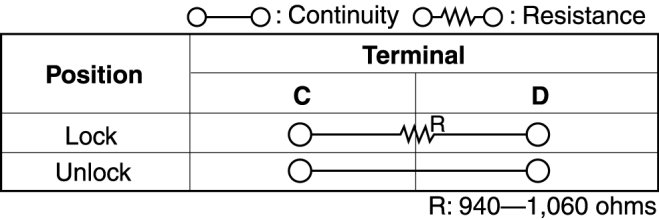

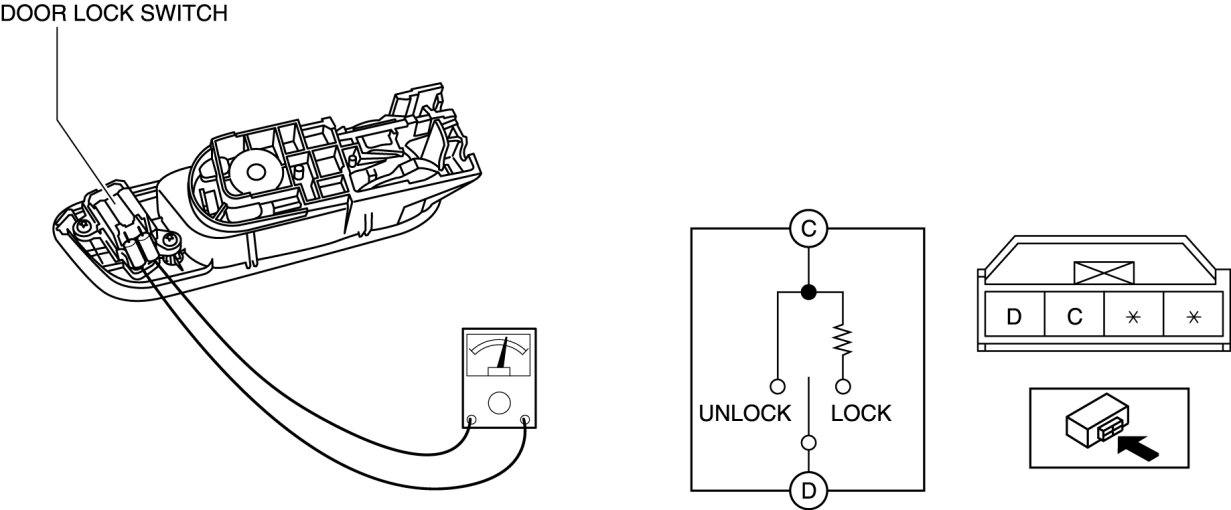

5. Inspect for continuity between the door lock switch terminals using an ohmmeter.






- If not as indicated in the table, replace the door lock switch.
