Power Door Lock Switch: Service and Repair

DOOR LOCK SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

4. Remove the front inner handle. Service and Repair

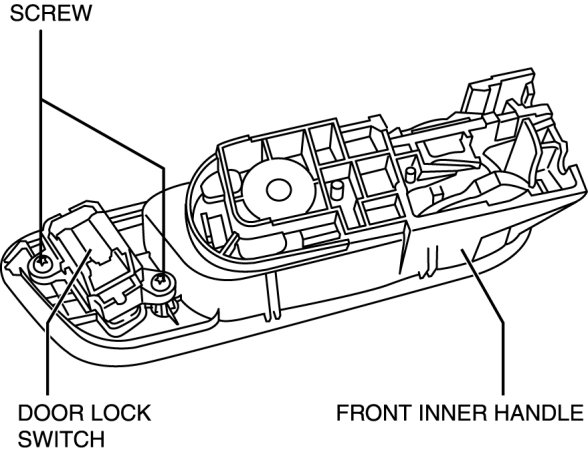

5. Remove the screws, then remove the door lock switch.

6. Install in the reverse order of removal.
