Front Fender Liner: Service and Repair

FRONT MUDGUARD REMOVAL/INSTALLATION

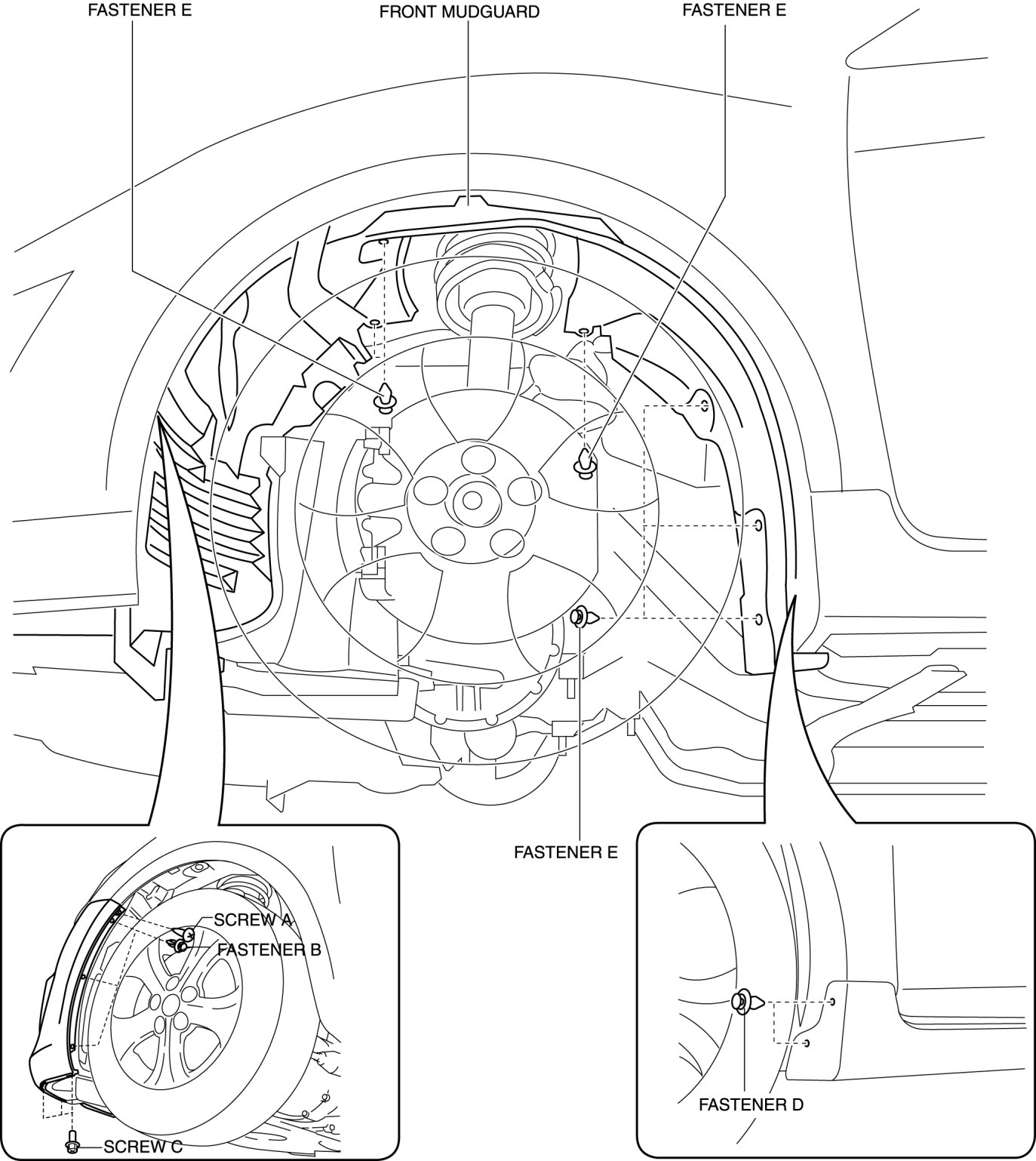

1. Remove screw A, fasteners B, screws C, fasteners D, and E.

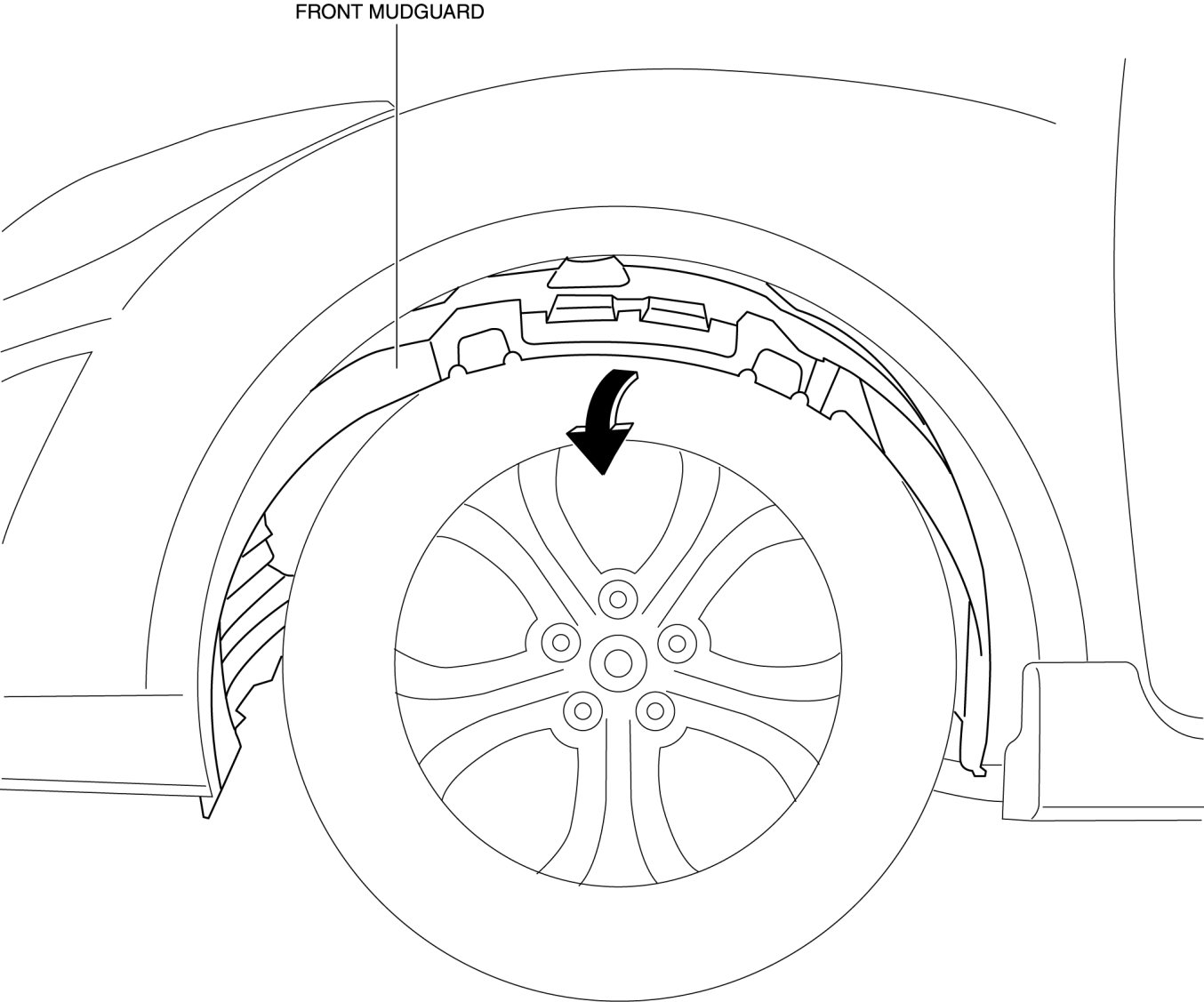

2. Remove the front mudguard in the direction of the arrow shown in the figure.






3. Install in the reverse order of removal.
