System Diagram

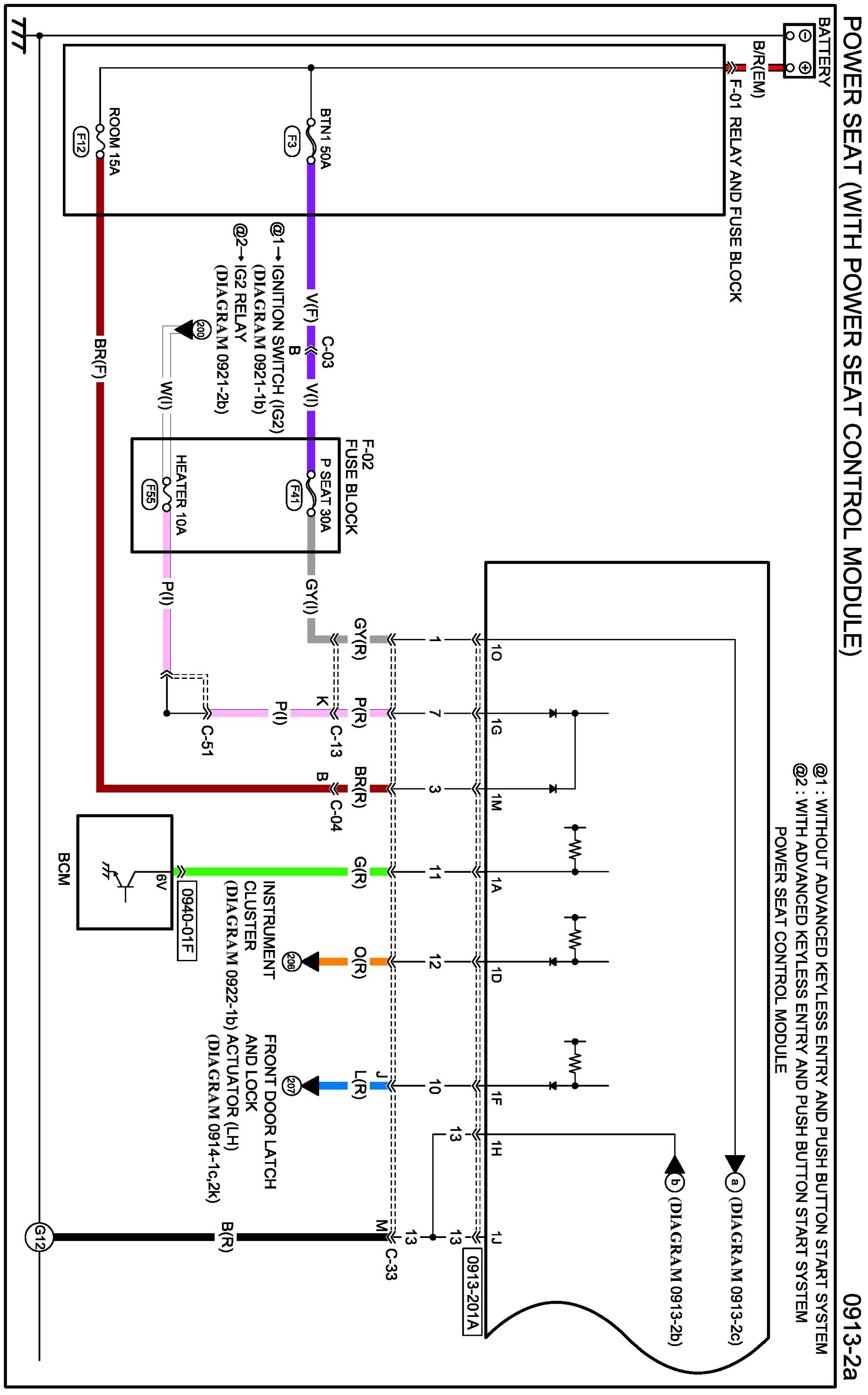

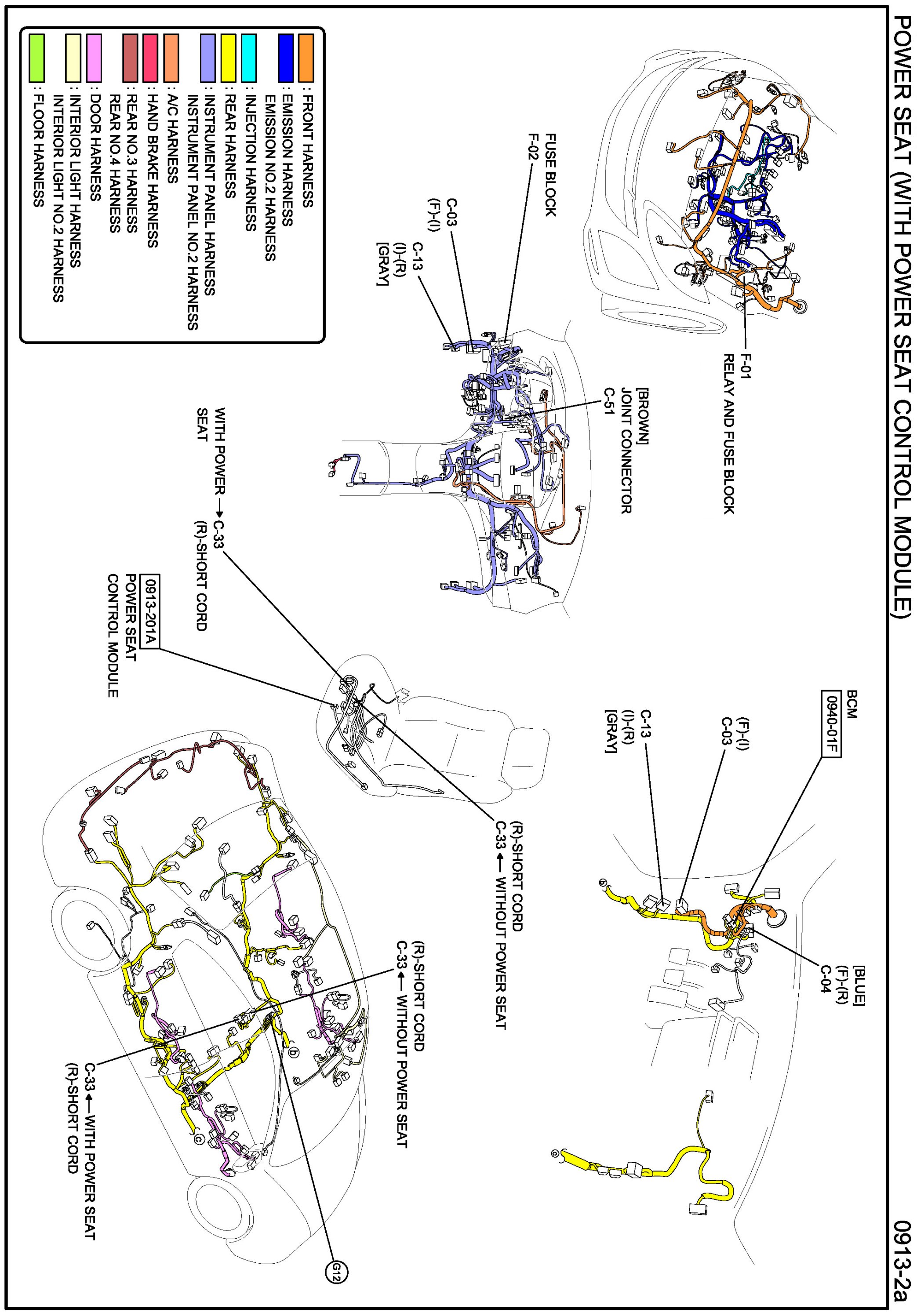

Diagram 0913-2a:

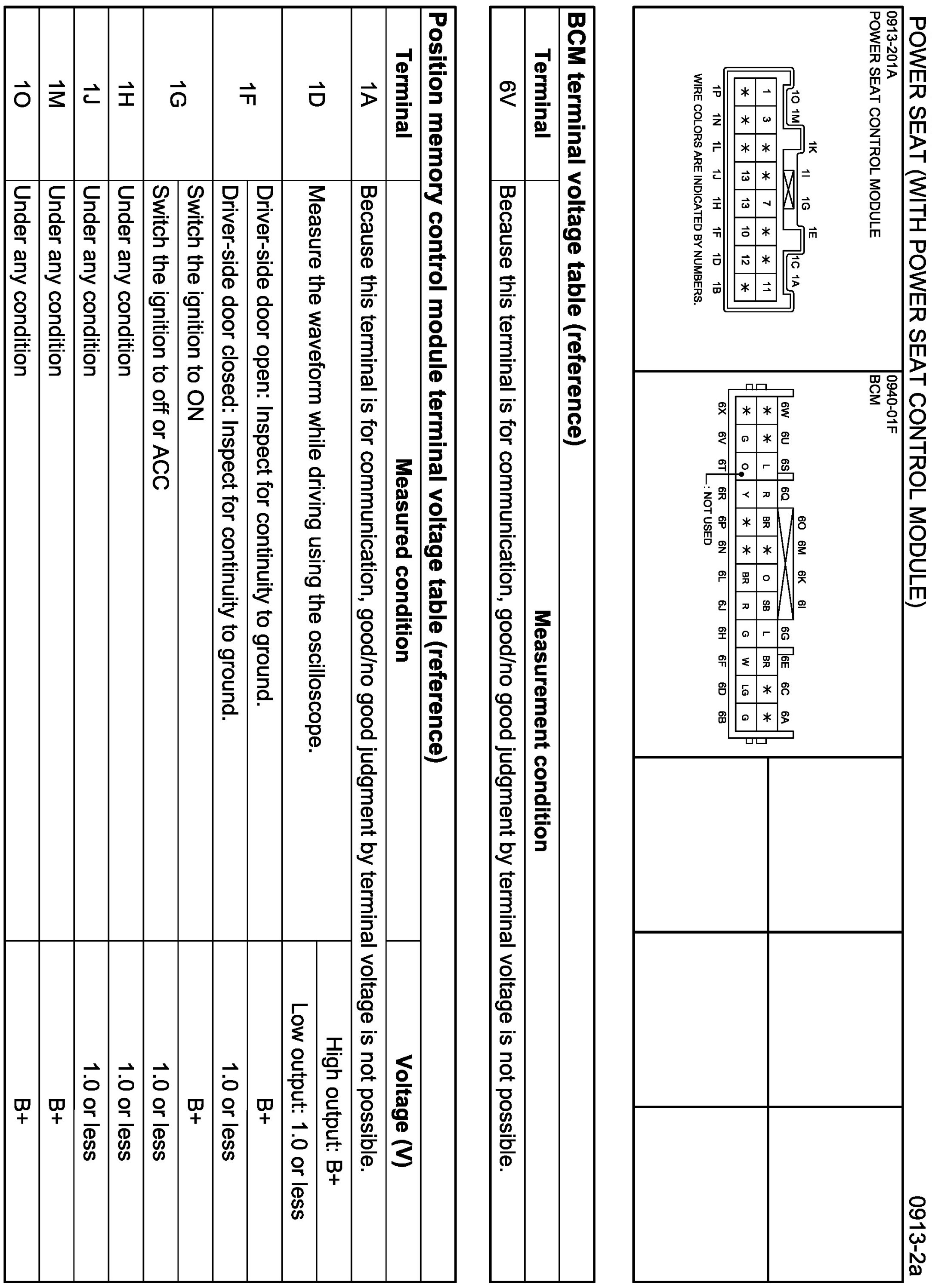

Connectors 0913-2a:




Routing View 0913-2a:

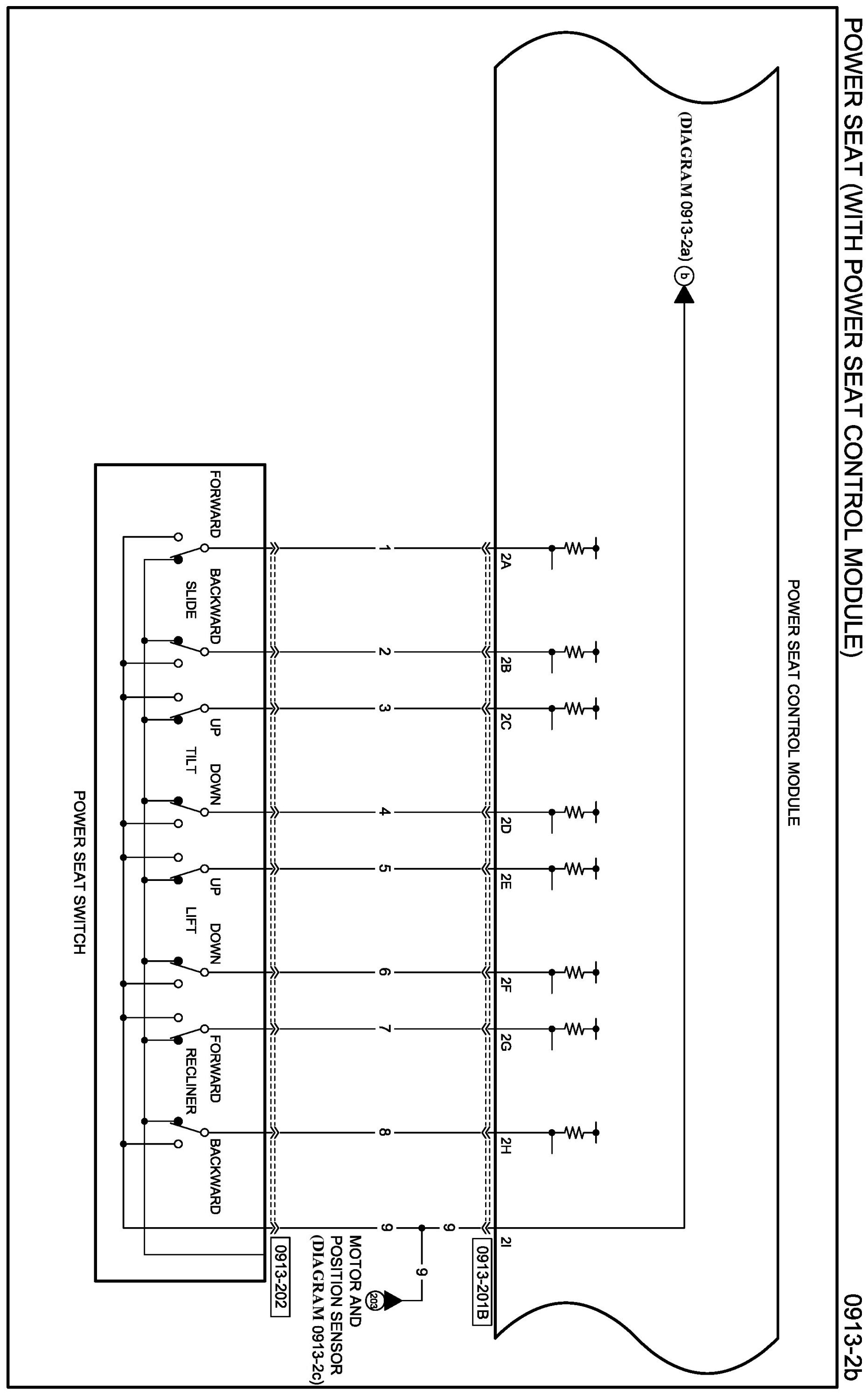

Diagram 0913-2b:

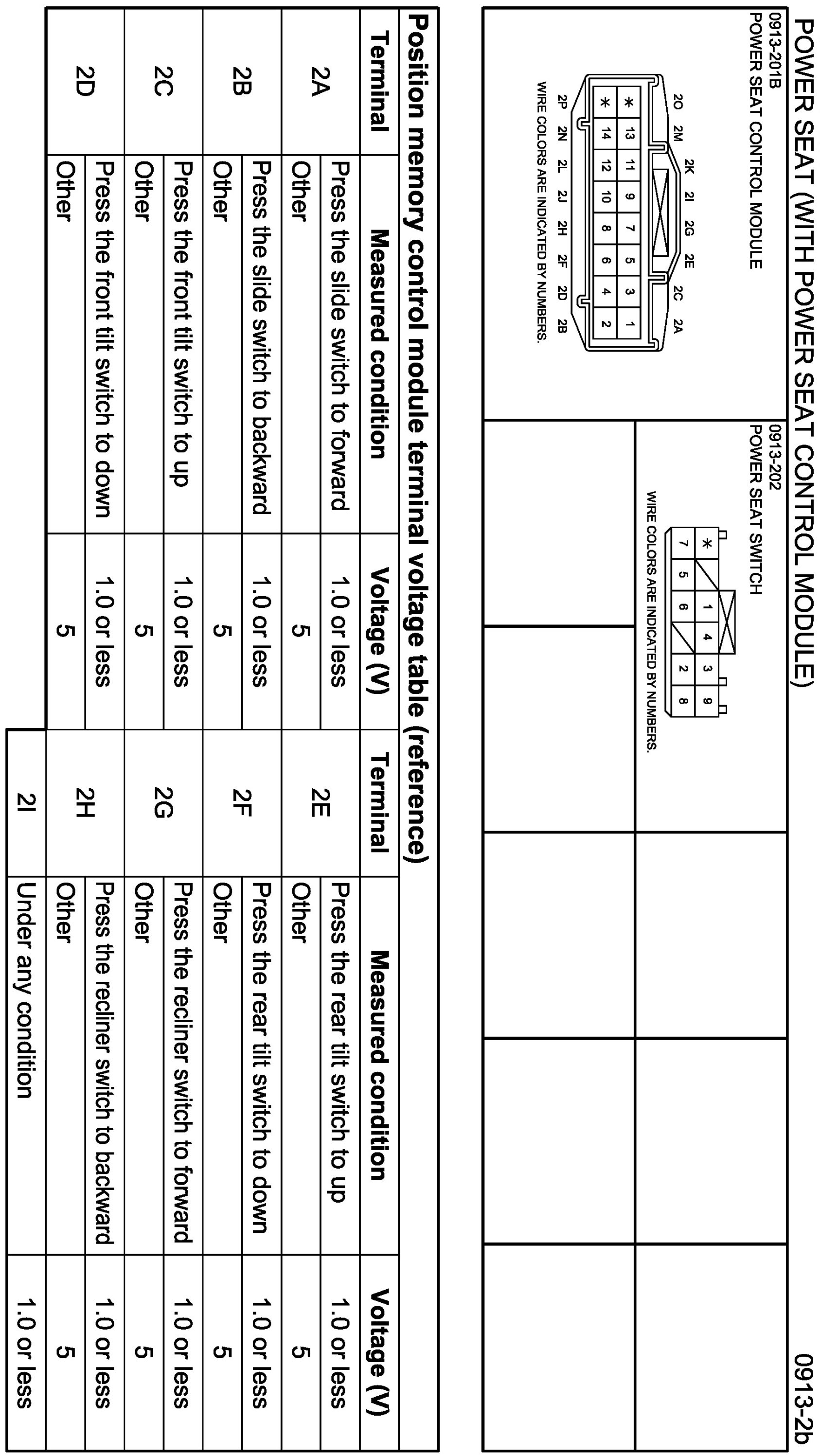

Connectors 0913-2b:

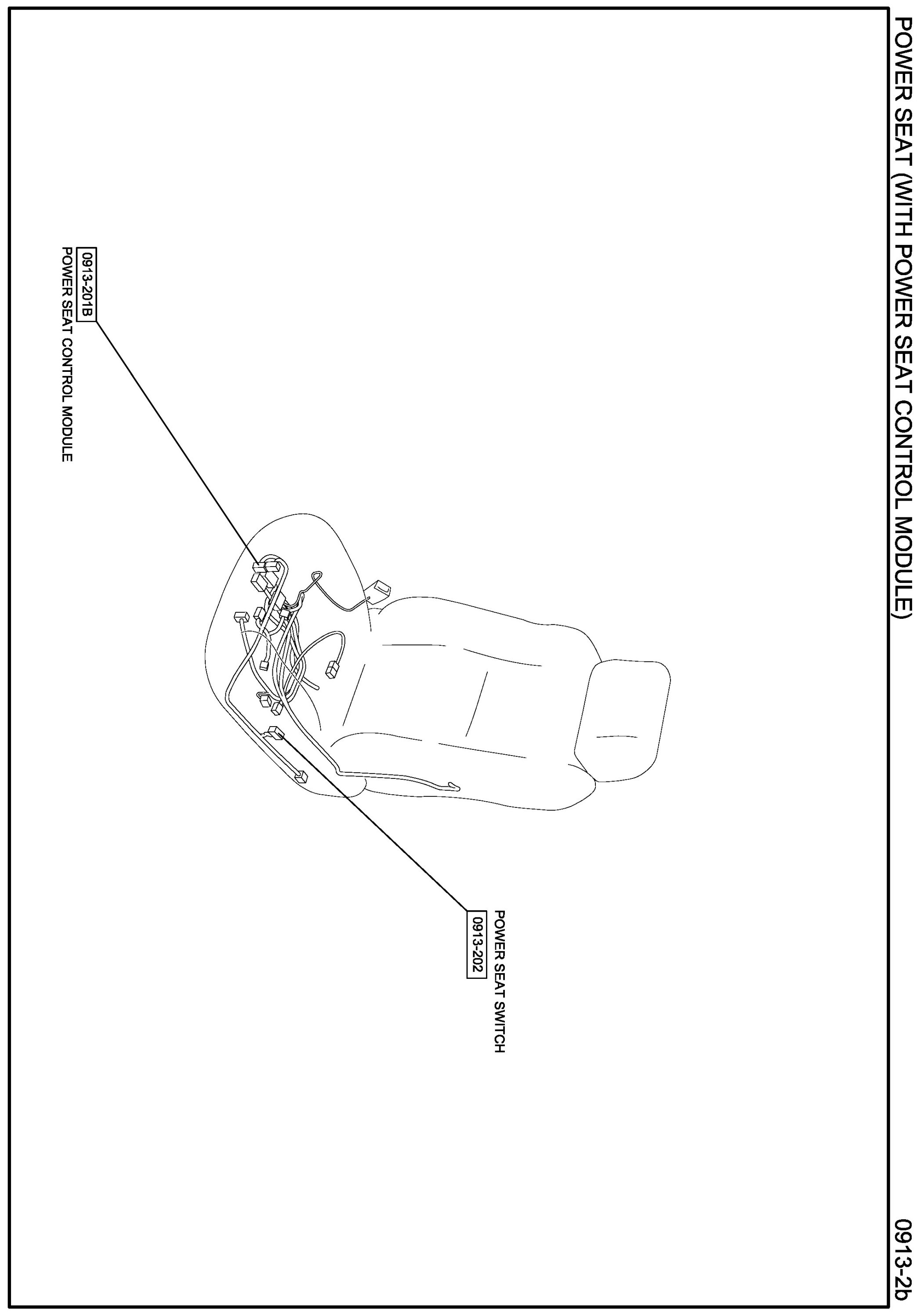

Routing View 0913-2b:

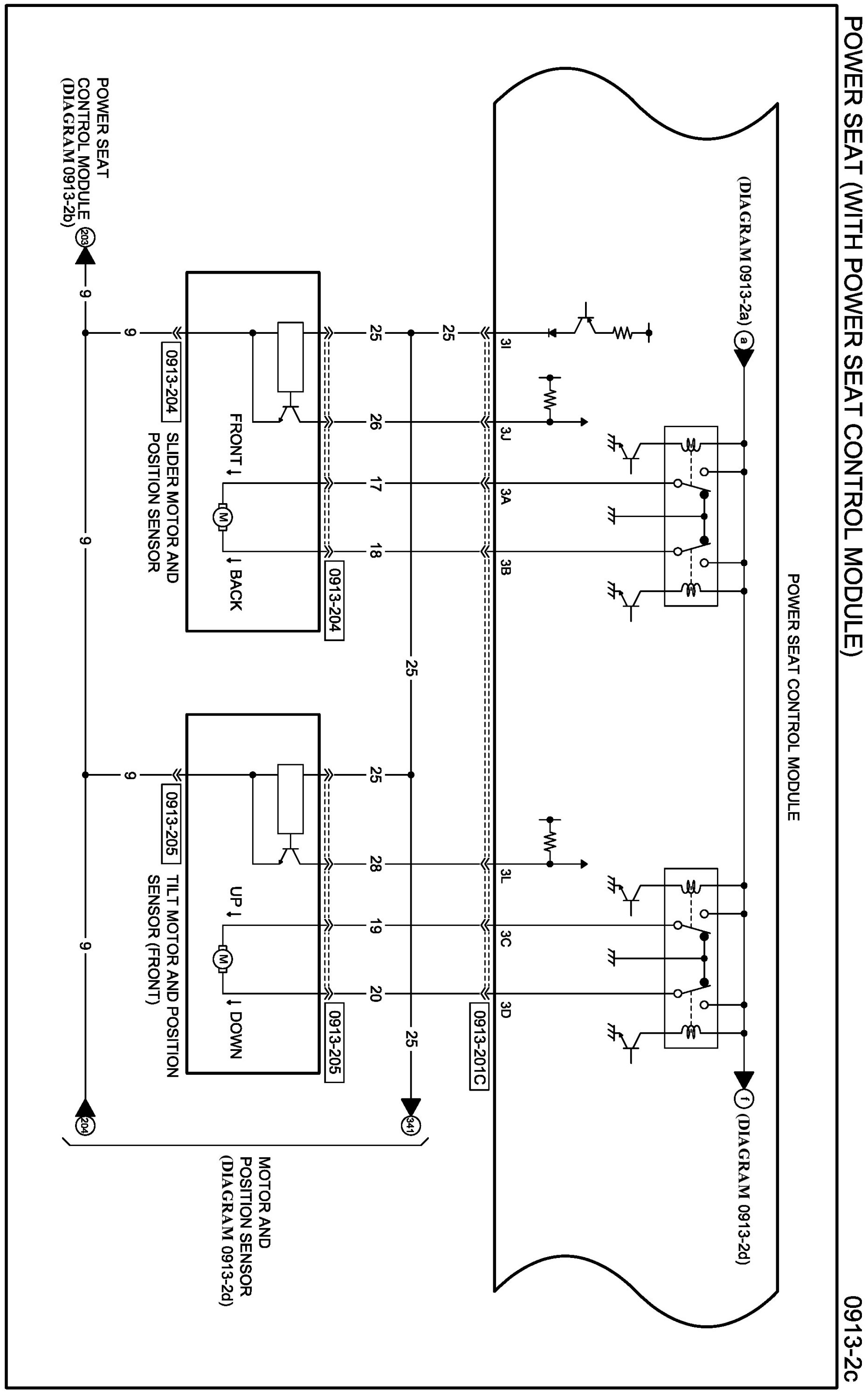

Diagram 0913-2c:

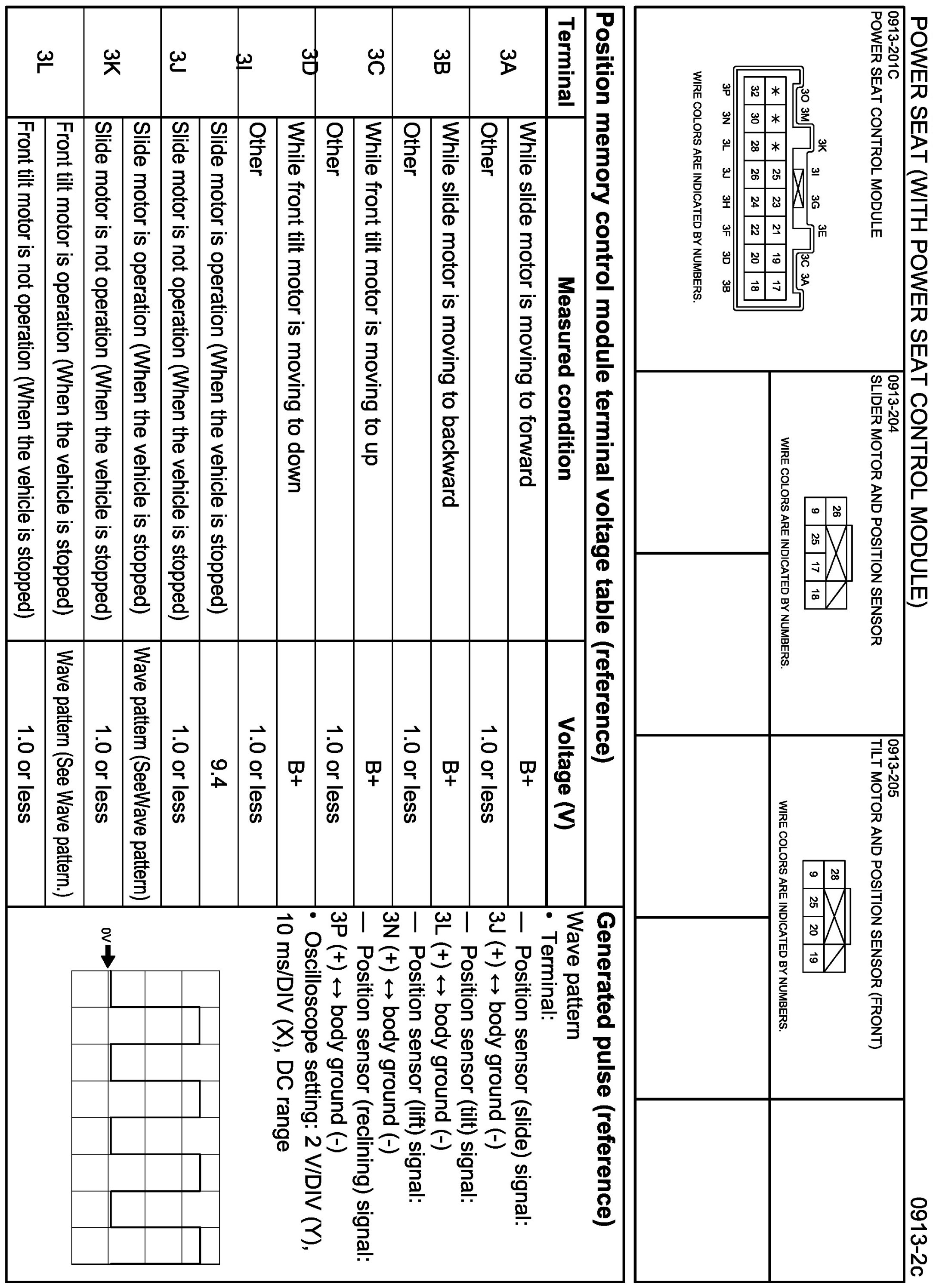

Connectors 0913-2c:

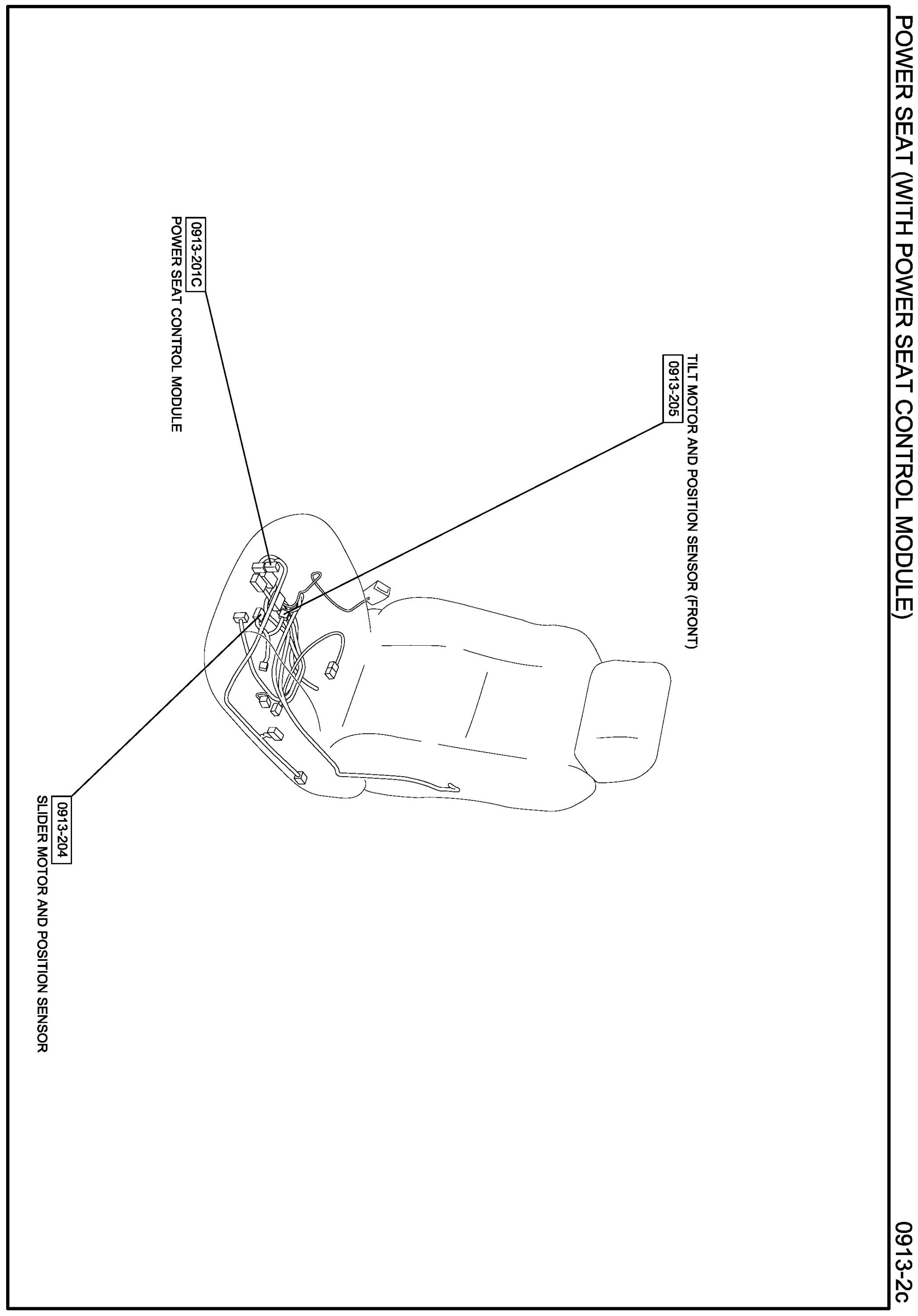

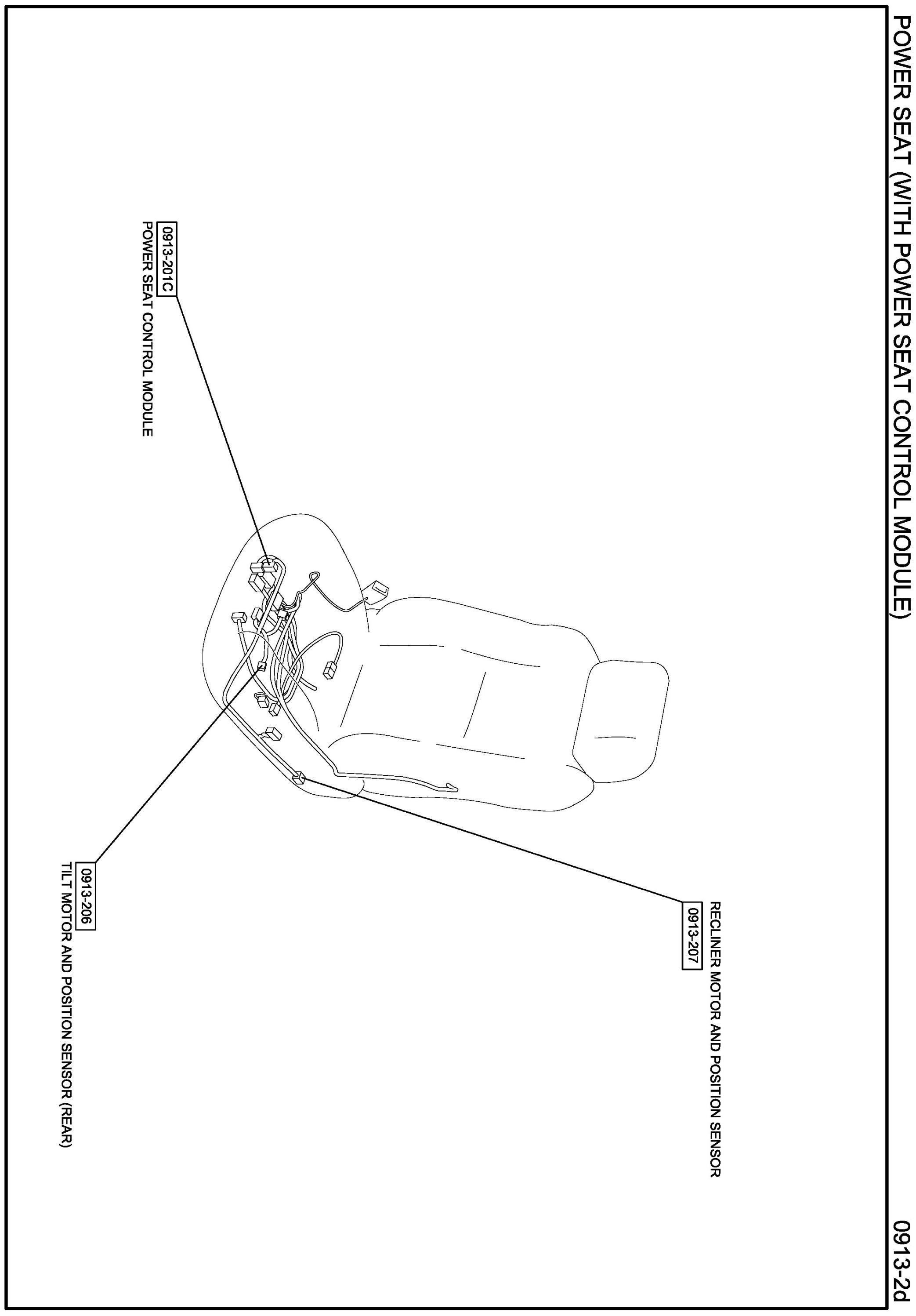

Routing View 0913-2c:

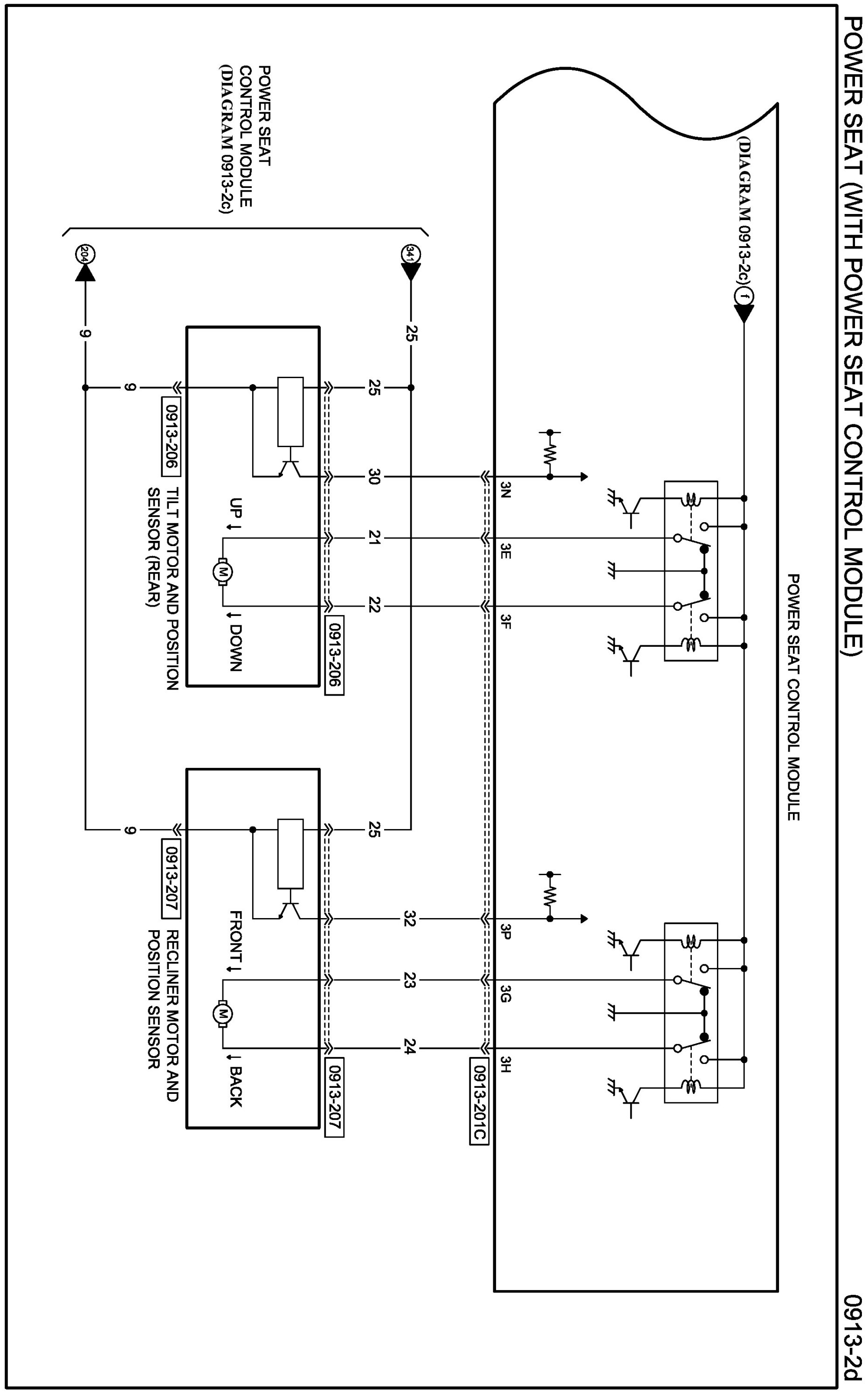

Diagram 0913-2d:

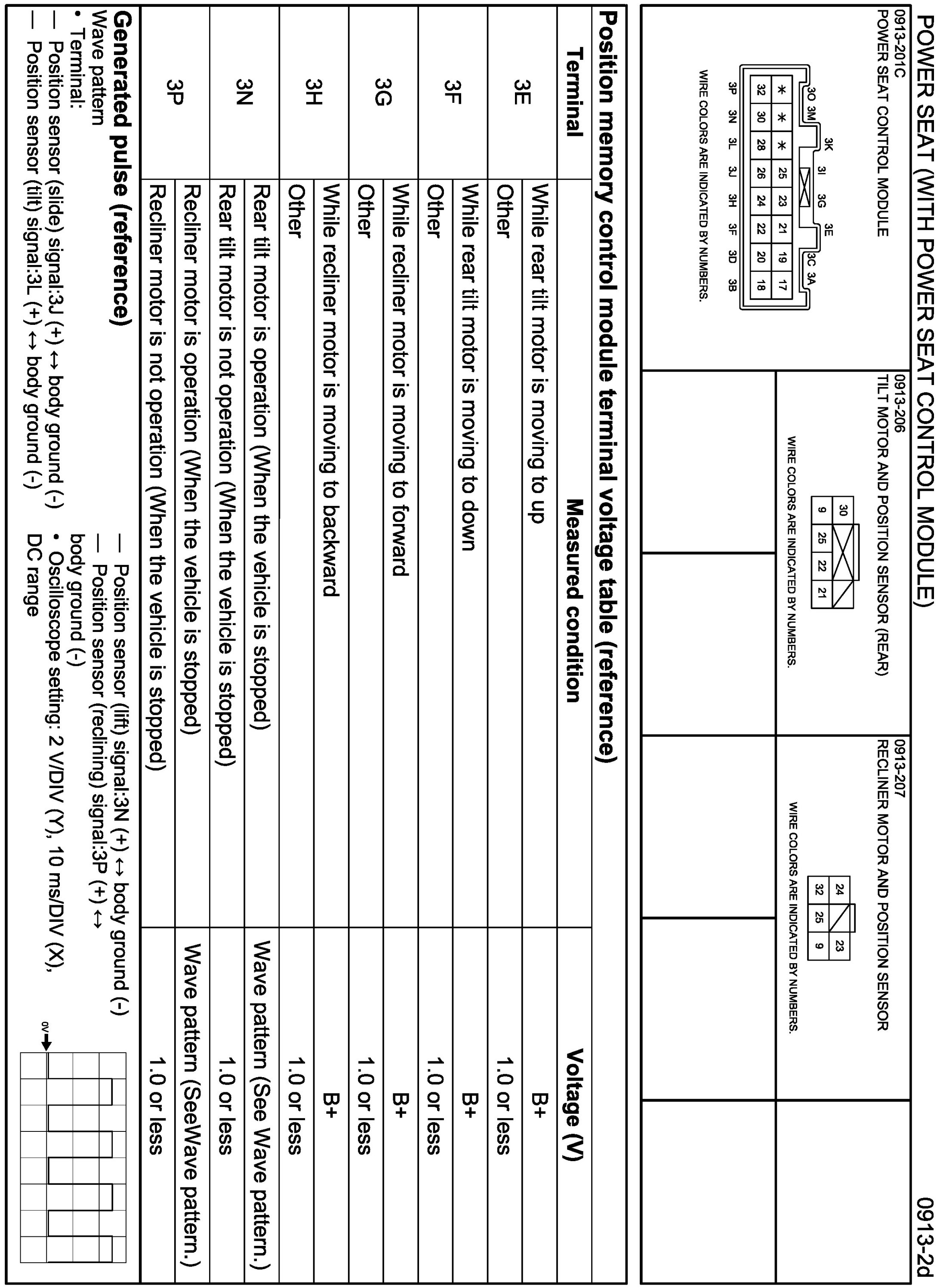

Connectors 0913-2d:




Routing View 0913-2d:
