Manual Transaxle Removal/Installation: Notes

Remove the battery and battery tray and battery bracket. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5] .)
Remove the wheels and tires. (See GENERAL PROCEDURES (FRONT AND REAR AXLES) .)
Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the EGR pipe installation bolt (intake manifold side). (See EGR PIPE REMOVAL/INSTALLATION .)

Fig 1: Removing EGR Pipe Installation Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Suspend the EGR pipe (intake manifold side) with a cable in place out of the way.

Fig 2: Identifying EGR Pipe (Intake Manifold Side)
Courtesy of MAZDA MOTORS CORP.
Drain the transaxle oil. (See TRANSAXLE OIL REPLACEMENT .)
Remove in the order indicated in the table in Fig 3.
Install in the reverse order of removal.
Add the specified amount of specified transaxle oil. (See TRANSAXLE OIL REPLACEMENT .)
NOTE:
- If the transaxle is overhauled and installed to the vehicle, perform the "INSPECTION AFTER TRANSAXLE INSTALLATION" and verify that there is no abnormality. (See INSPECTION AFTER TRANSAXLE INSTALLATION .)

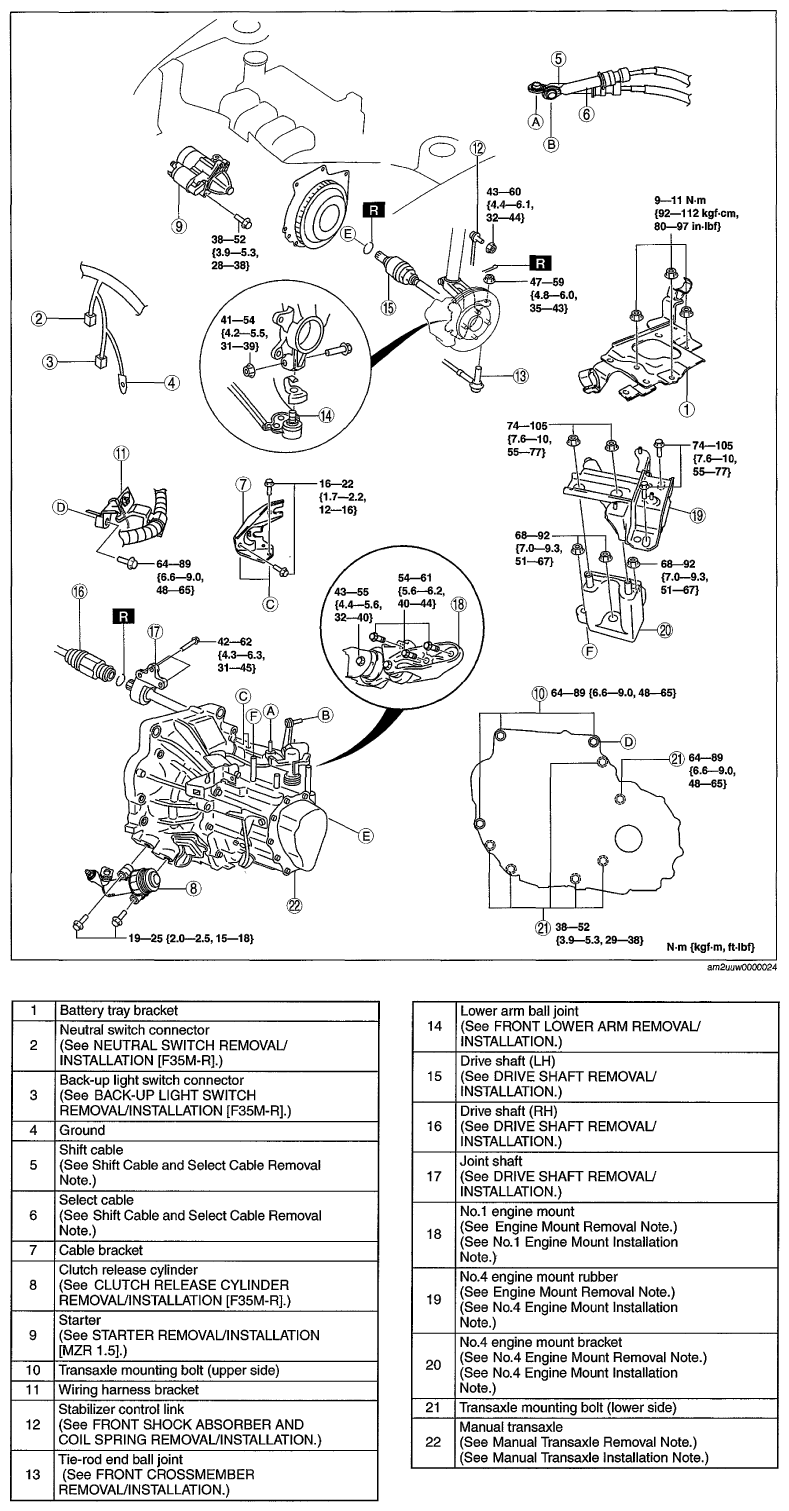

Fig 3: Exploded View Of Manual Transaxle Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.
