Driver side

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the front buckle connector clip from the seat.

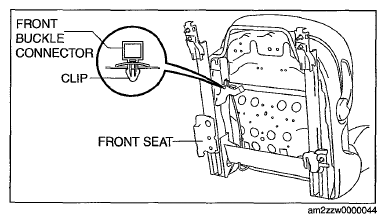

    Fig 1: Identifying Front Buckle Connector, Front Seat And Clip
    G06941654Courtesy of MAZDA MOTORS CORP.
  5. Remove the clips in the positions shown in the figure.
  6. Remove the bolt.
  7. Remove the front buckle.
  8. Install in the reverse order of removal.

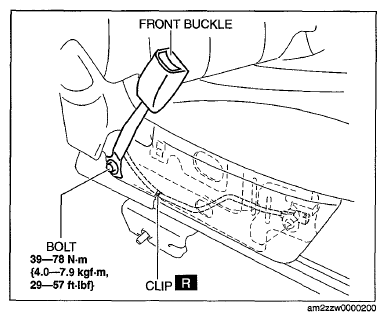

    Fig 2: Front Buckle, Clip And Bolt With Torque Specifications
    G06941655Courtesy of MAZDA MOTORS CORP.
