System Specifications

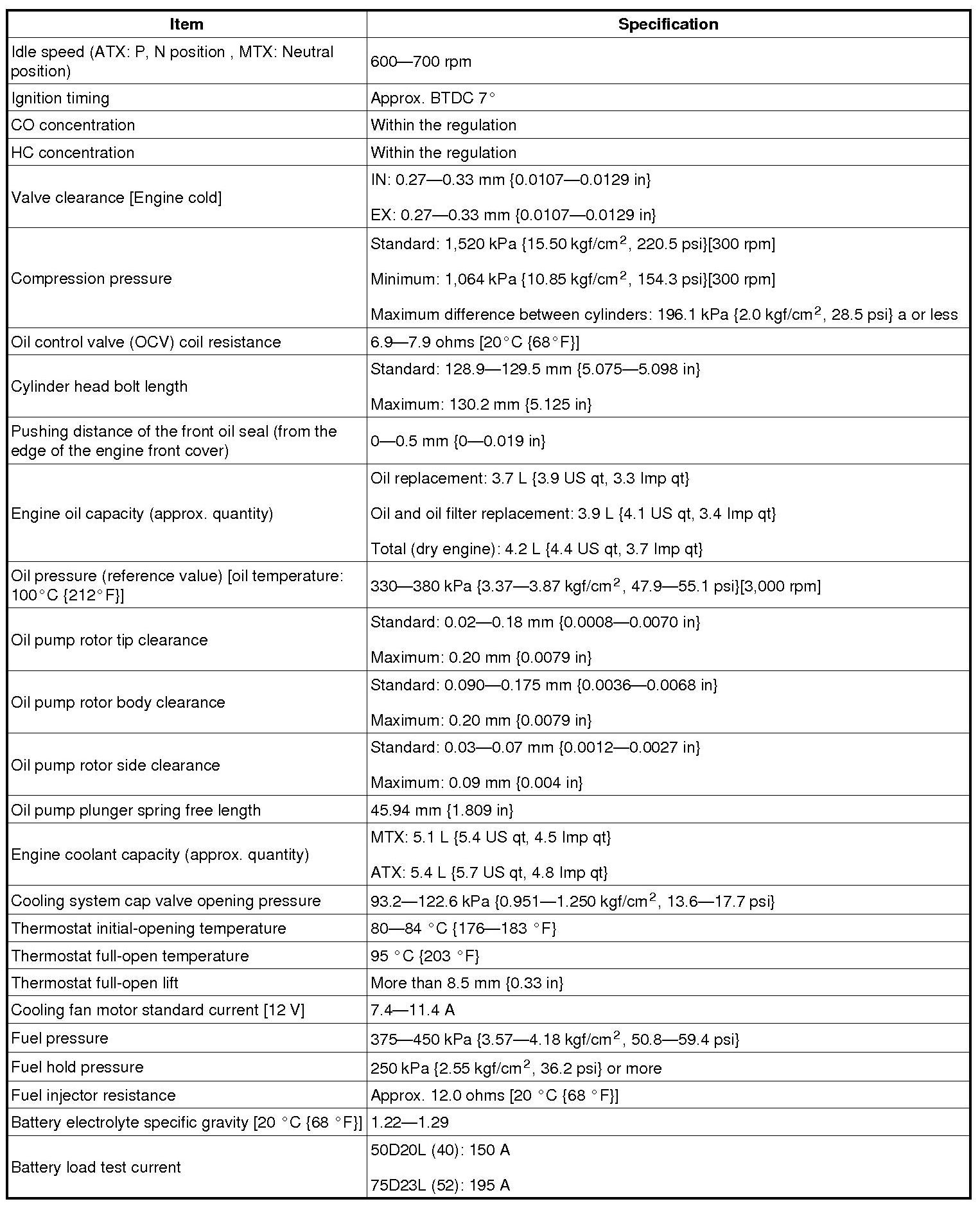

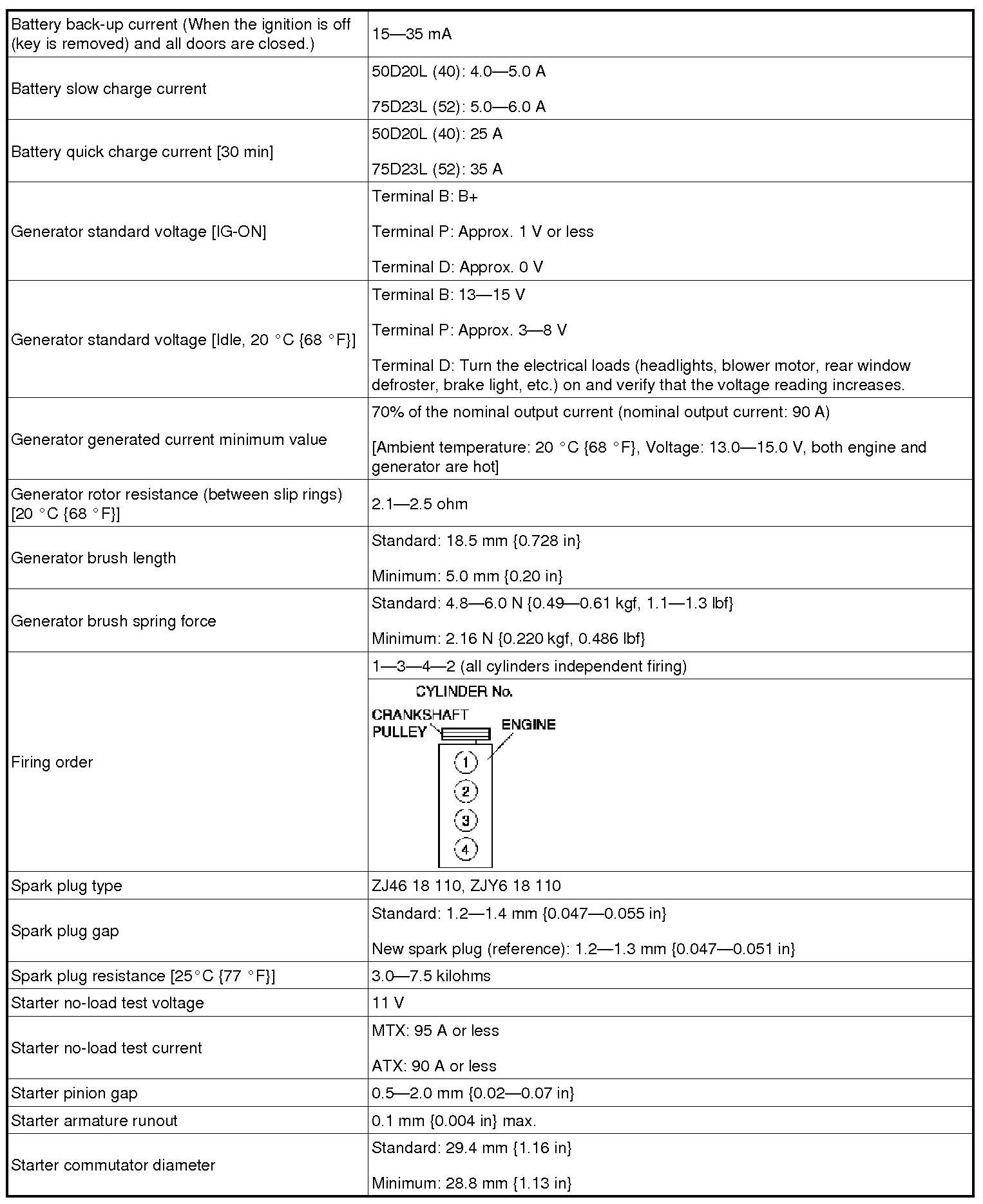

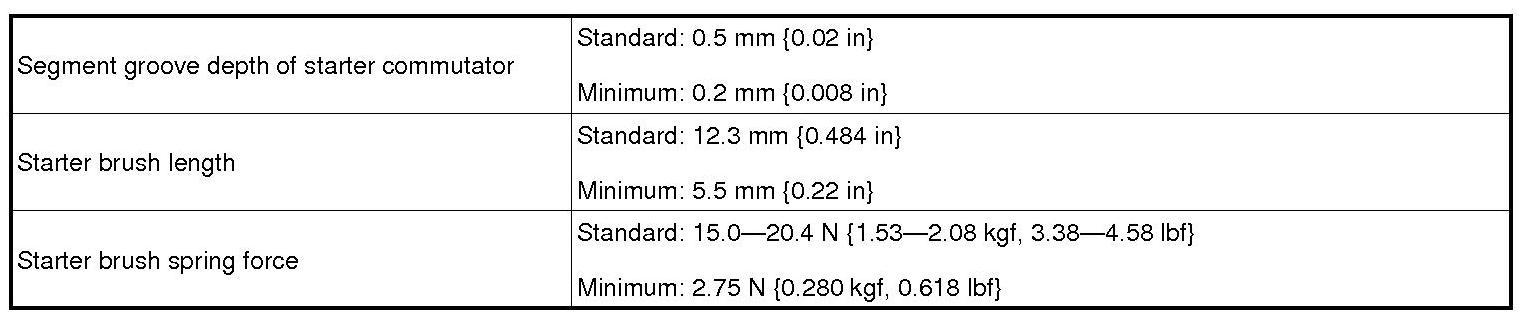

ENGINE TECHNICAL DATA [MZR 1.5]













Idle-up speed

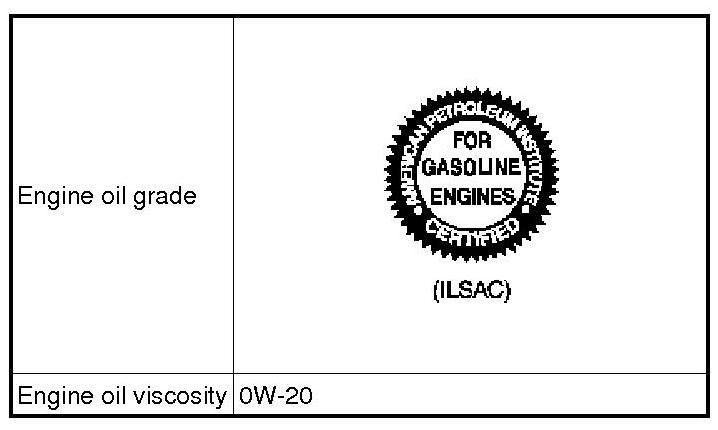

Engine oil specification

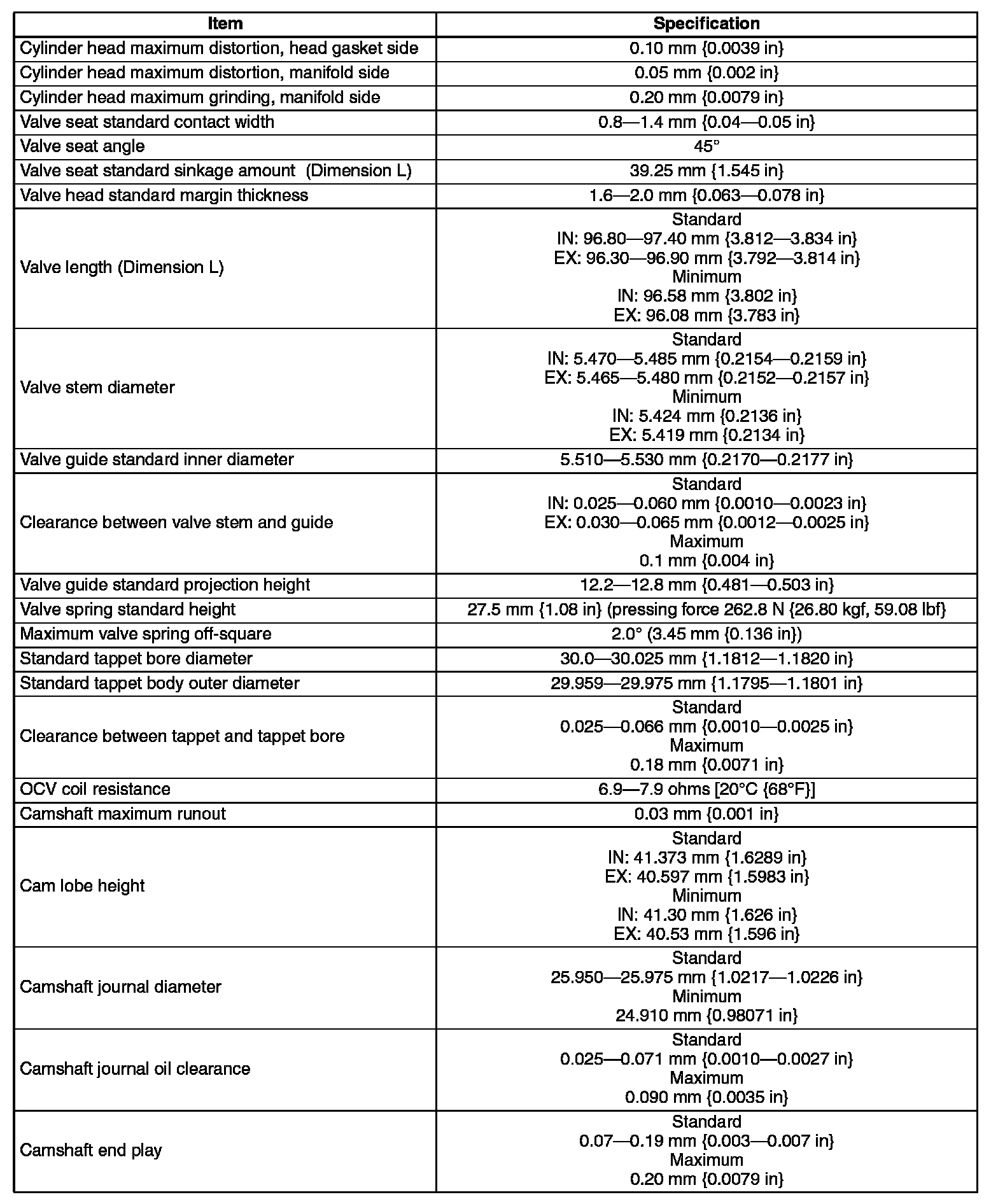

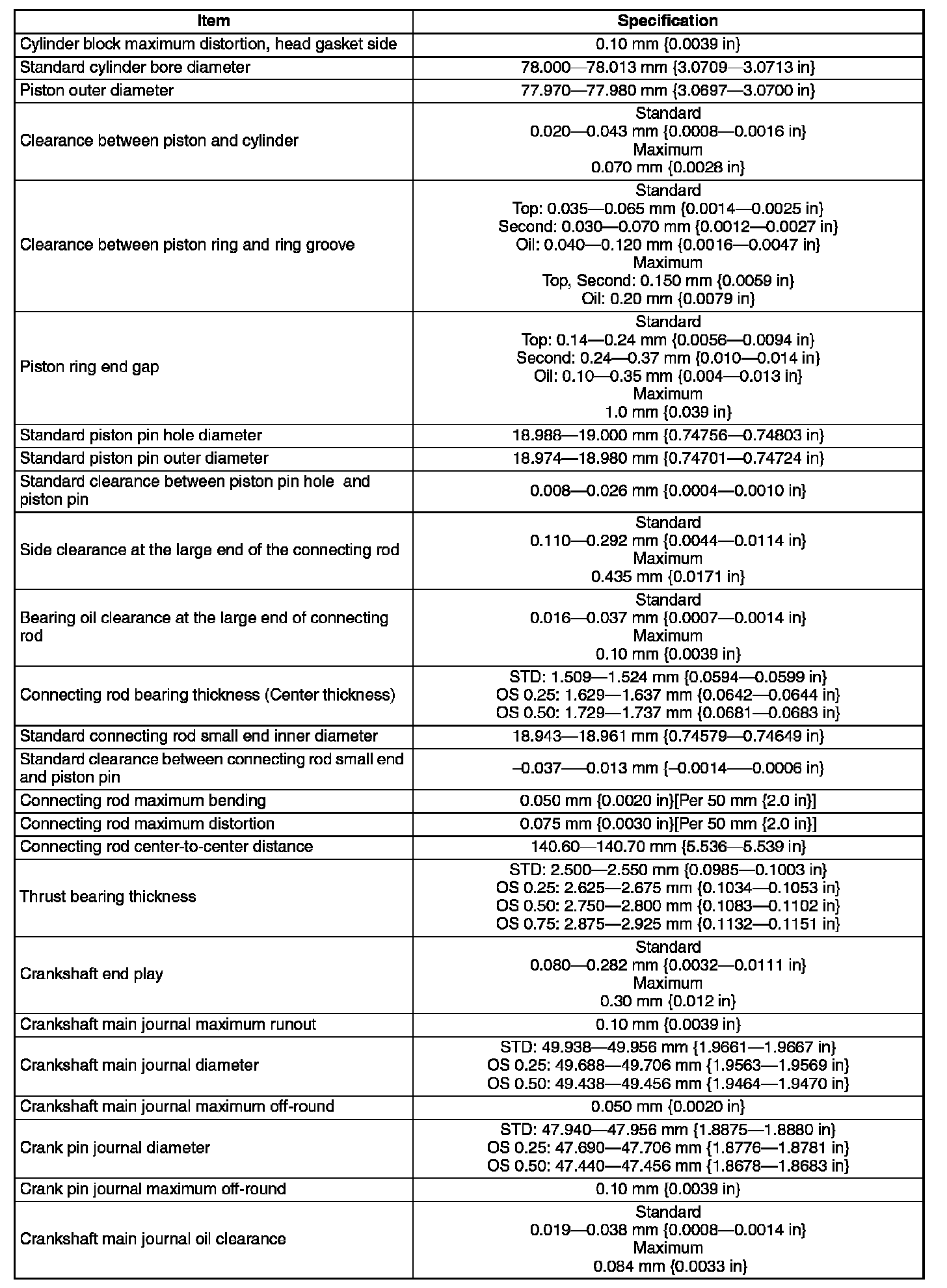

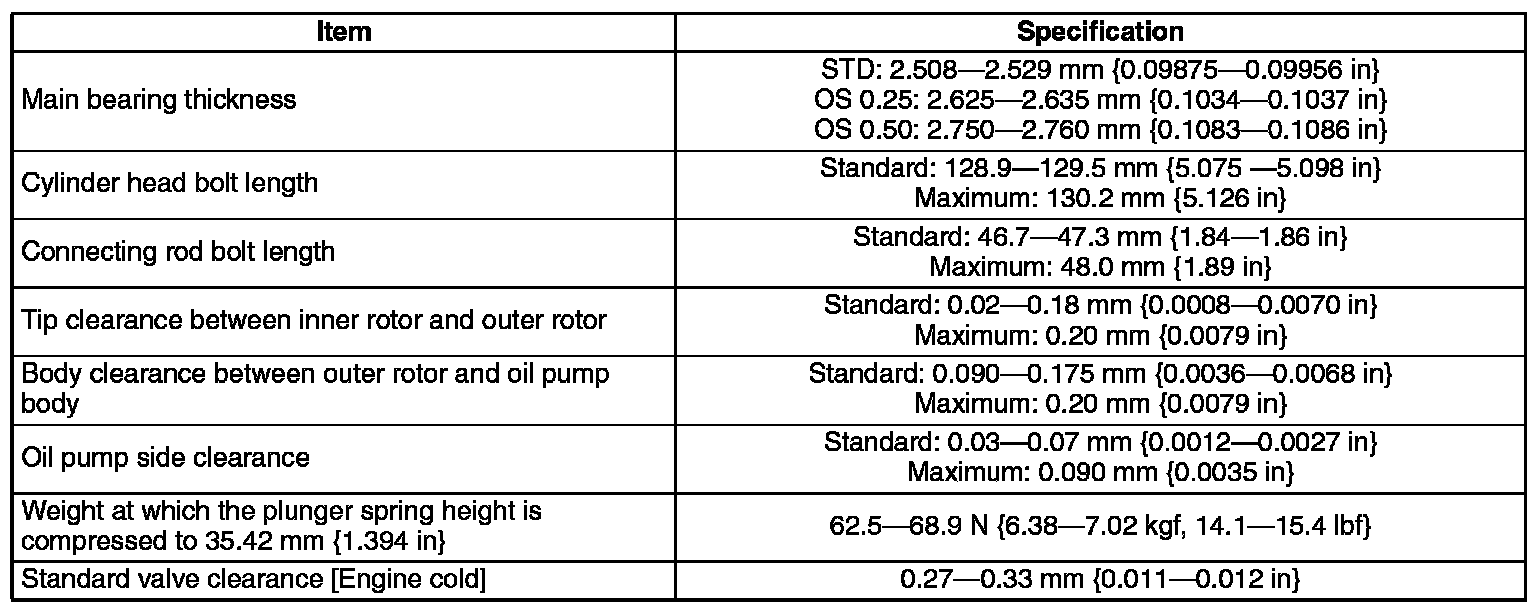

ENGINE TECHNICAL DATA (Overhaul Manual)
