Power Door Lock Switch: Testing and Inspection




DOOR LOCK SWITCH INSPECTION

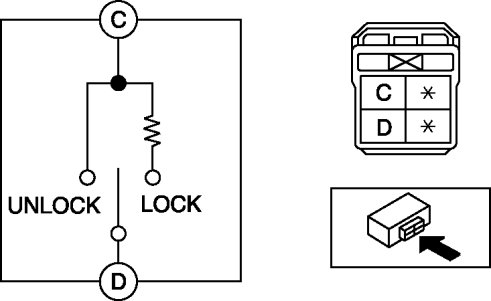

1. Inspect for continuity between the door lock switch terminals.






- If not as specified, replace the door lock switch.
