Exploded Views



-

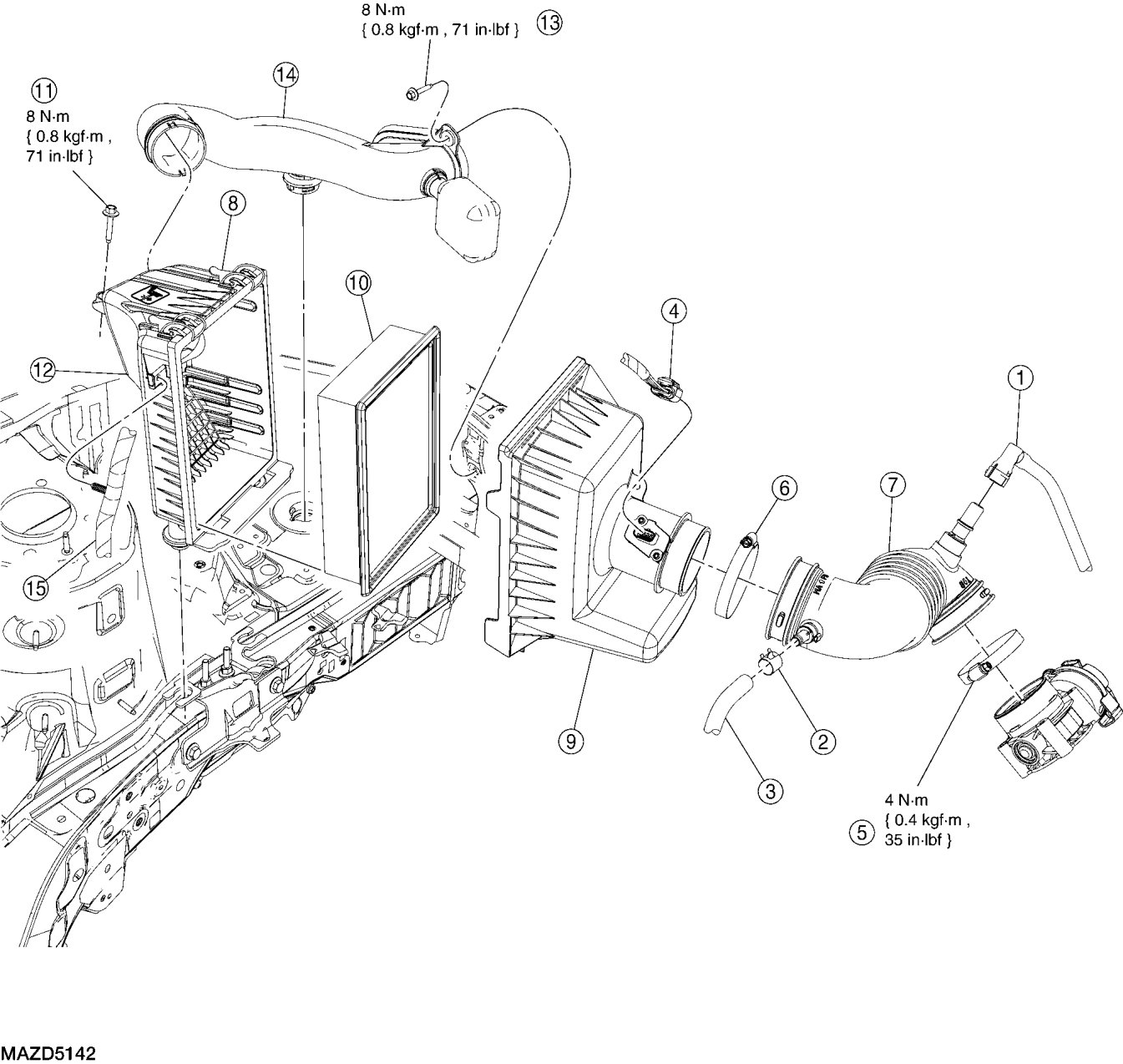

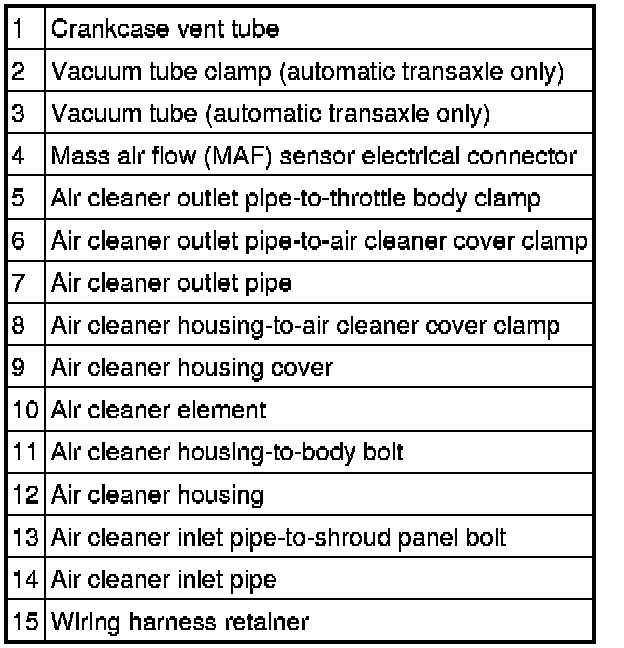

INTAKE AIR SYSTEM EXPLODED VIEW - 2.5L









1. For additional information, see the procedures.
