Intake Manifold

Lower Intake Manifold

Tighten in the sequence shown to 10 Nm {0.1 kgf-m, 89 in-lbf}

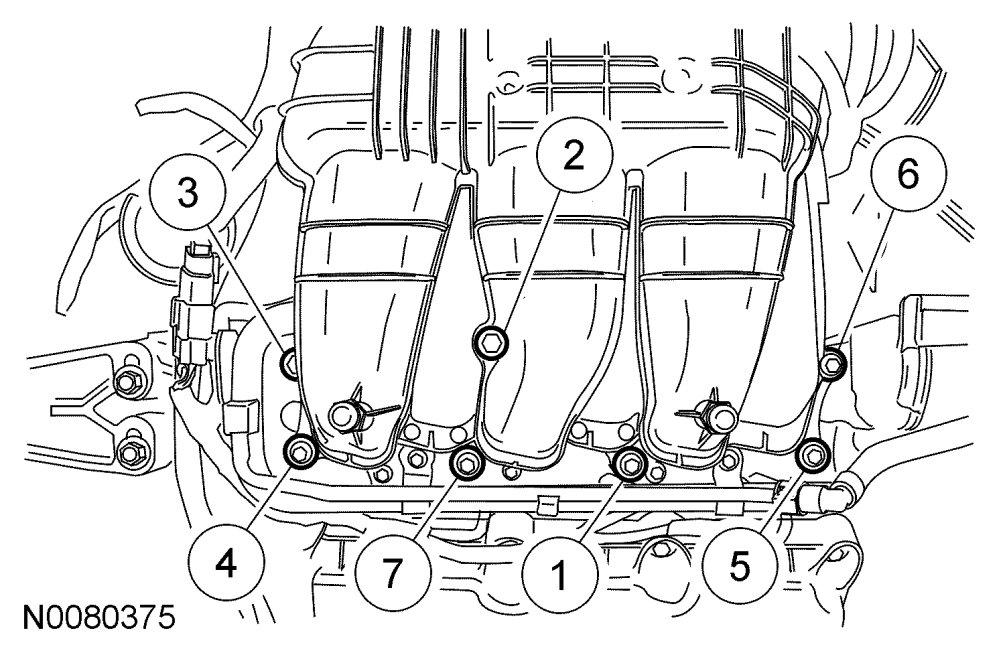

Upper Intake Manifold

Tighten the bolts in 2 stages in the sequence shown
Stage 1: Tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}
Stage 2: Tighten an additional 45 degrees

2 upper intake manifold support bracket bolts

Tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}
