Cylinder Block Assembly



-
LOWER END COMPONENTS EXPLODED VIEW - 3.0L

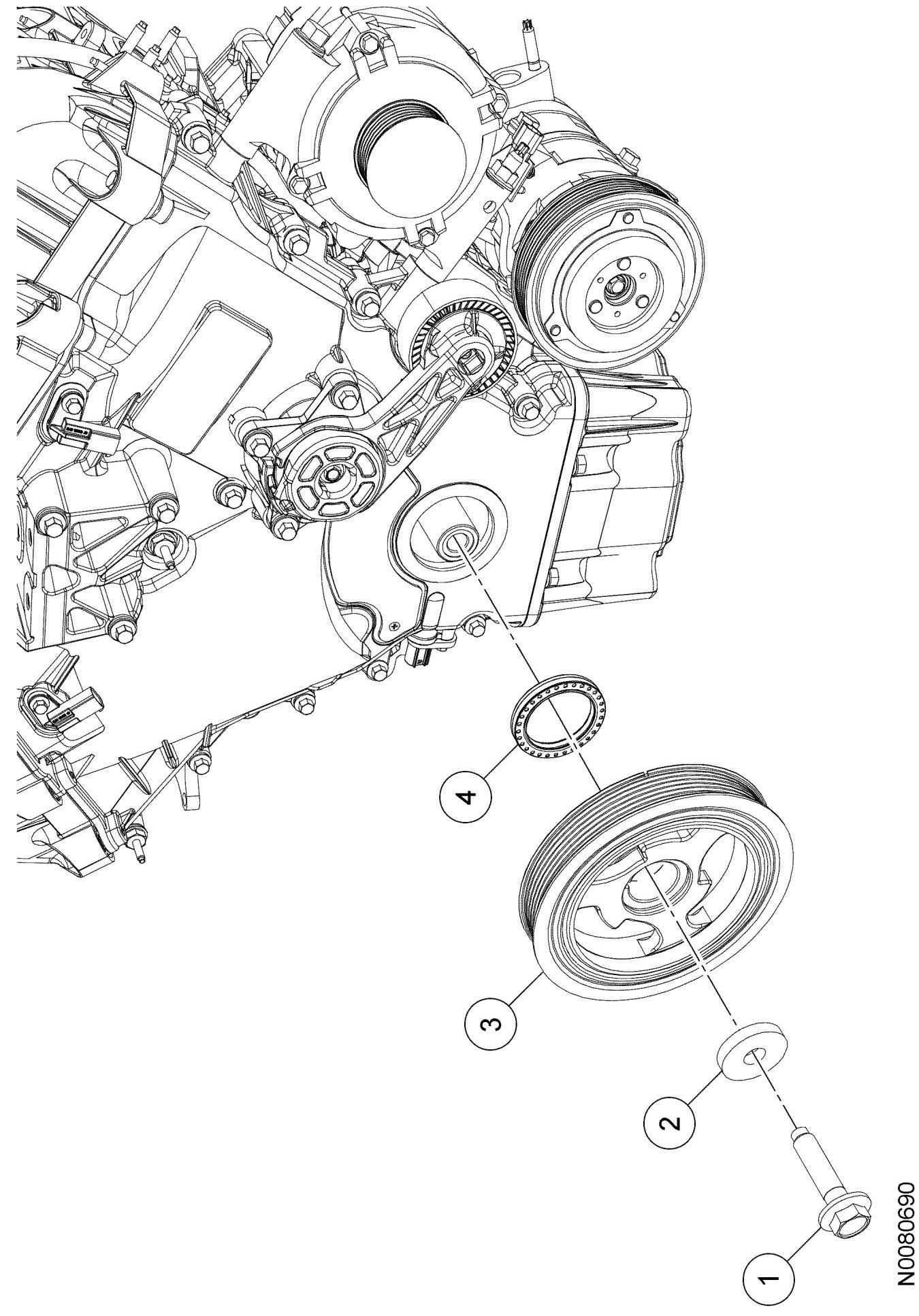

Crankshaft Pulley and Front Seal

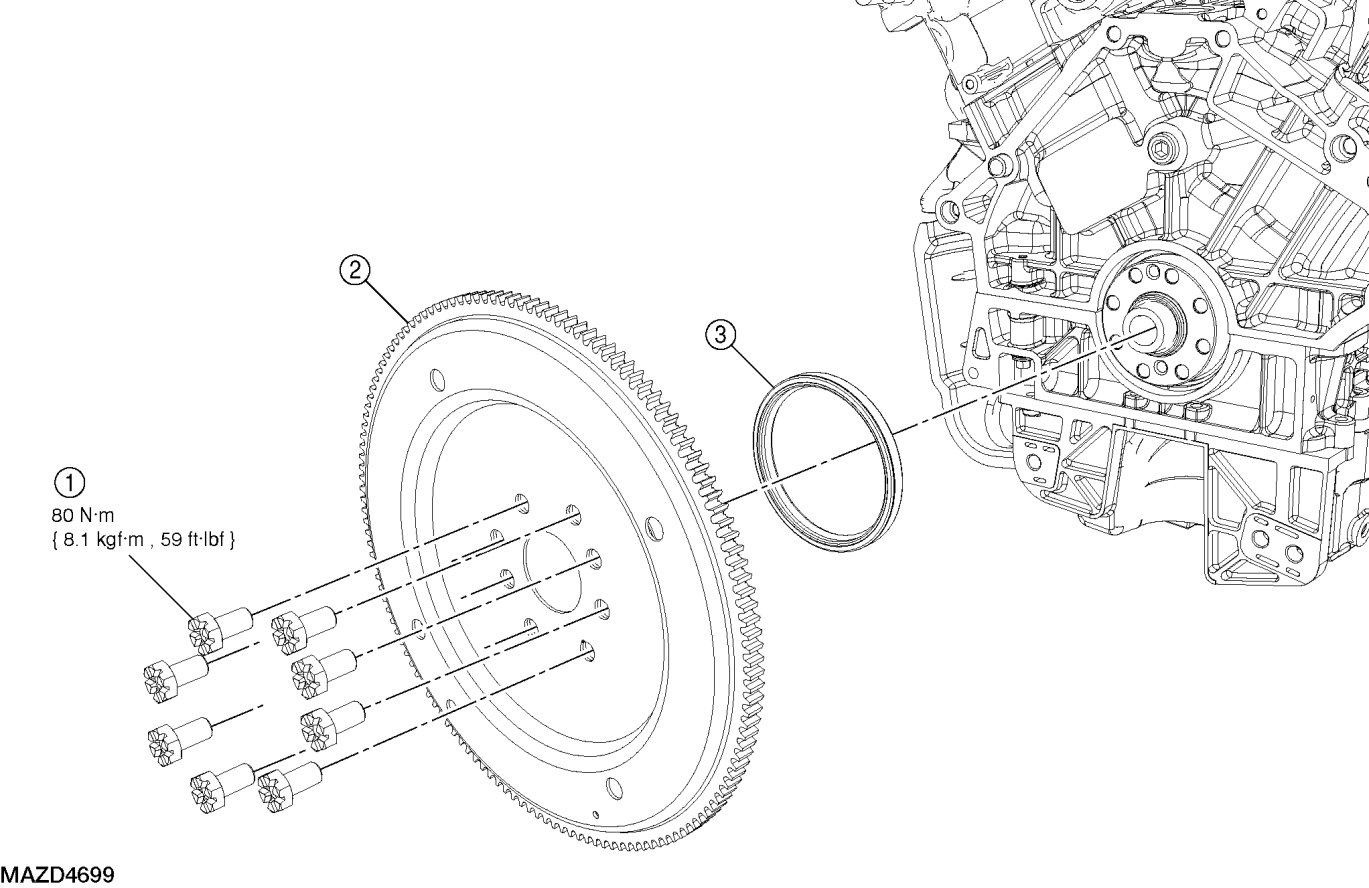

Flexplate and Rear Seal










1. For additional information, see the procedures .
