Pinpoint Test 3: Transmission Control Switch (TCS) Does Not Operate Correctly




PINPOINT TEST 3: TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY

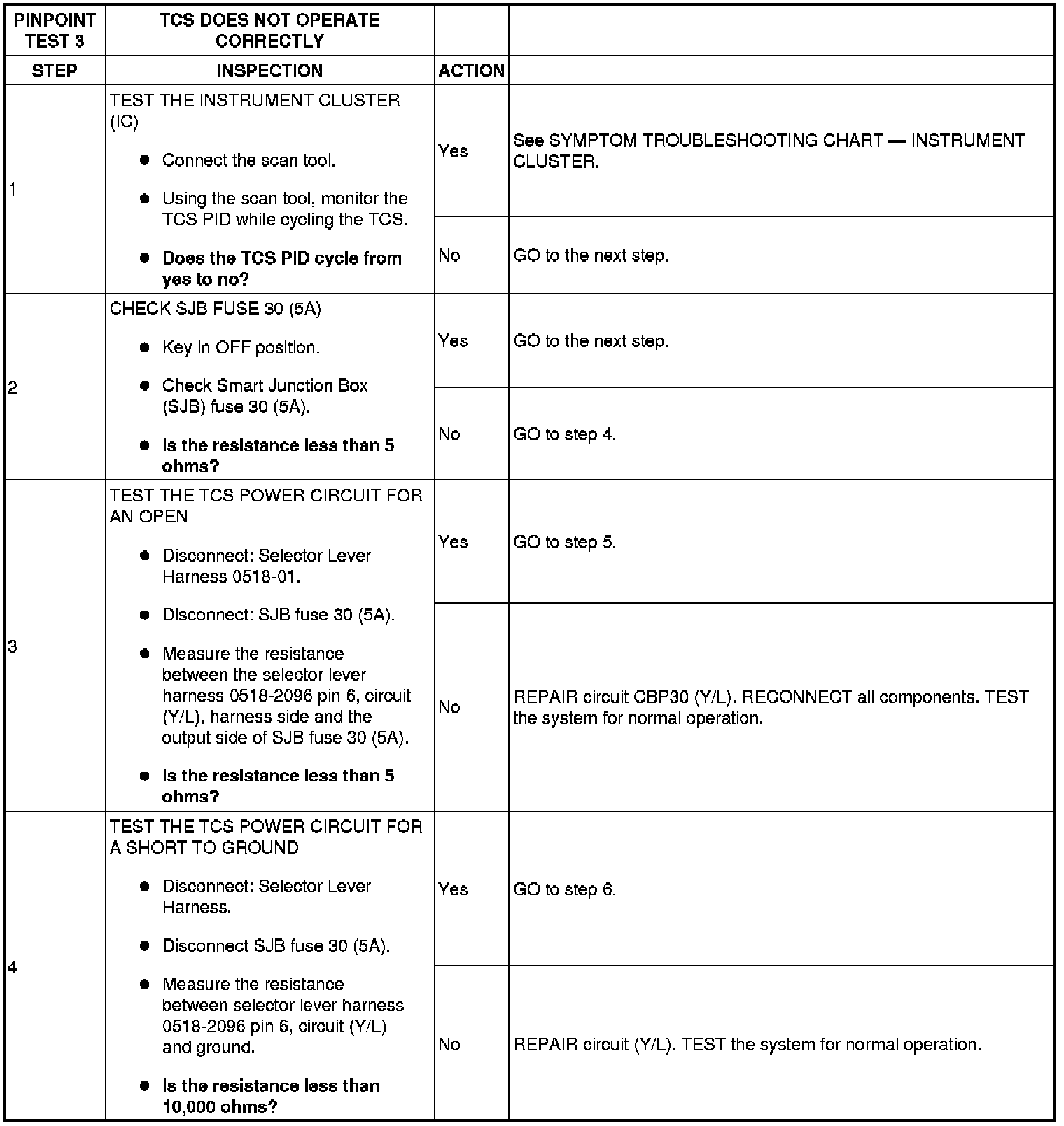

Step 1-Step 4:

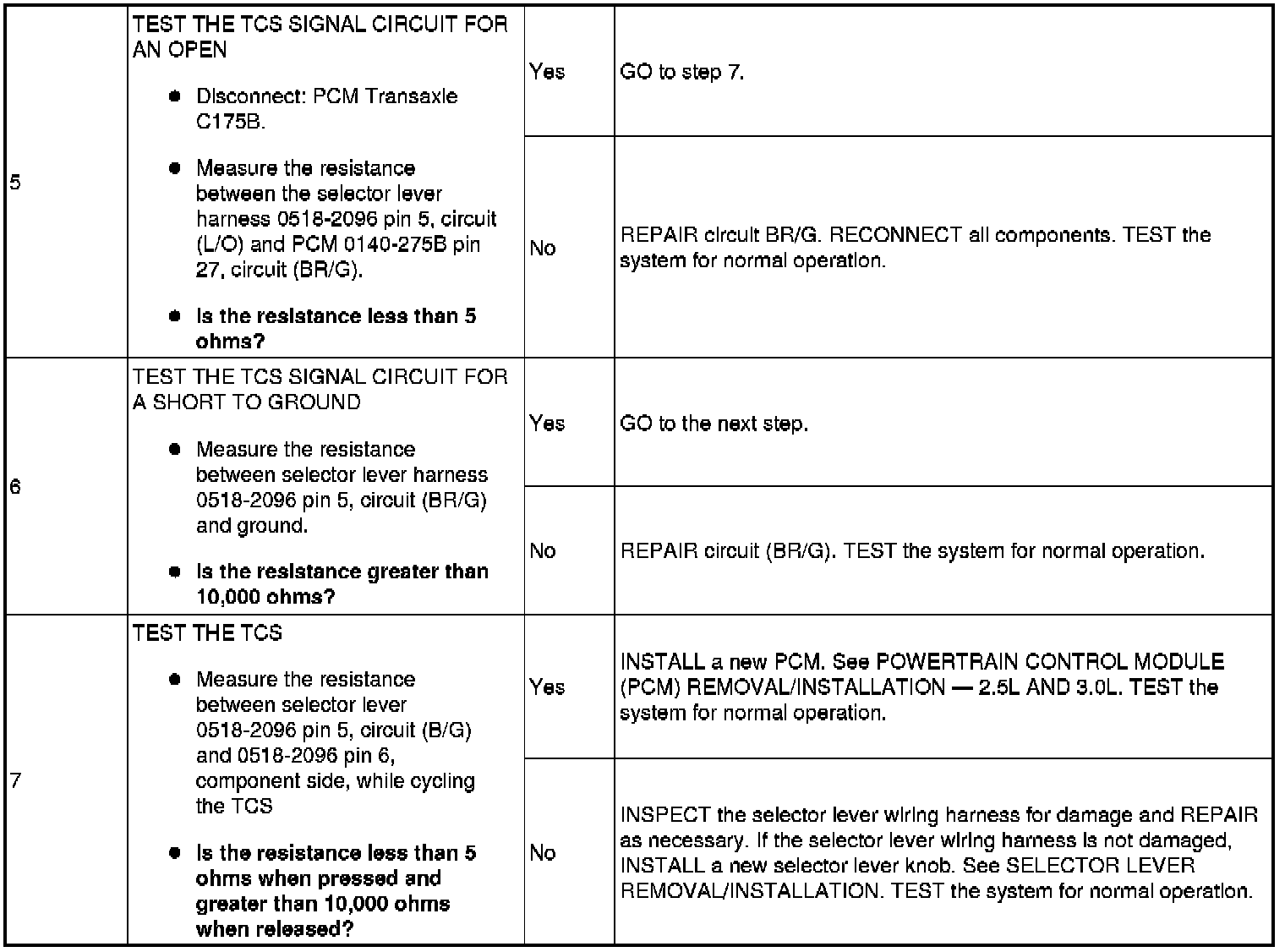

Step 5-Step 7:
