Manifold Pressure/Vacuum Sensor: Testing and Inspection

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

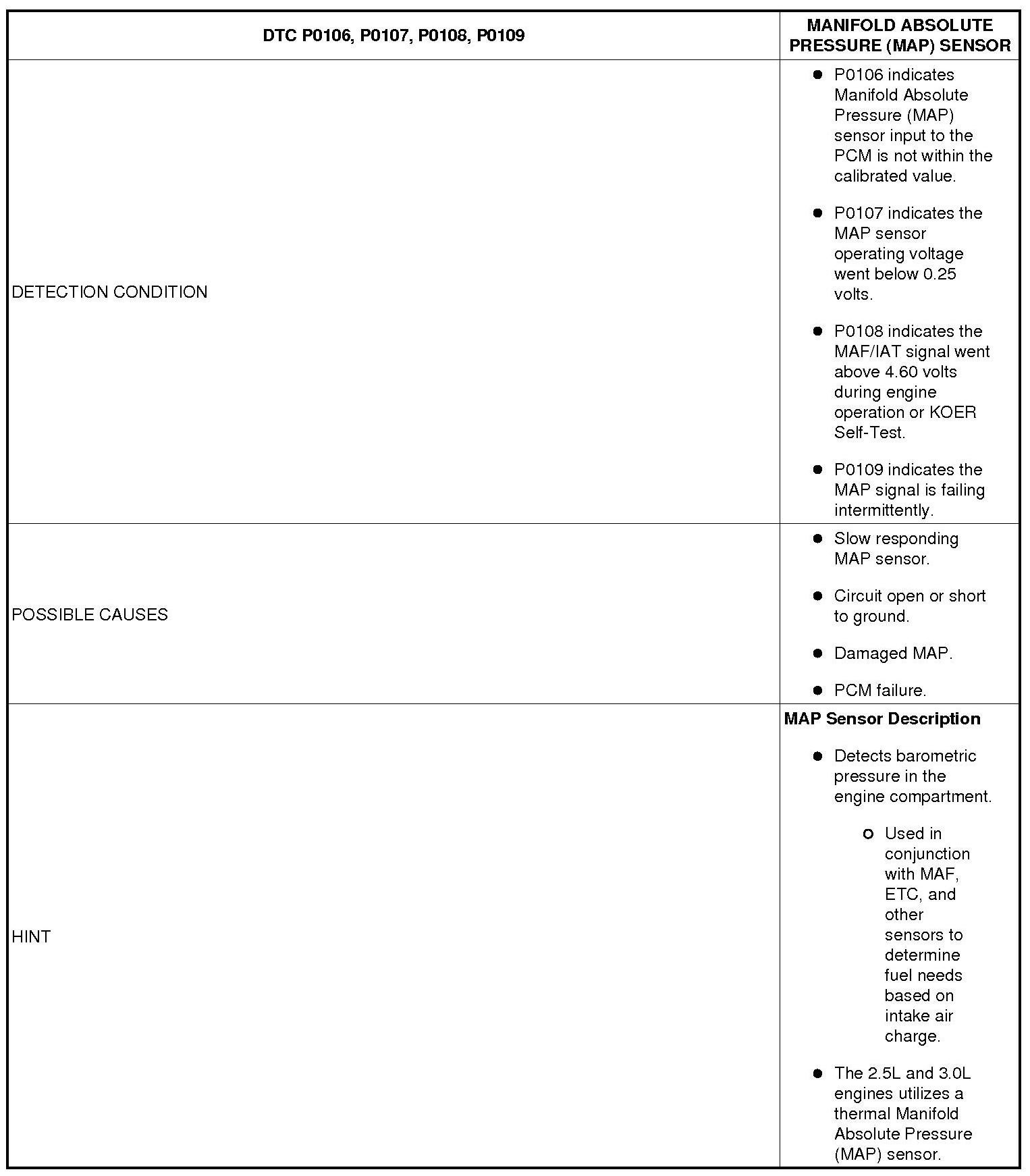

Detection Condition/Possible Causes:

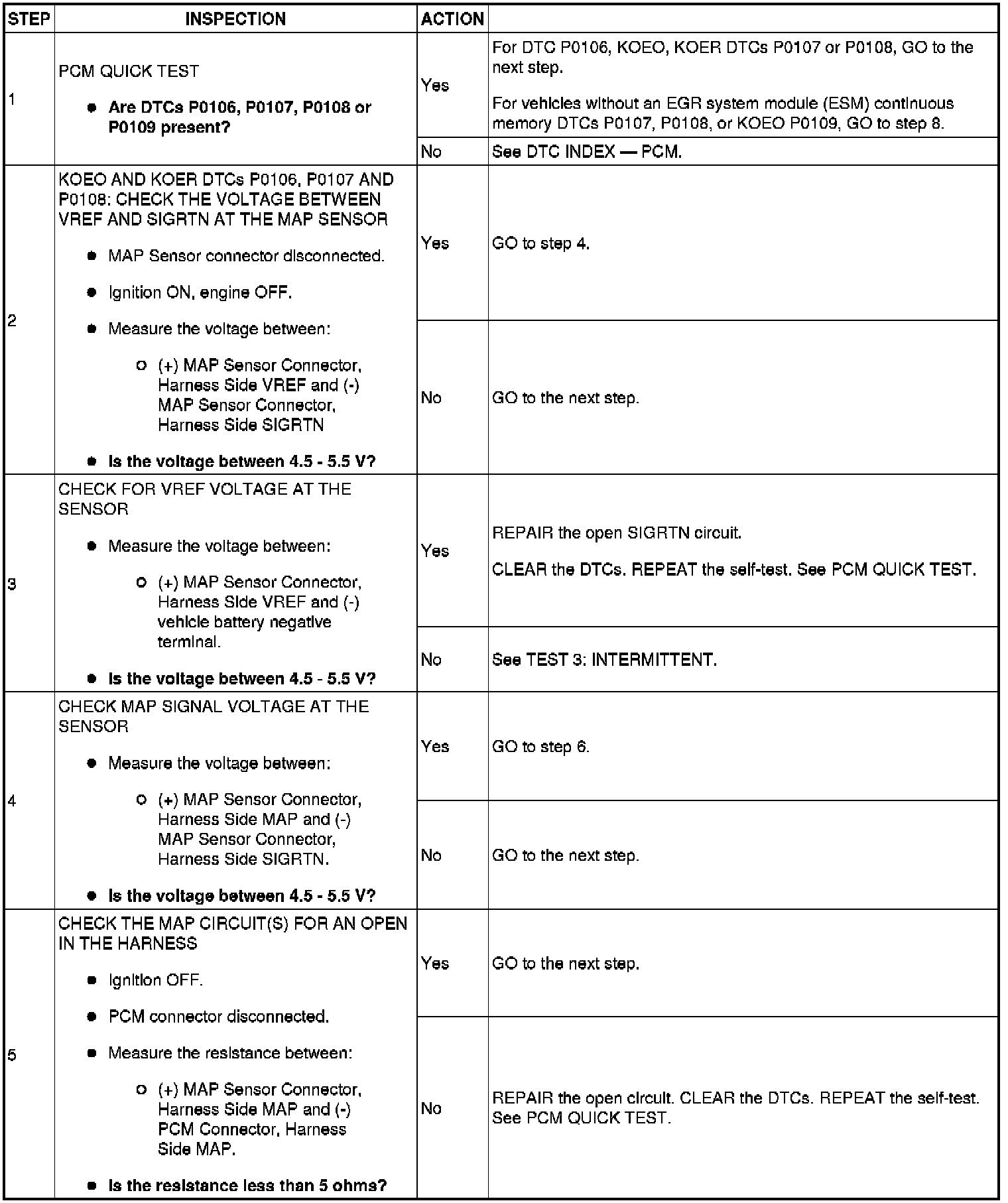

Step 1-Step 5:

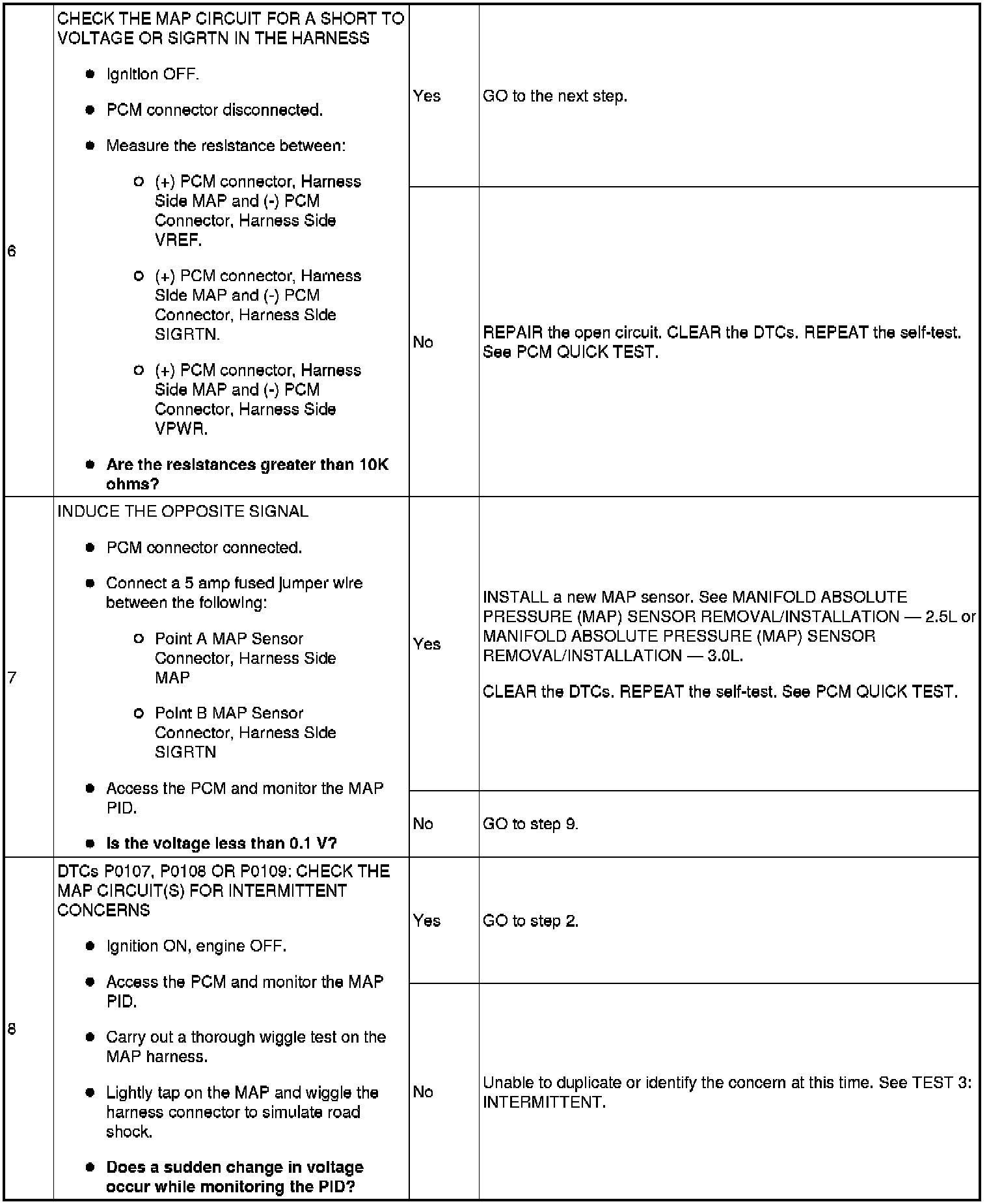

Step 6-Step 8:

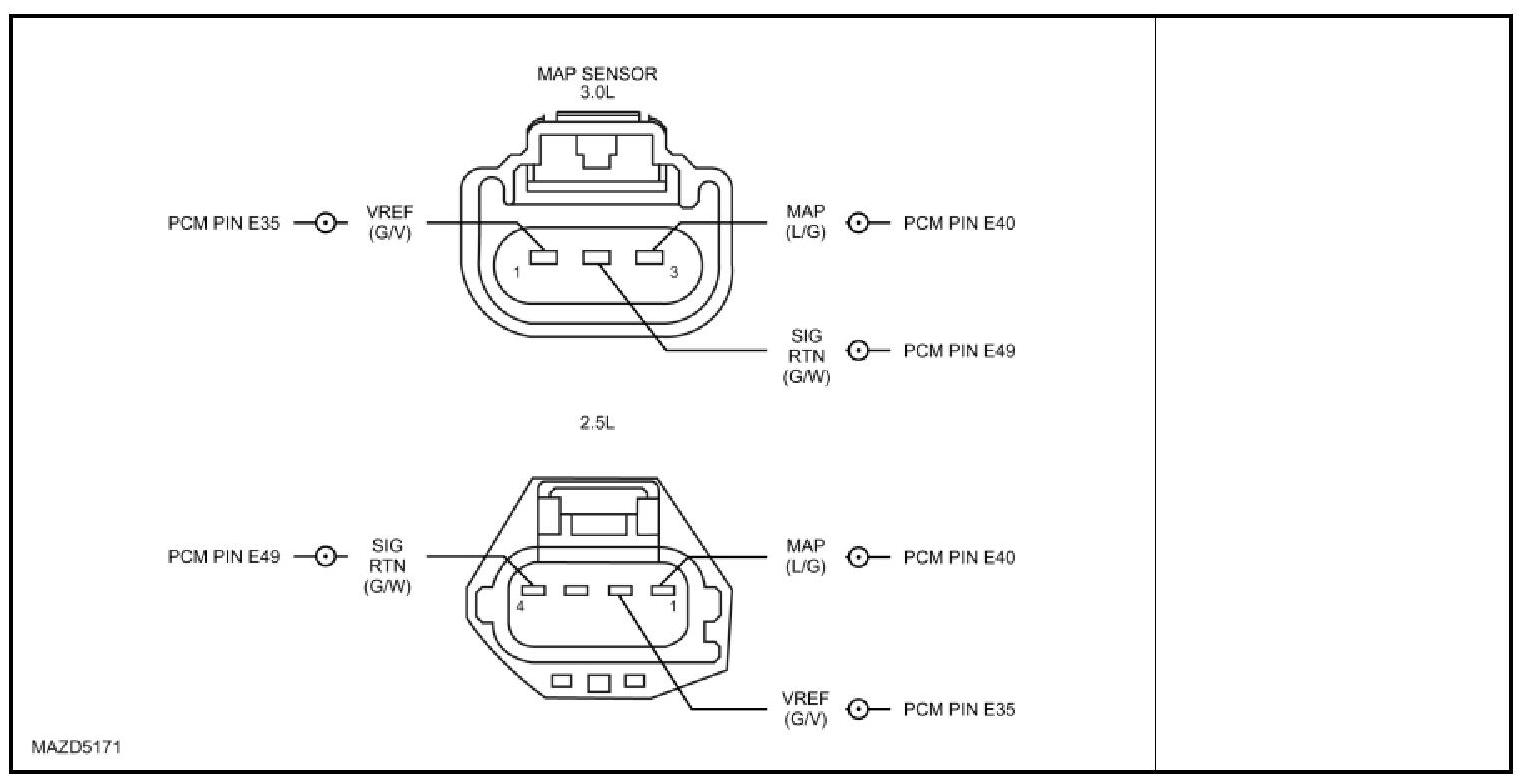

Step 9:
