Camshaft Position Sensor: Testing and Inspection




CAMSHAFT POSITION (CMP) SENSOR MALFUNCTION

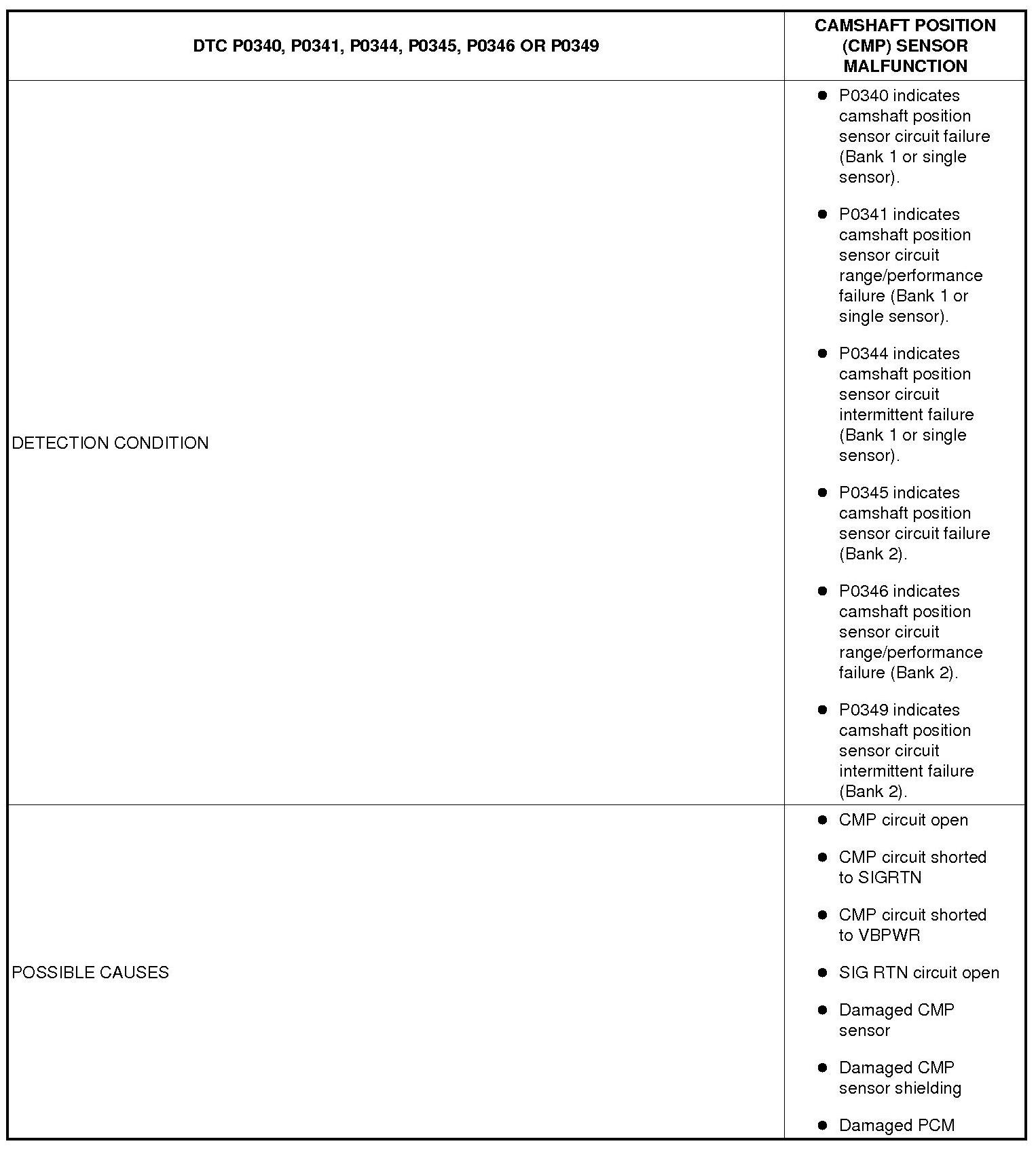

Detection Condition/Possible Causes:









Step 1-Step 3:

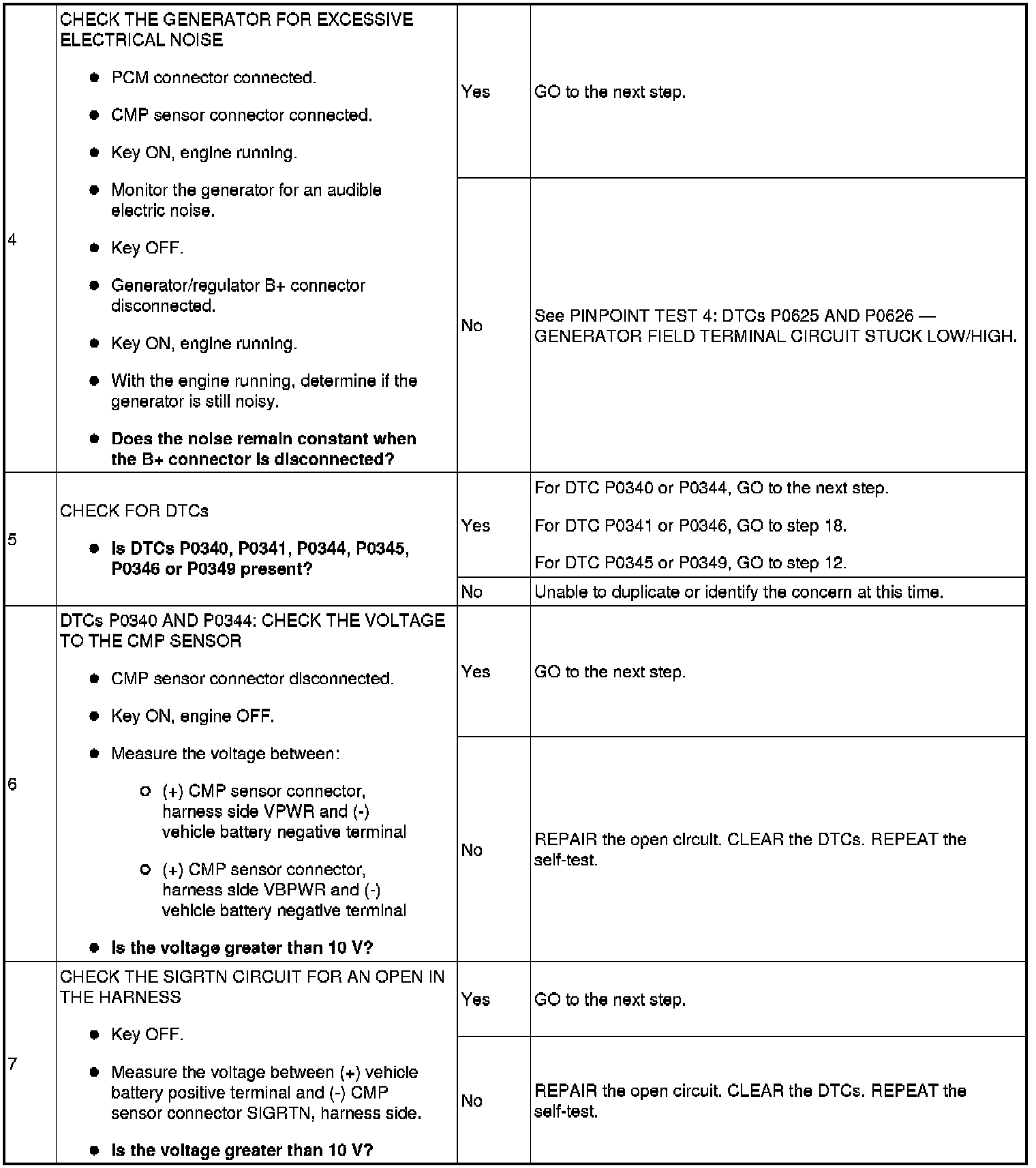

Step 4-Step 7:





Step 8-Step 10:

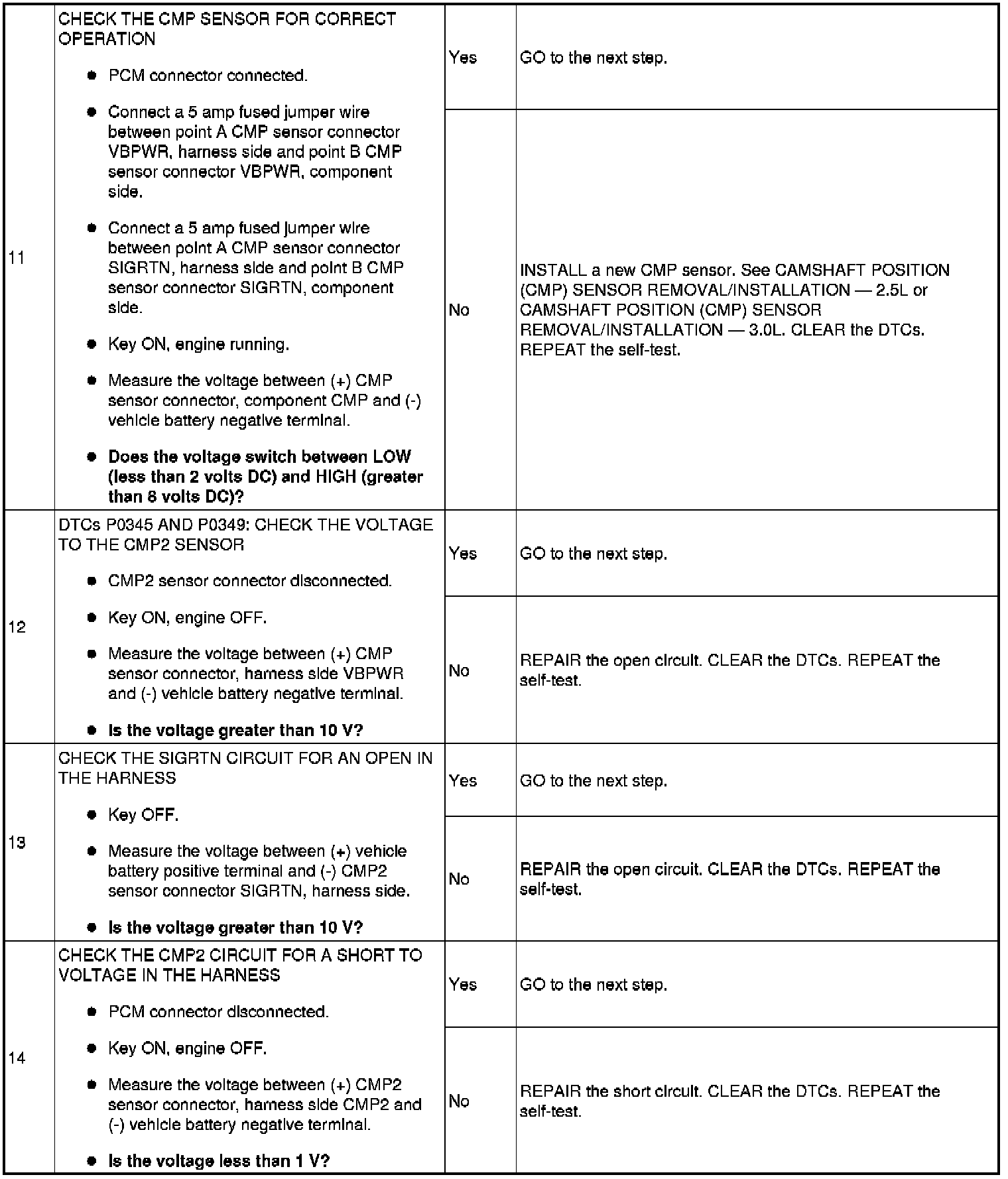

Step 11-Step 14:

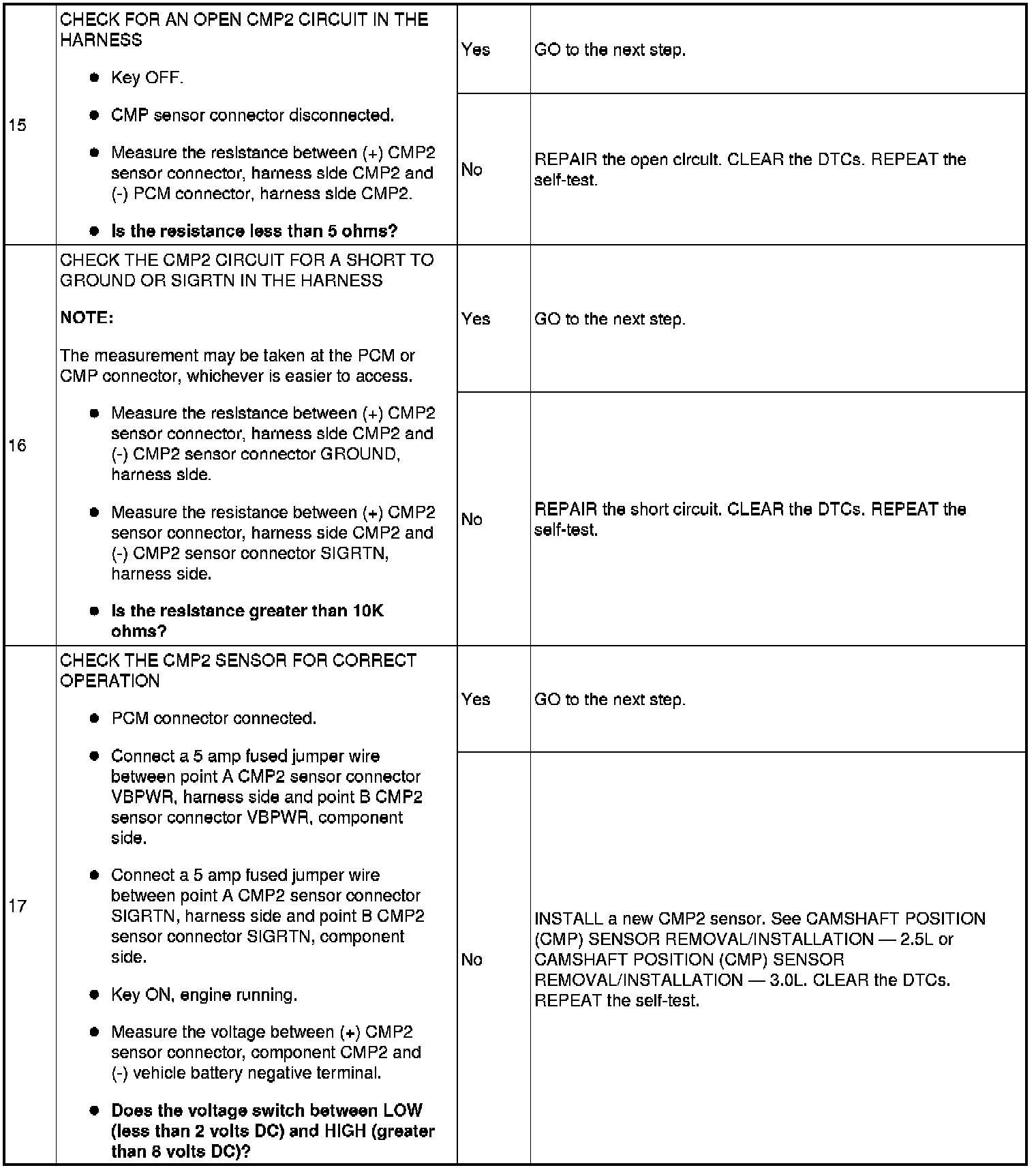

Step 15-Step 17:

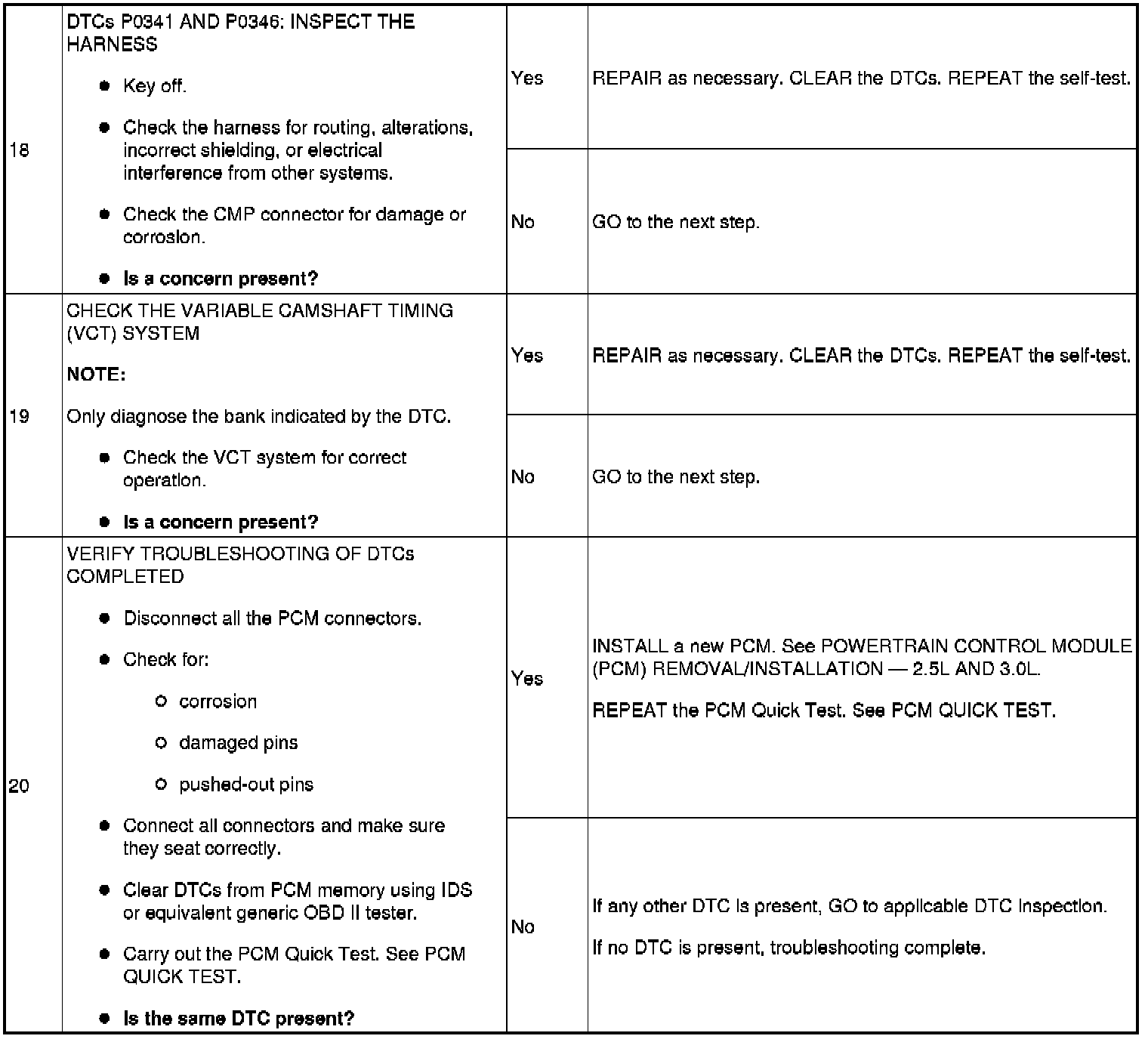

Step 18-Step 20:
