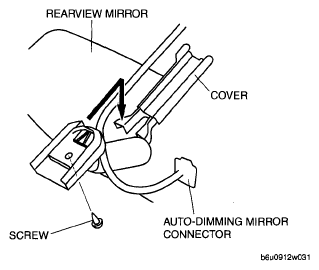

Auto-dimming Mirror
- Disconnect the negative battery cable.
- Remove the cover.
- Disconnect the auto-dimming mirror connector.
- Remove the screw.
- Remove the rearview mirror.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
