Engine Technical Data




ENGINE TECHNICAL DATA [LF]

Part 1:





Part 2:





Part 3:

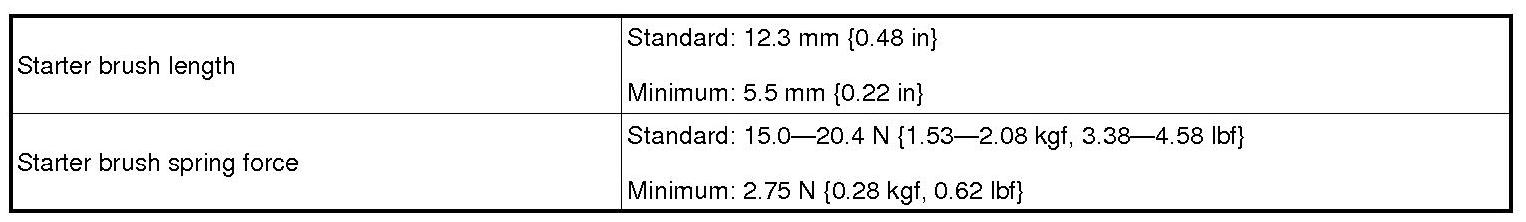

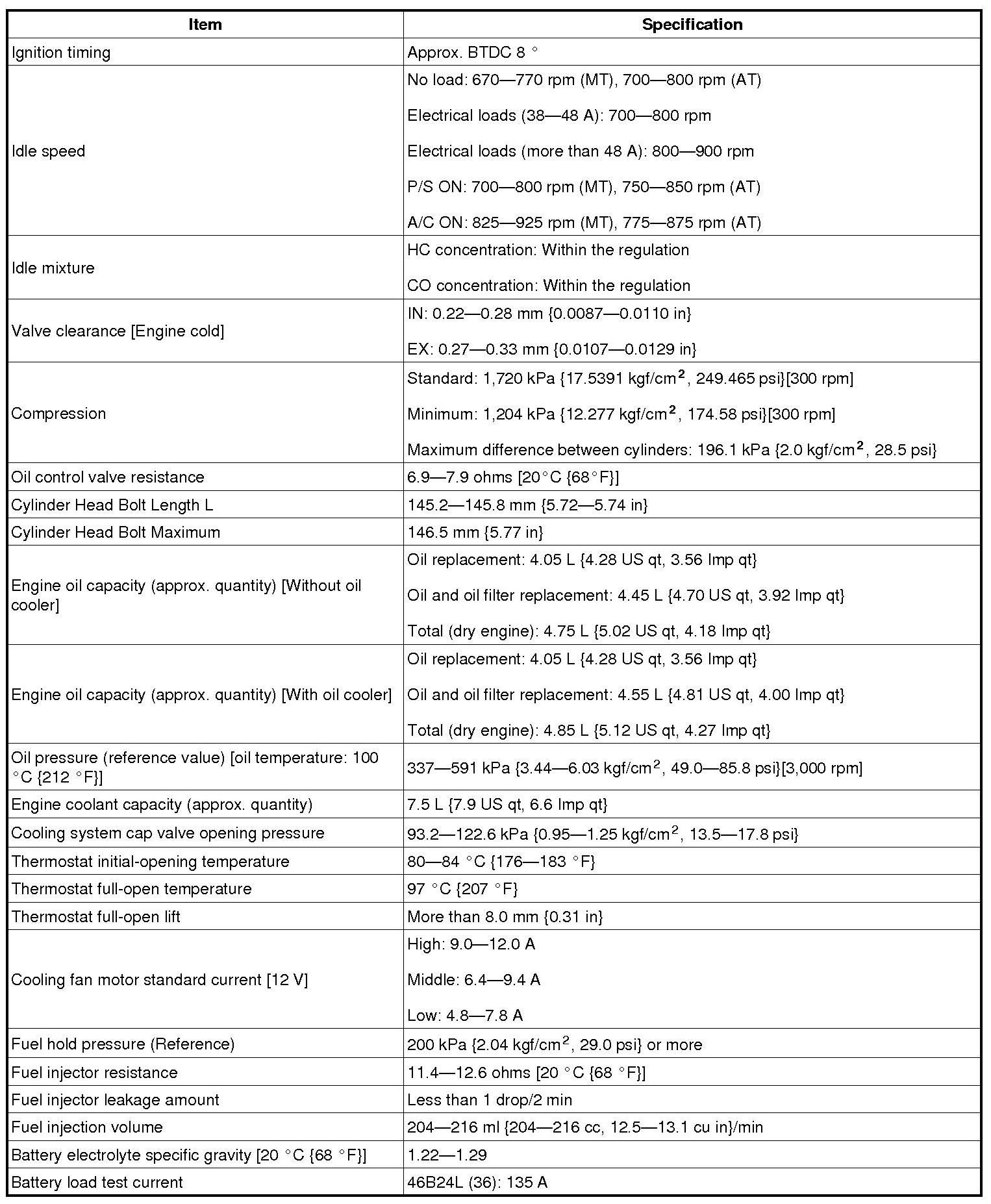

Engine Technical Data:

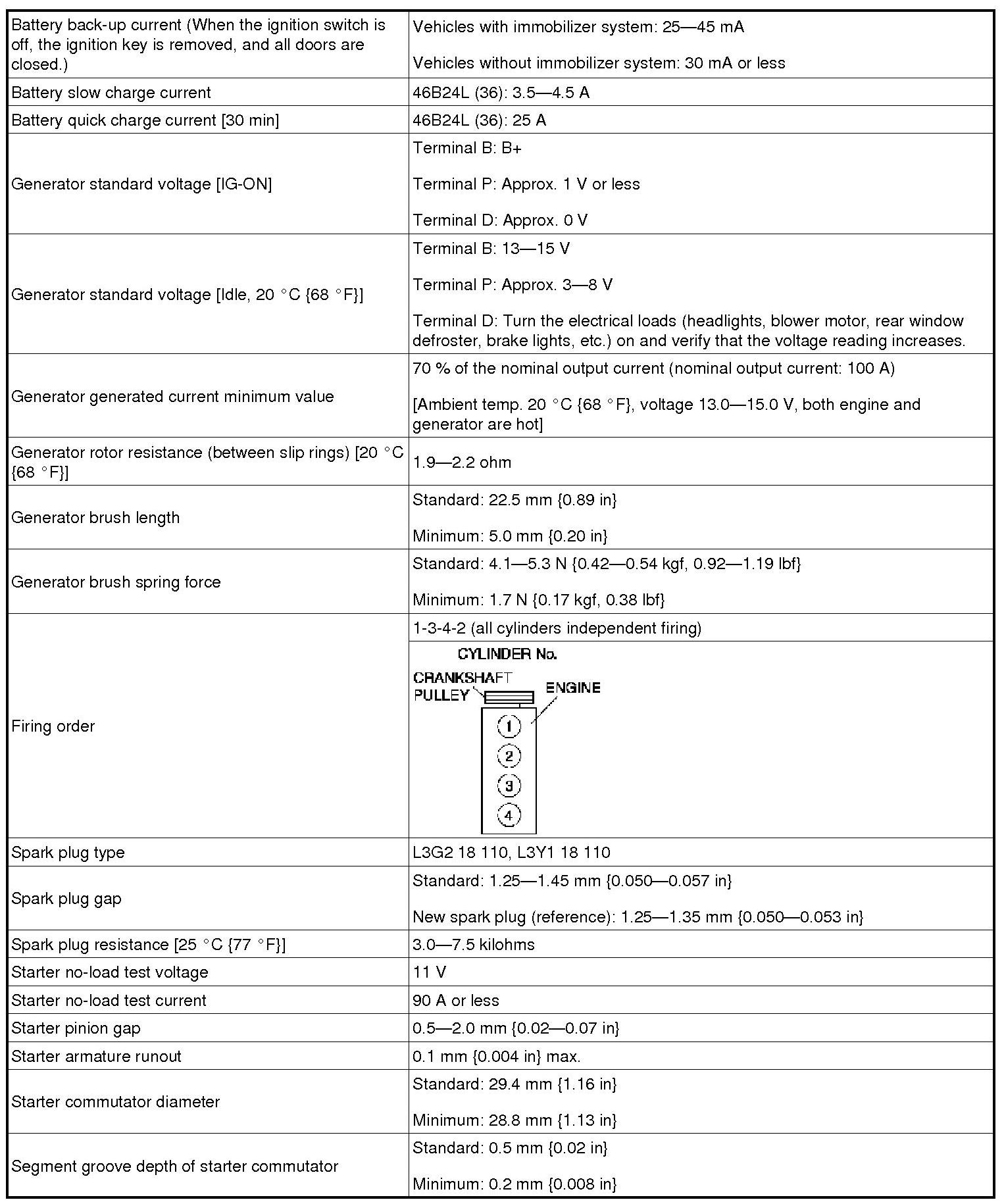

Engine Technical Data:

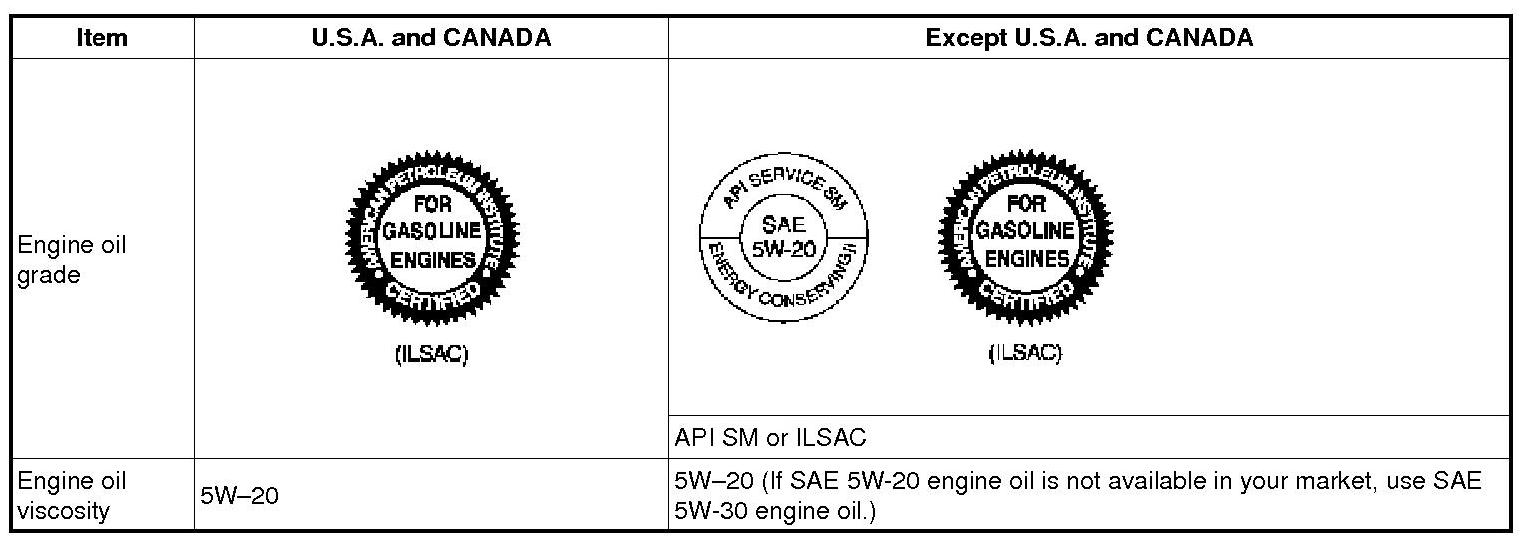

Engine oil specification
