Oil Pan, Engine

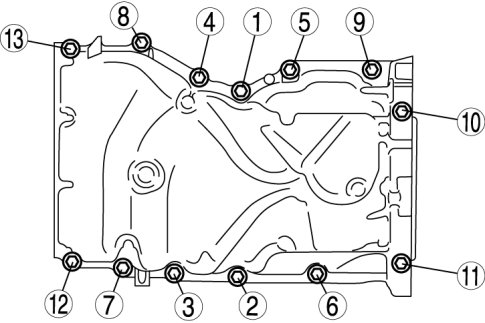

Tighten the bolts in the order shown in the figure.






Tightening torque 17-23 Nm {1.8-2.3 kgf-m, 12.6-16.9 ft-lbf}

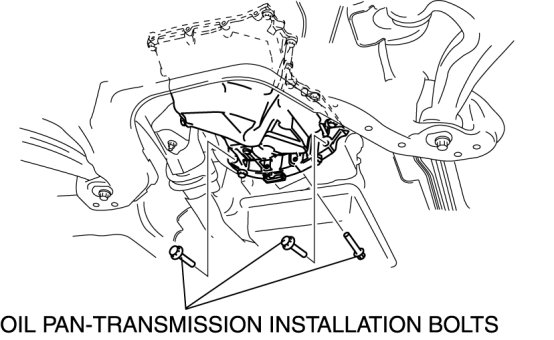

Tighten the oil pan-transmission installation bolts.






Tightening torque 37-52 Nm {3.8-5.3 kgf-m, 28-38 ft-lbf}
