Power Retractable Hardtop Control Module

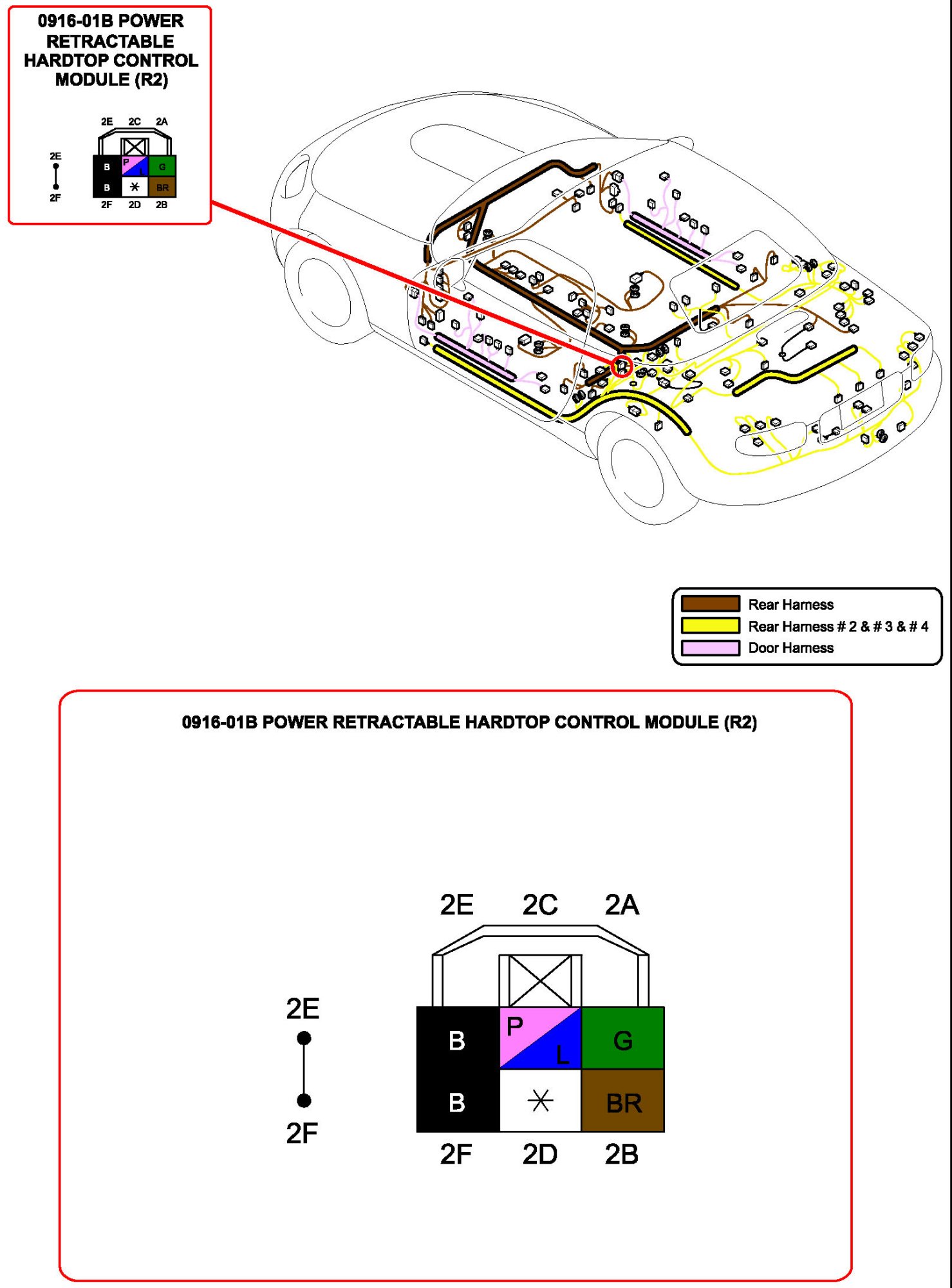

Power Retractable Hardtop Control Module:

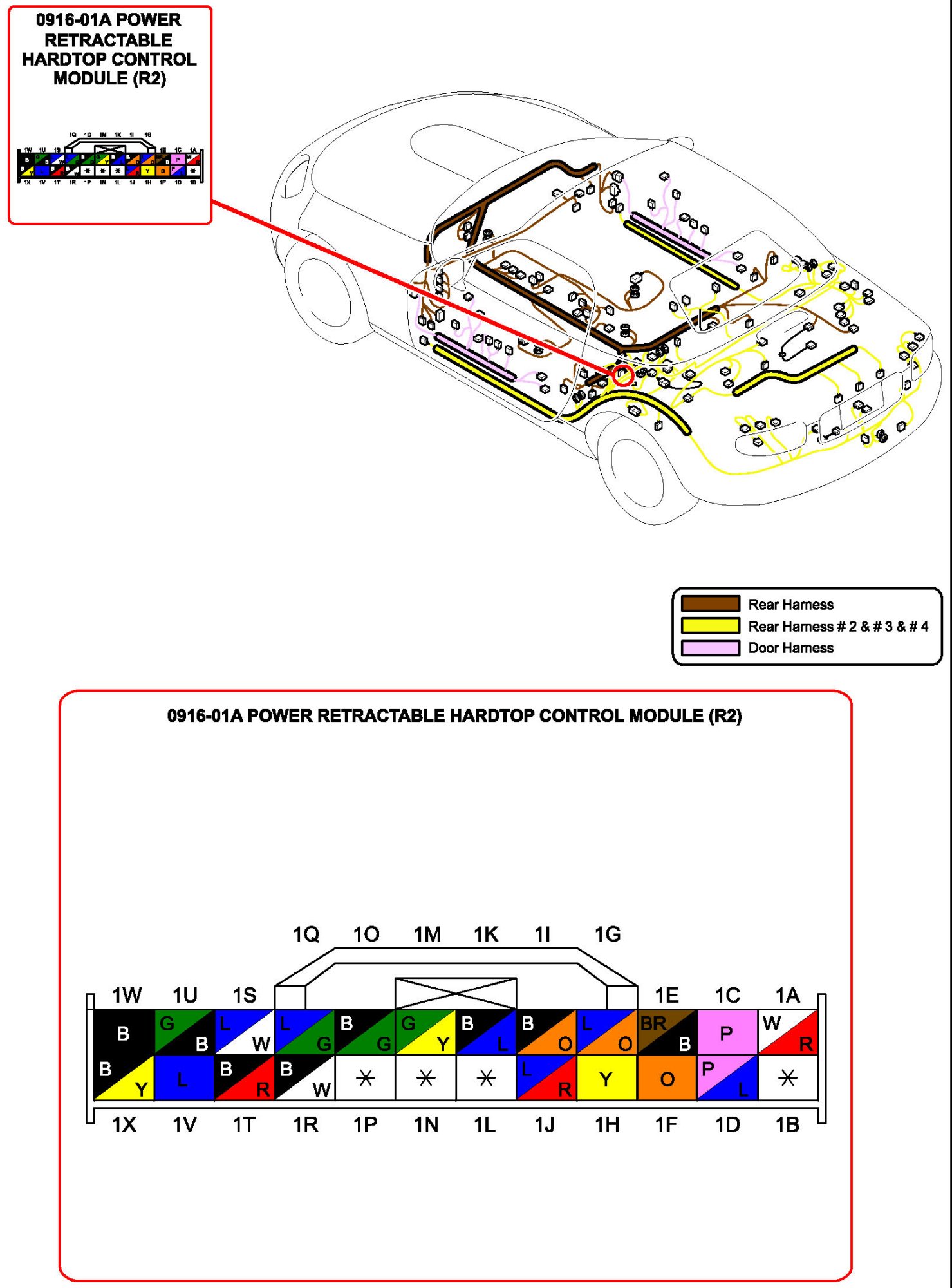

Power Retractable Hardtop Control Module:

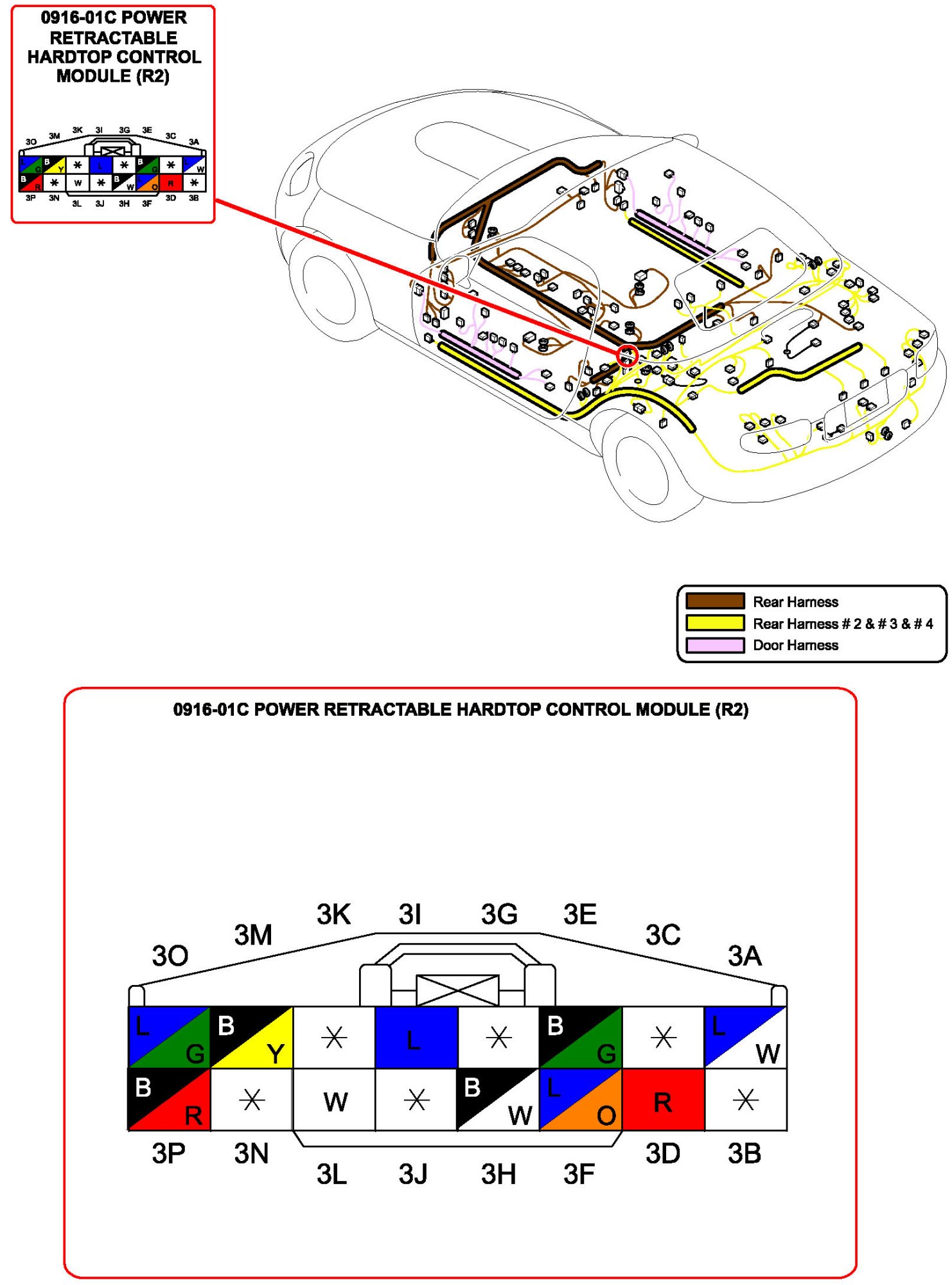

Power Retractable Hardtop Control Module:
