No.4 Advanced Keyless Start Function Inoperative - Advanced Keyless And Start System




NO.4 ADVANCED KEYLESS START FUNCTION INOPERATIVE [ADVANCED KEYLESS AND START SYSTEM]

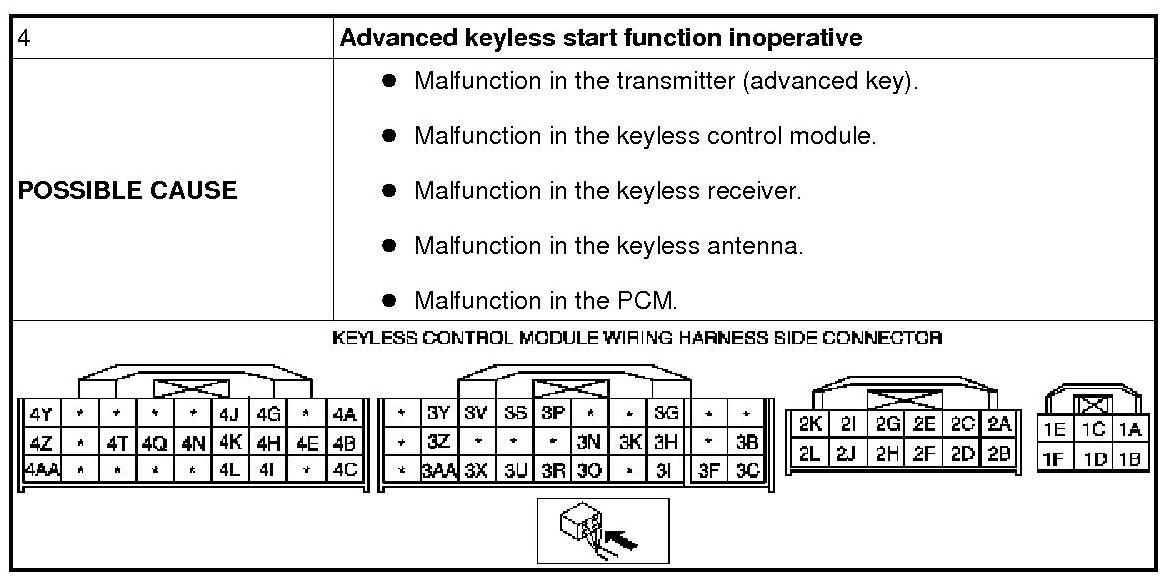

Possible Cause:





Diagnostic procedure

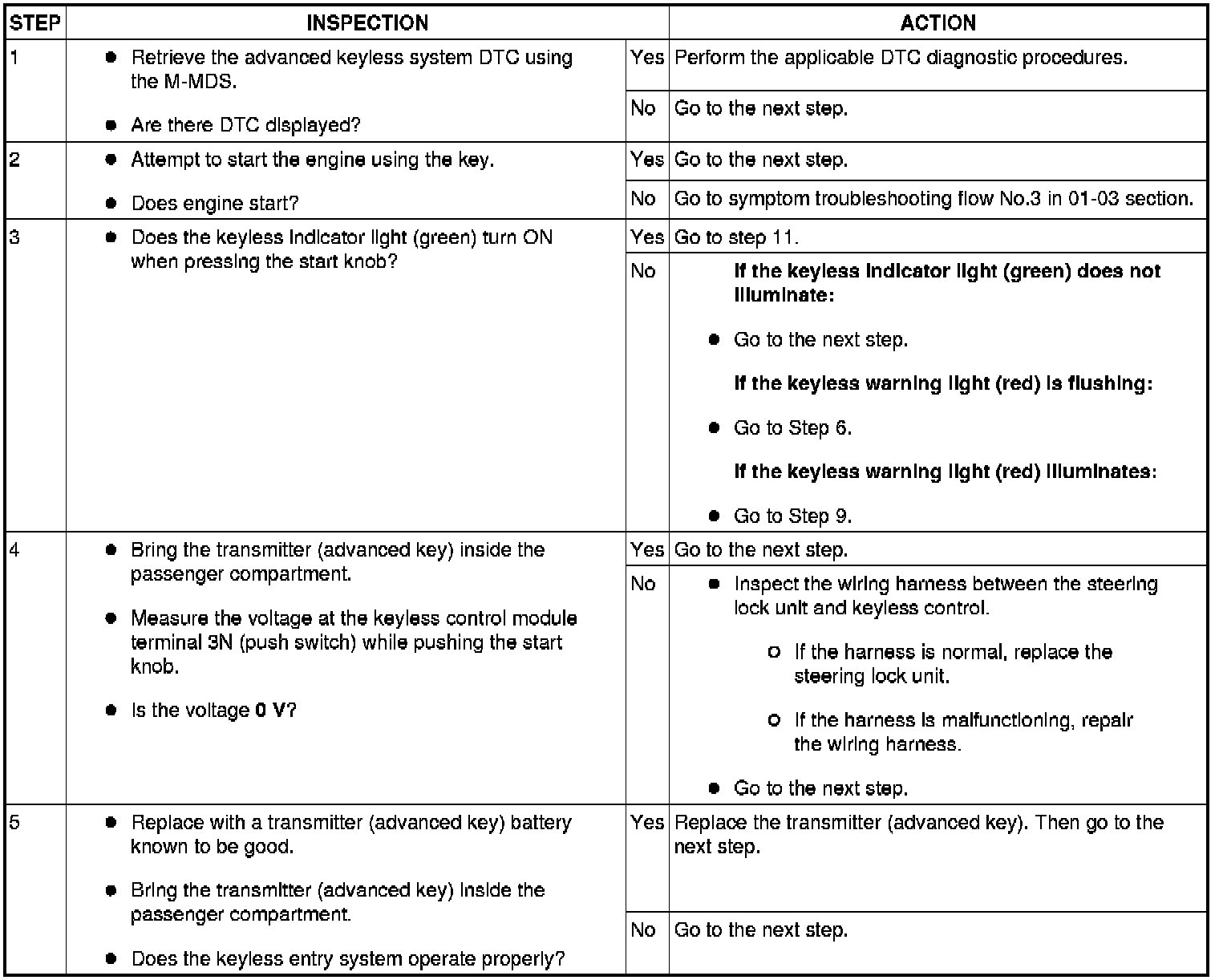

Step 1-Step 5:

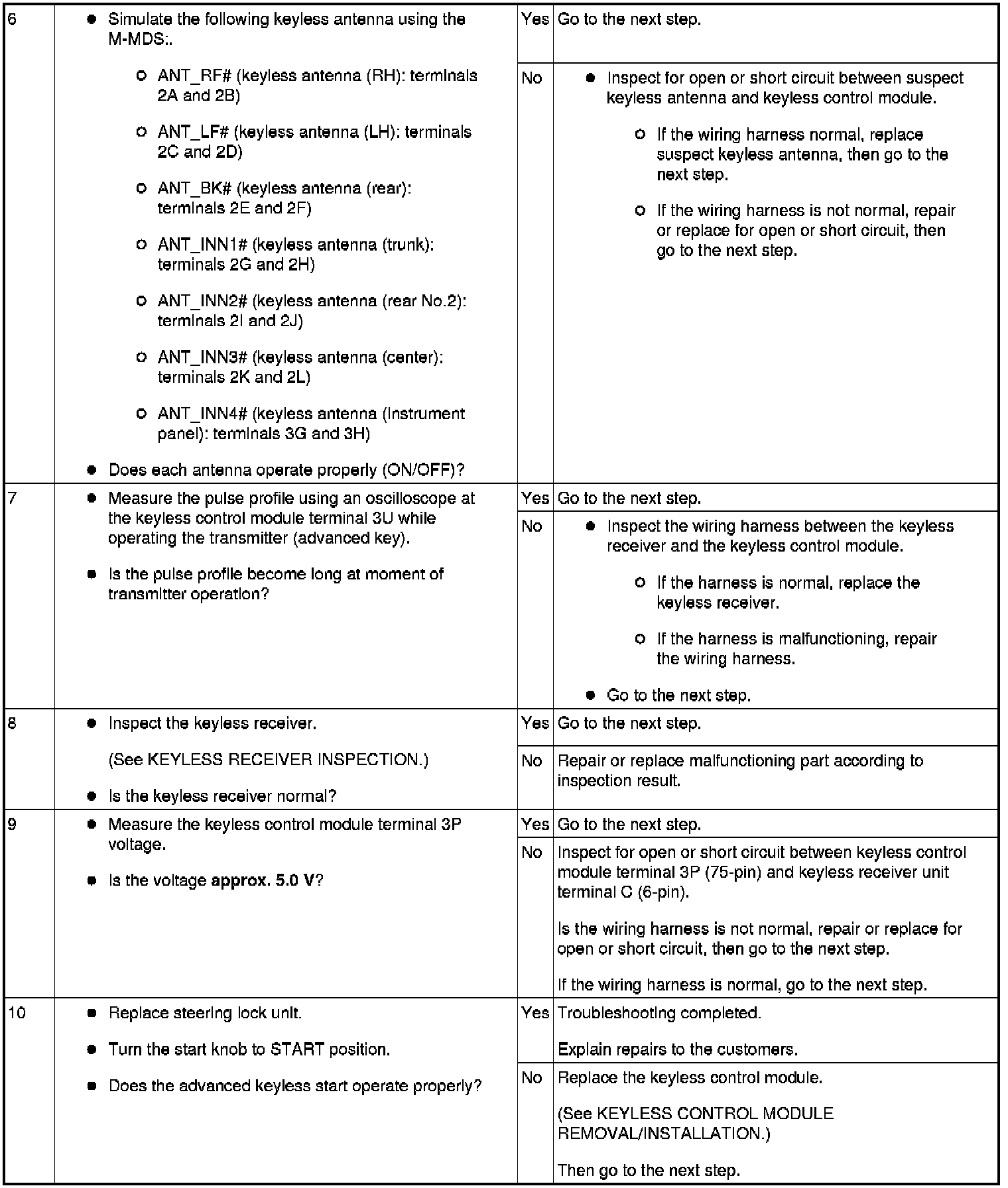

Step 6-Step 10:





Step 11:
