No.3 Advanced Keyless Entry Function Inoperative - Advanced Keyless And Start System




NO.3 ADVANCED KEYLESS ENTRY FUNCTION INOPERATIVE [ADVANCED KEYLESS AND START SYSTEM]

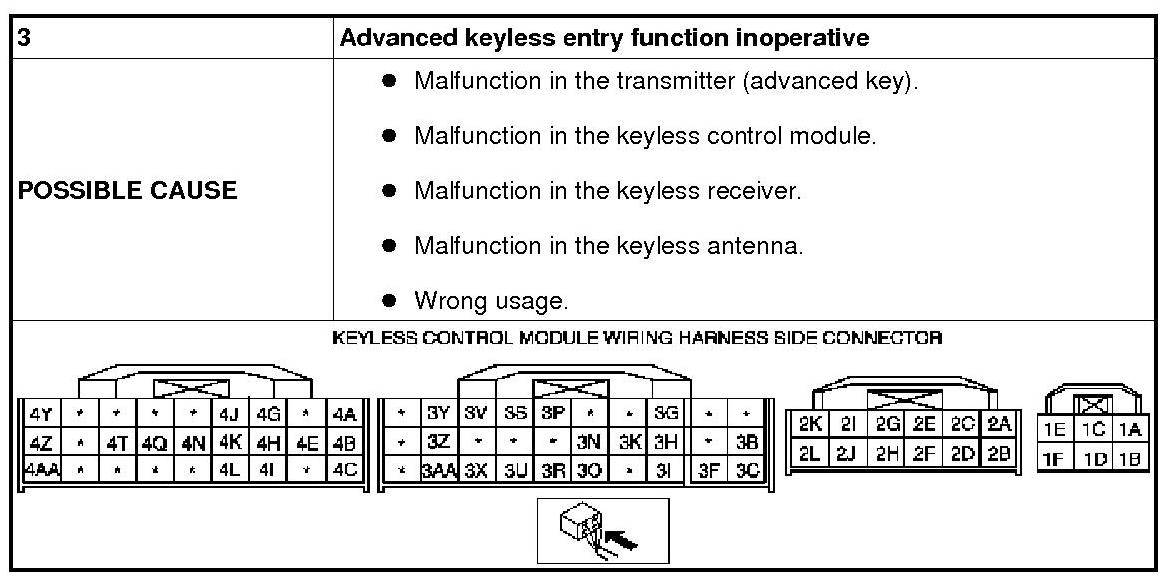

Possible Cause:





Diagnostic procedure

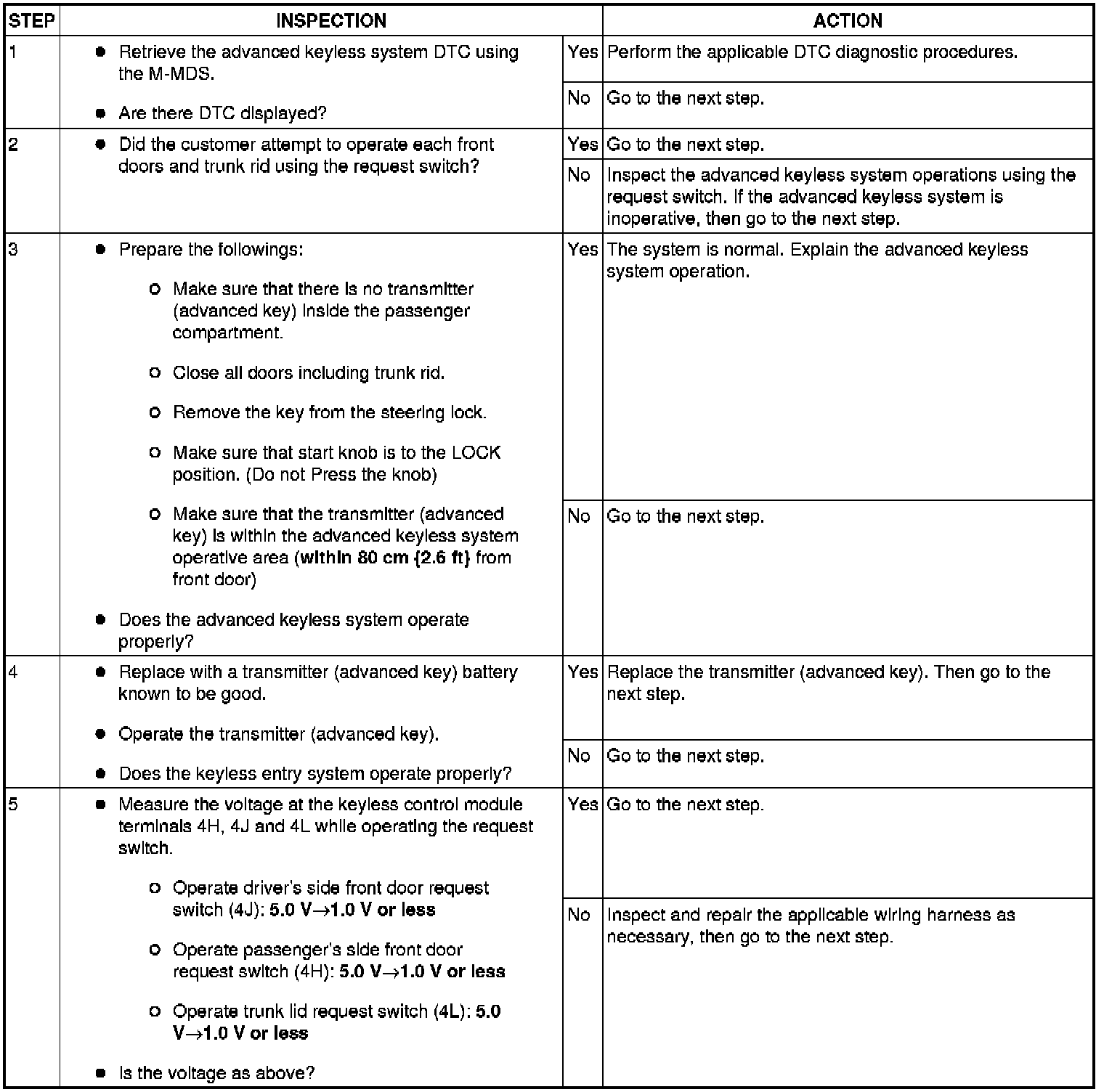

Step 1-Step 5:

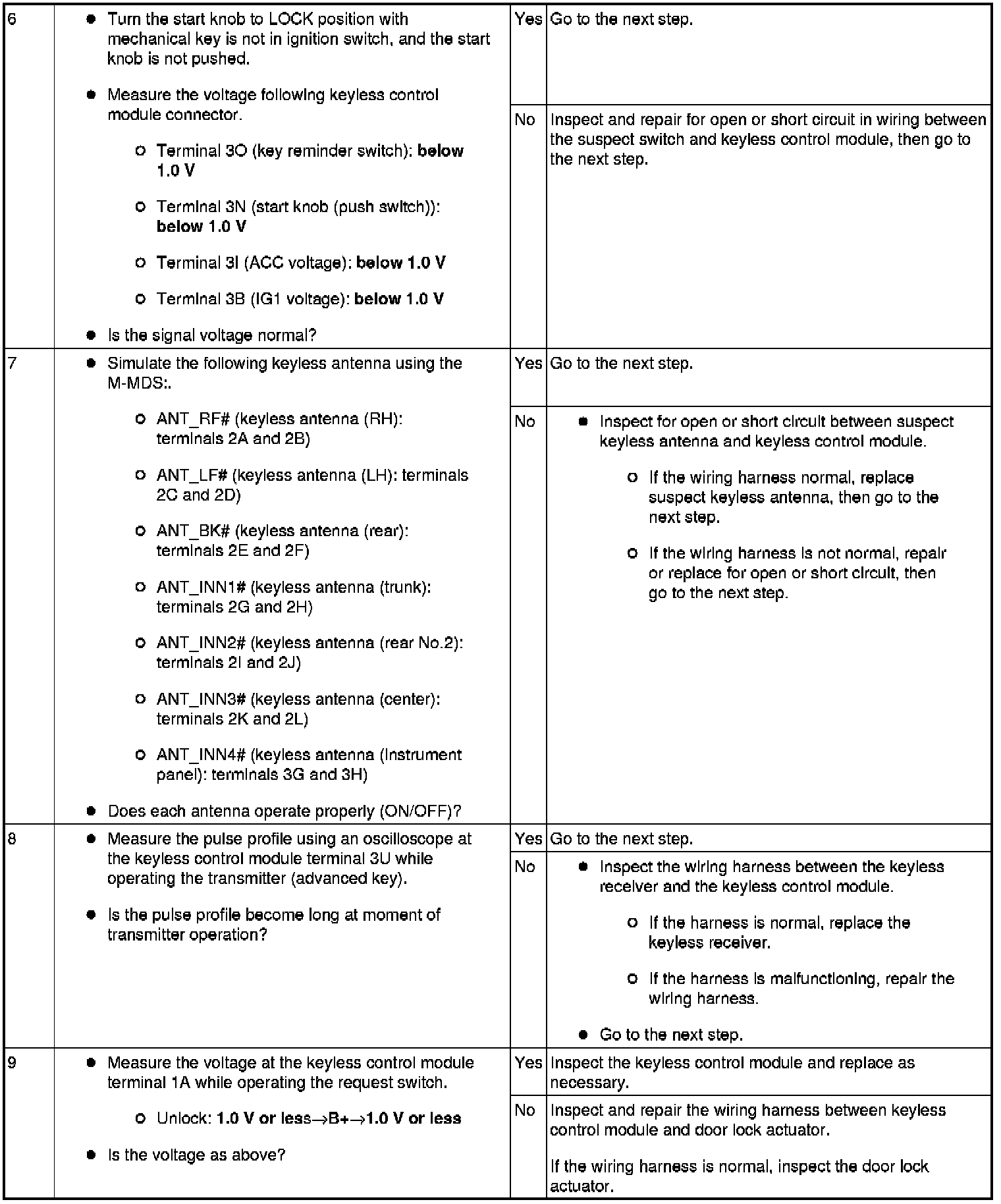

Step 6-Step 9:





Step 10:
