Air Bag System Location Index - Standard Deployment Control System [SAS Control Module]

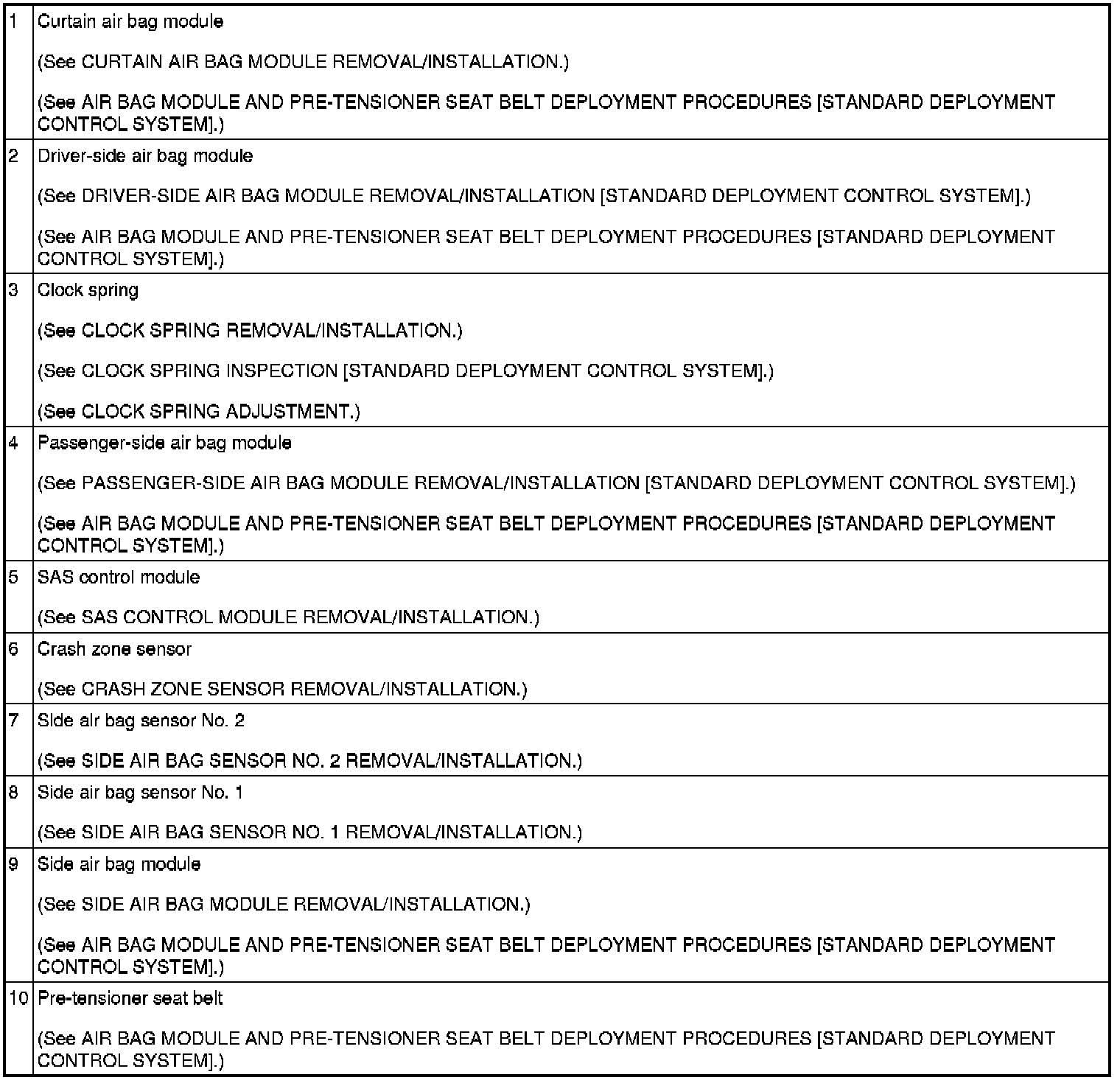

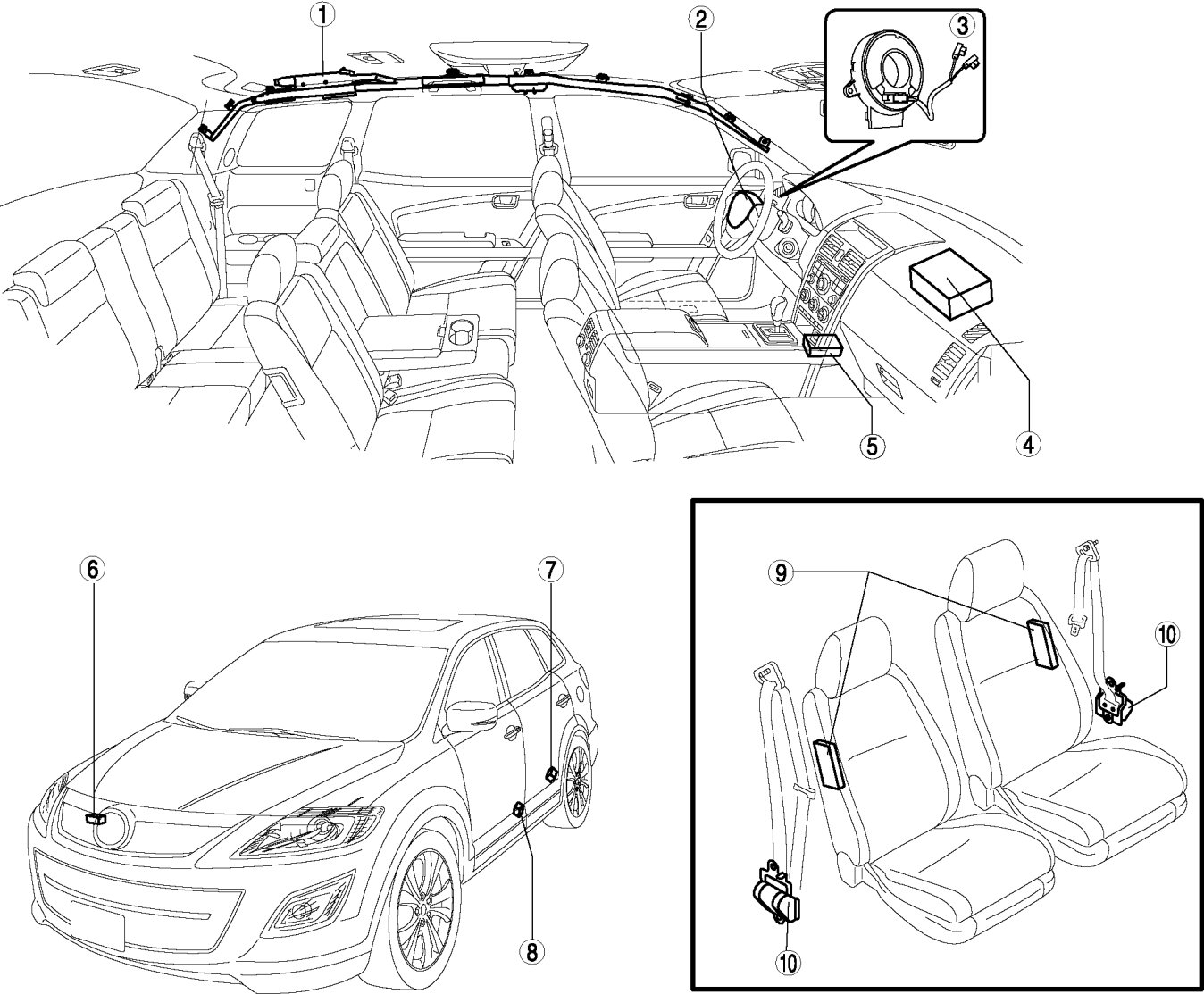

AIR BAG SYSTEM LOCATION INDEX [STANDARD DEPLOYMENT CONTROL SYSTEM]
