Driver-Side Air Bag Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Driver-Side Air Bag Module

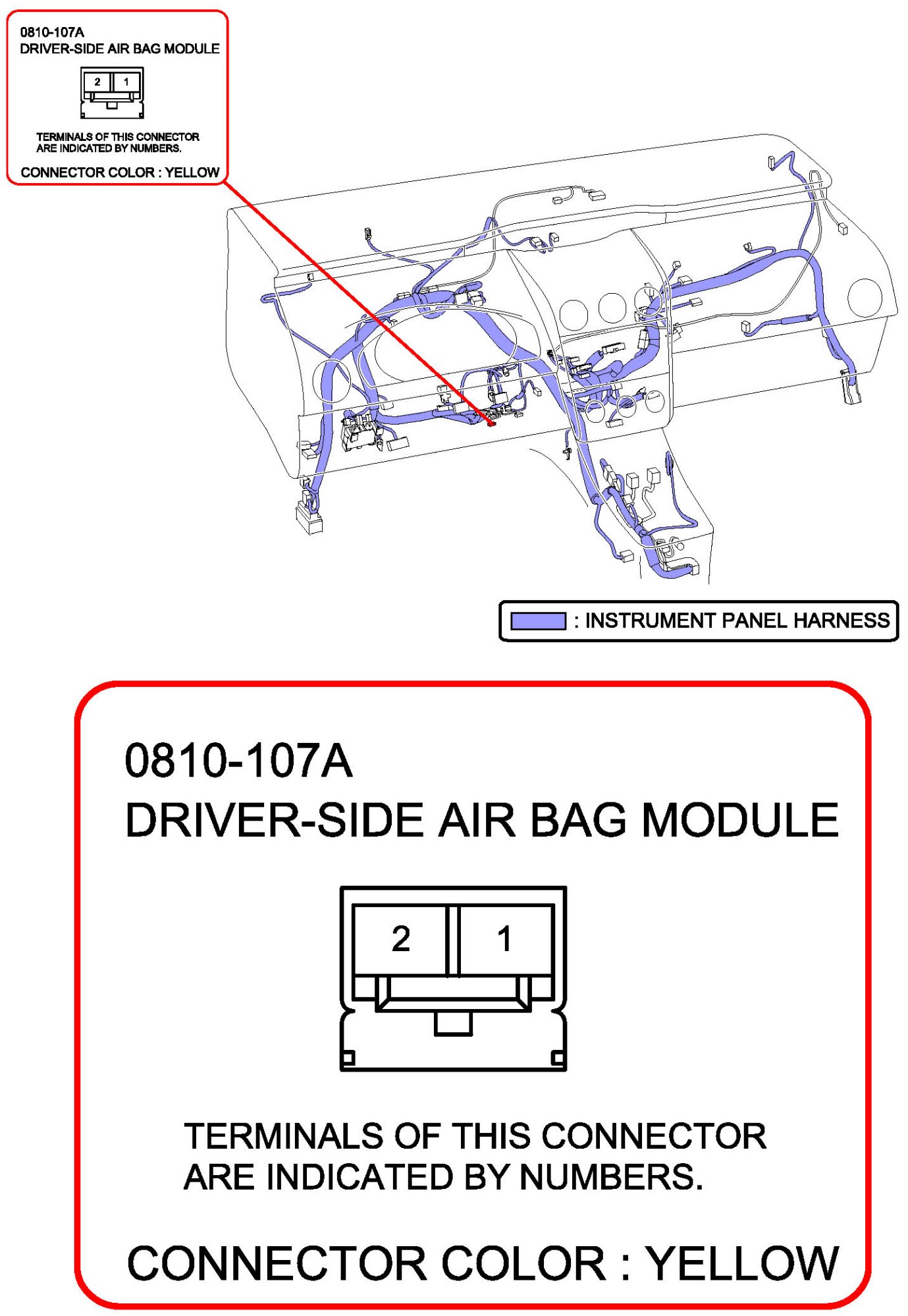

Driver-Side Air Bag Module:

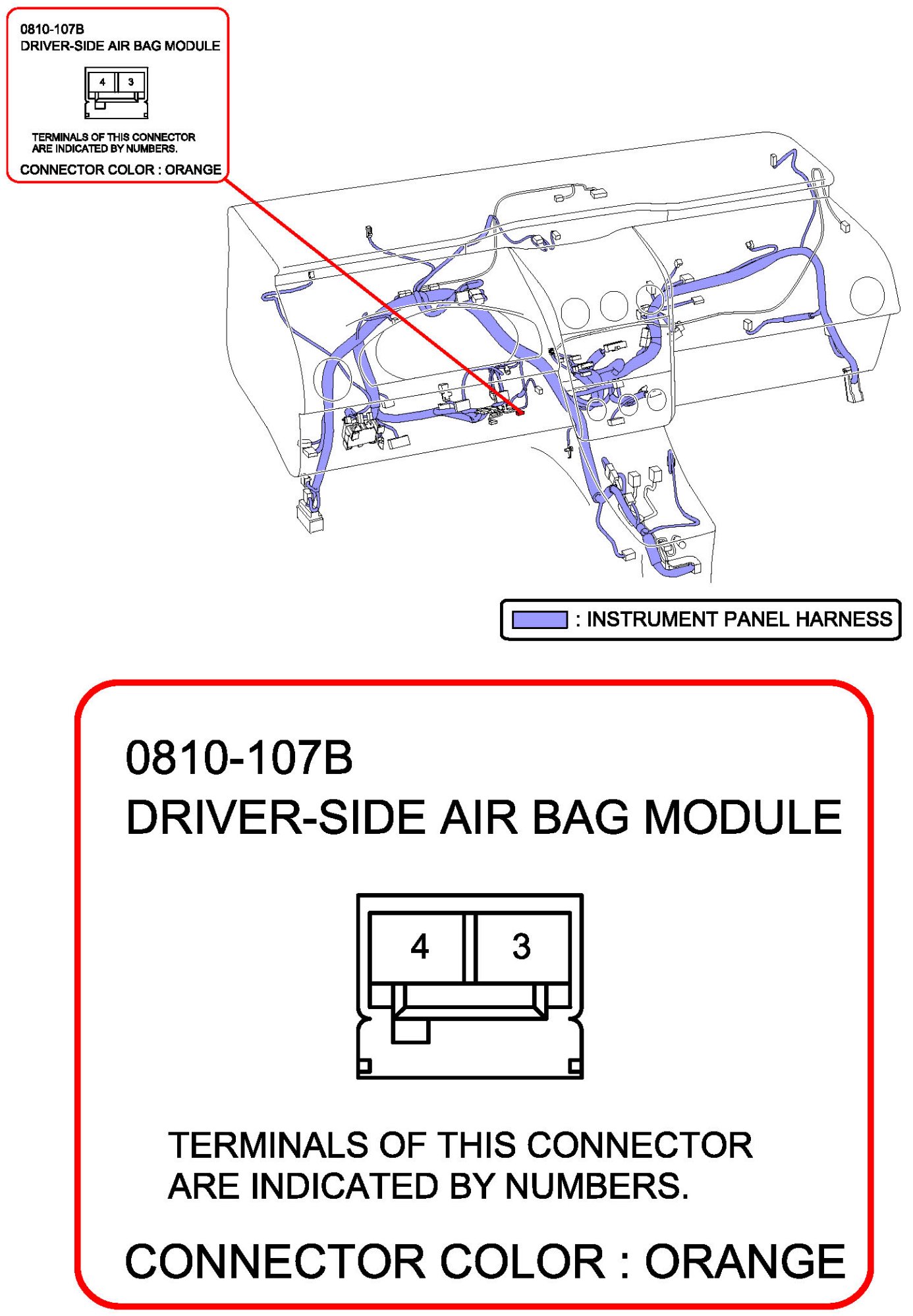

Driver-Side Air Bag Module:
