Sliding Door Glass Removal/Installation

  1. Fully open the sliding door glass.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  3. Disconnect the negative battery cable.
  4. Remove the side door garnish. (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
  5. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  6. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
  7. Remove the bolt and screw.
    Fig 1: Bolt And Screw With Torque Specifications
    G06762226Courtesy of MAZDA MOTORS CORP.
  8. Remove the sliding door glass guide and glass run channel as a single unit.
  9. Connect the negative battery cable.
  10. Connect the power window subswitch connector.
    Fig 2: Identifying Door Glass Guide And Glass Run Channel
    G06762227Courtesy of MAZDA MOTORS CORP.
  11. Adjust the sliding door glass position as shown in the illustration.
  12. Remove the hole cover.
    Fig 3: Adjusting Door Glass Position
    G06762228Courtesy of MAZDA MOTORS CORP.
  13. Remove the screw.
  14. Lift the sliding door glass up and remove it by sliding it to the vehicle rear.
  15. Install in the reverse order of removal.

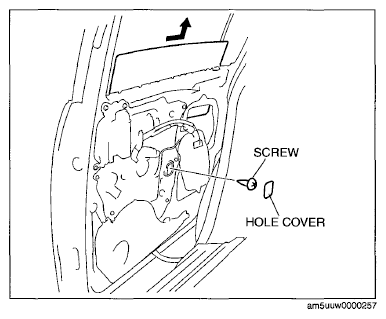

    Fig 4: Lifting Sliding Door Glass Up Position
    G06762229Courtesy of MAZDA MOTORS CORP.
