Audio Control Switch Removal/Installation: Notes

  1. Turn the ignition switch to the LOCK position.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  3. Disconnect the negative battery cable and wait for 1 min or more  .
  4. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
  5. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table in illustration.

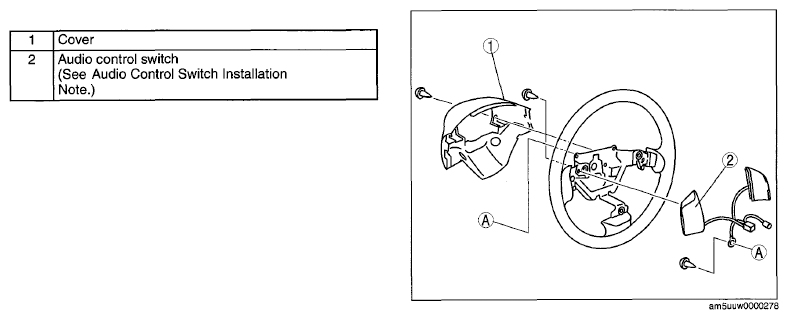

    Fig 1: Identifying Audio Control Switch Remove/Install Components
    G06762630Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
