Without Rain Sensor

  1. Insert a Flathead screwdriver between the mirror and the base.
  2. Push the base pin down to remove the rearview mirror.

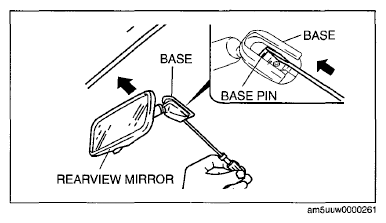

    Fig 1: Inserting Flathead Screwdriver Between Mirror And Base
    G06762303Courtesy of MAZDA MOTORS CORP.
