Windshield Washer Switch: Service and Repair




WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the meter hood. Meter Hood Removal/Installation

4. Remove the column cover. Service and Repair

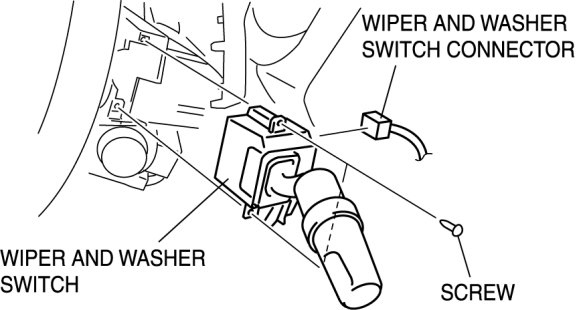

5. Disconnect the wiper and washer switch connector.






6. Remove the screws, then remove the wiper and washer switch.

7. Install in the reverse order of removal.
