Map Light: Testing and Inspection

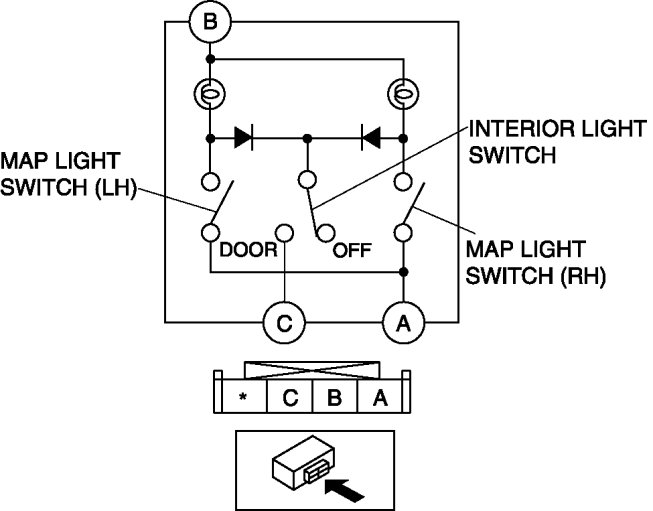

MAP LIGHT INSPECTION

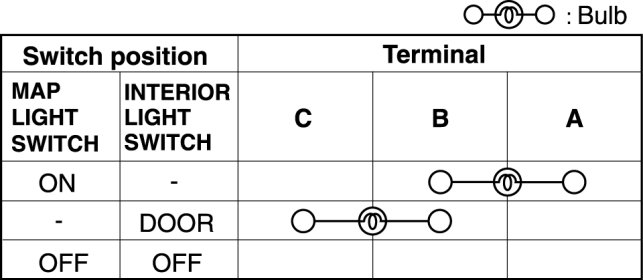

1. Verify that the continuity between the map light terminals is as indicated in the table.

- If not as indicated in the table, replace the map light.
