DTC P0137:00: Notes
DTC P0137:00 (L3 WITH TC) DETECTION CONDITION & POSSIBLE CAUSES
| DTC P0137:00 |
HO2S circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the HO2S. If the input voltage from the HO2S is below -1.15 V
or if HO2S bias voltage is below 1.3 V
for 5 s
while the HO2S is active, the PCM determines that the circuit input is low.
Diagnostic support note
- This is an intermittent monitor (A/F sensor, HO2S).
- The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
- PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|

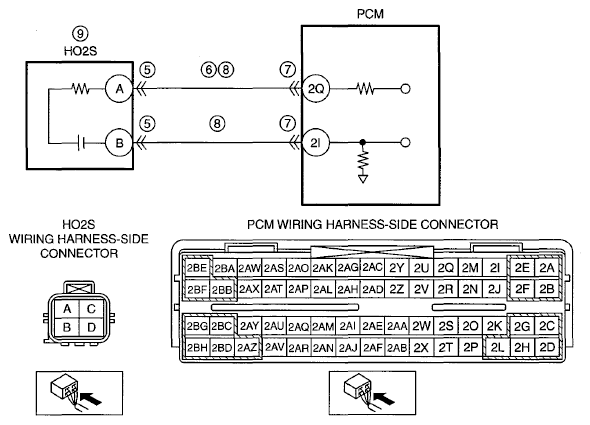

| POSSIBLE CAUSE |
- HO2S connector or terminals malfunction
- Short to ground in wiring harness between HO2S terminal A and PCM terminal 2Q
- PCM connector or terminals malfunction
- Open circuit in wiring harness between the following terminals:
- HO2S terminal A-PCM terminal 2Q
- HO2S terminal B-PCM terminal 2I
- HO2S malfunction
- PCM malfunction
|
