DTC B10C6:1F [Advanced Keyless Entry And Push Button Start System]: Notes
DTC B10C6:1F (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Erratic signal of keyless antenna (exterior, rear) |
| DETECTION CONDITION |
- Keyless control module detects the open circuit in keyless antenna (exterior, rear) circuit.
|
| POSSIBLE CAUSE |
- Keyless antenna (exterior, rear) connector or terminals malfunction
- Keyless control module connector or terminals malfunction

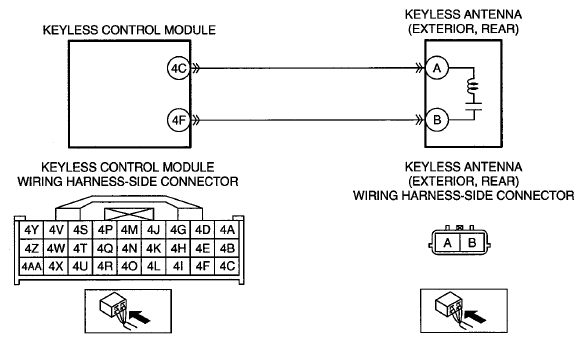

- Short to ground in the wiring harness between the following terminals:
- Keyless antenna (exterior, rear) terminal A-Keyless control module terminal 4C
- Keyless antenna (exterior, rear) terminal B-Keyless control module terminal 4F
- Open circuit in the wiring harness between the following terminals:
- Keyless antenna (exterior, rear) terminal A-Keyless control module terminal 4C
- Keyless antenna (exterior, rear) terminal B-Keyless control module terminal 4F
- Keyless antenna (exterior, rear) malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
