DTC B108C:23 [Advanced Keyless Entry And Push Button Start System]: Notes
DTC B108C:23 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Short to ground in push button start 2 circuit |
| DETECTION CONDITION |
- Keyless control module detects the push button start 2 signal for 120 s or more
.
|
| POSSIBLE CAUSE |
- Push button start connector or terminals malfunction
- Keyless control module connector or terminals malfunction

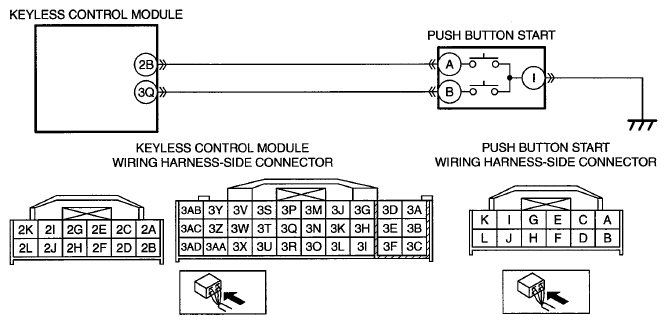

- Short to ground in wiring harness between the following terminals:
- Push button start terminal B-Keyless control module terminal 3Q
- Push button start malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
