DTC B100C:11 [Advanced Keyless Entry And Push Button Start System]: Notes
DTC B100C:11 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Short to ground in steering lock unit power supply circuit |
| DETECTION CONDITION |
- Steering lock unit power supply monitor is off for 0.2 s
when the steering lock unit power supply transistor is active.
|
| POSSIBLE CAUSE |
- Steering lock unit connector or terminals malfunction
- Keyless control module connector or terminals malfunction

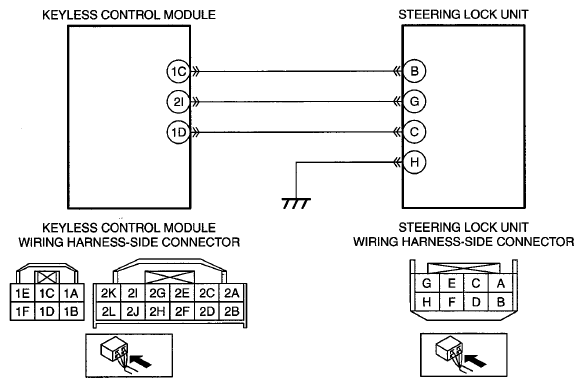

- Short to ground in wiring harness between the following terminals:
- Steering lock unit terminal B-Keyless control module terminal 1C
- Steering lock unit malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
