Control System Device And Control Relationship Chart

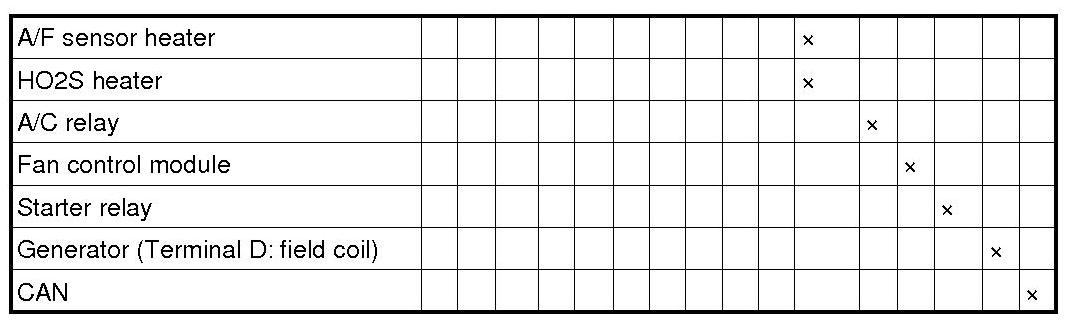

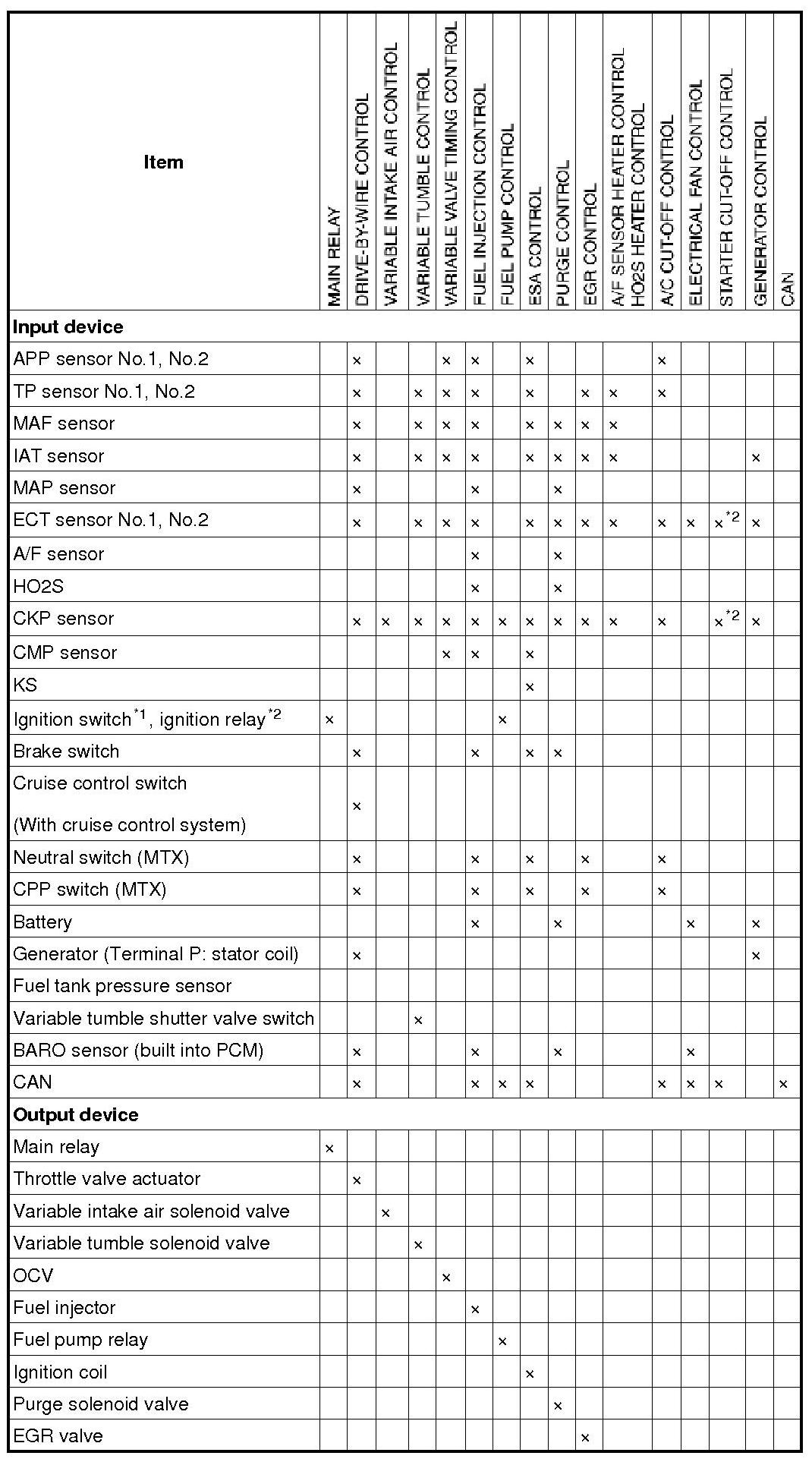

CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [LF, L5]
x: Applicable









*1
Without advanced keyless entry and push button start system
*2
With advanced keyless entry and push button start system
