Map Light: Testing and Inspection

MAP LIGHT INSPECTION

1. Disconnect the negative battery cable.

2. Remove the map light. Map Light Removal/Installation

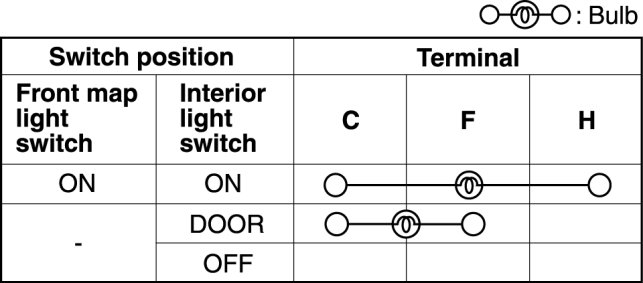

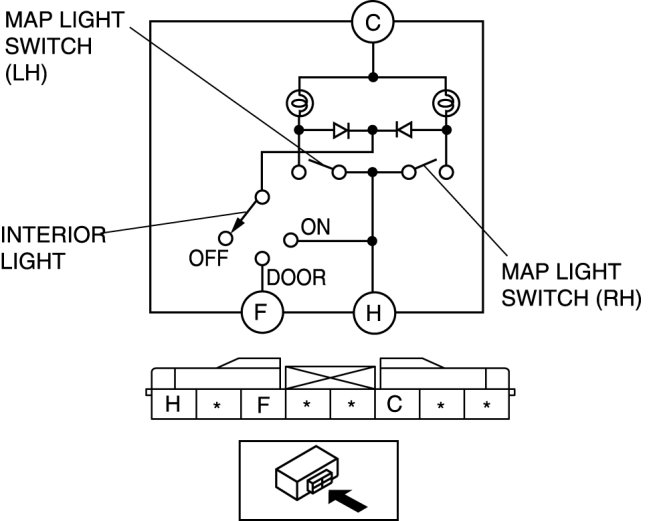

3. Verify that the continuity between the map light terminals is as indicated in the table.











- If not as indicated in the table, replace the map light.
