Engine Ignition Components - Exploded View

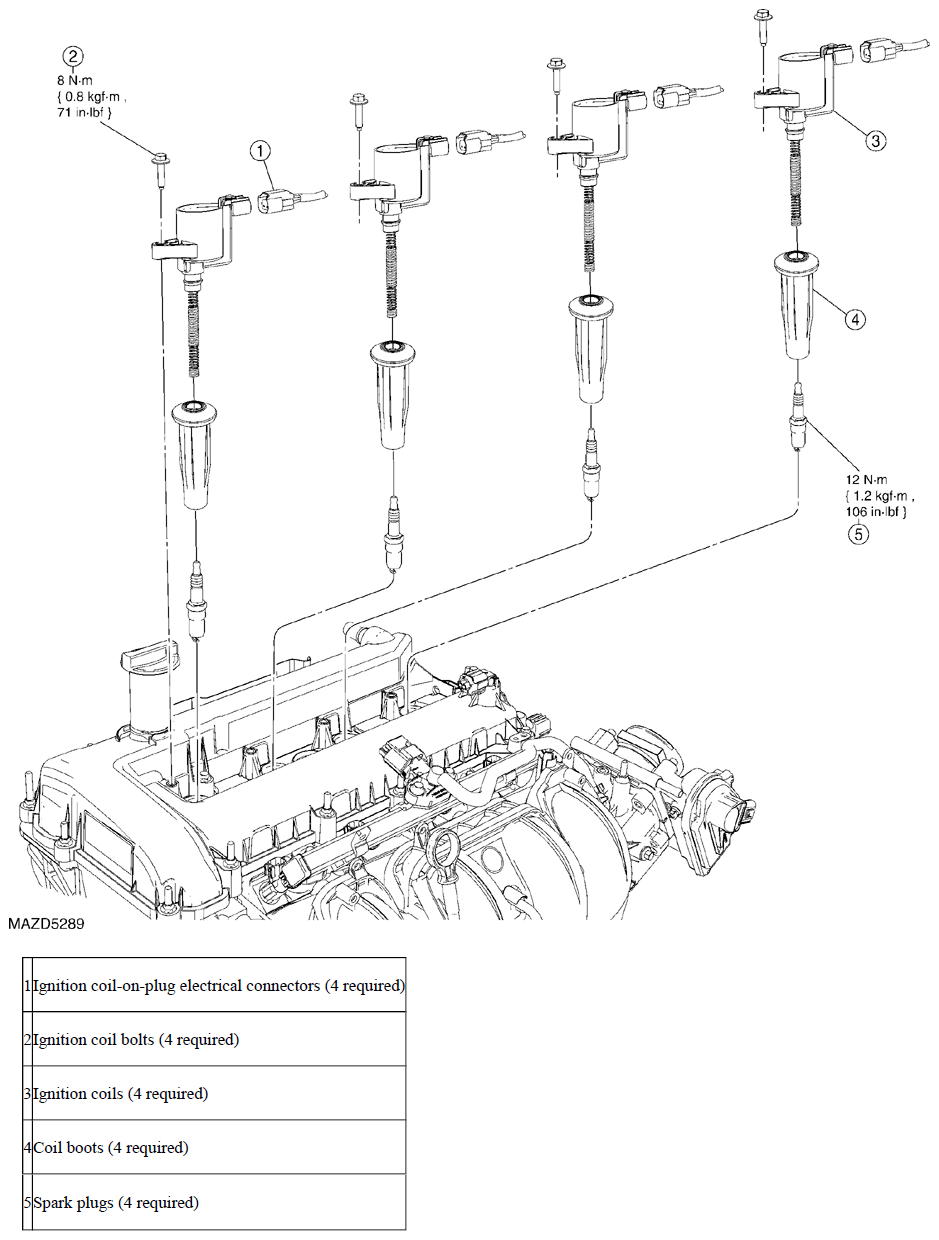

Fig 1: Exploded View Of Engine Ignition Components
G06702983Courtesy of MAZDA MOTORS CORP.

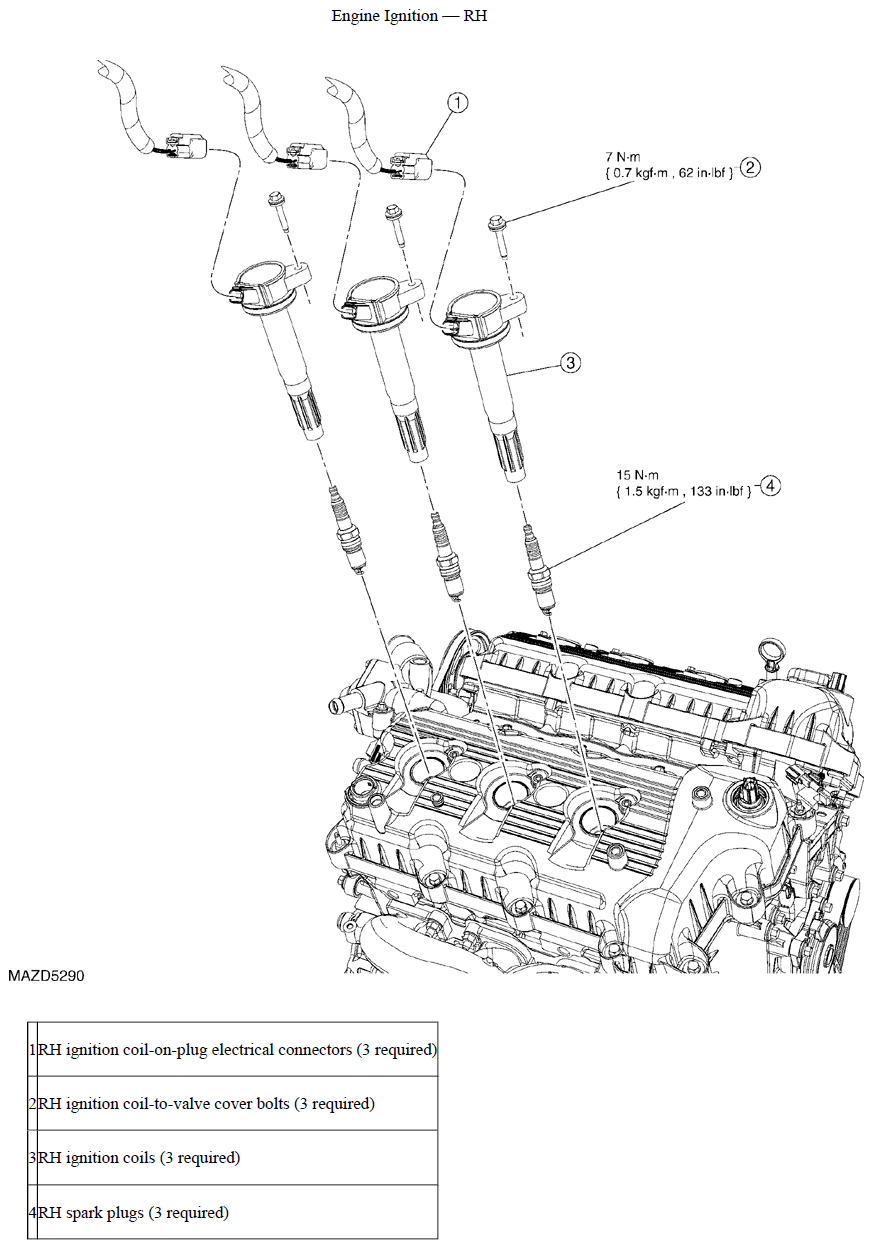

Fig 2: Identifying Engine Ignition - RH
G06702984Courtesy of MAZDA MOTORS CORP.

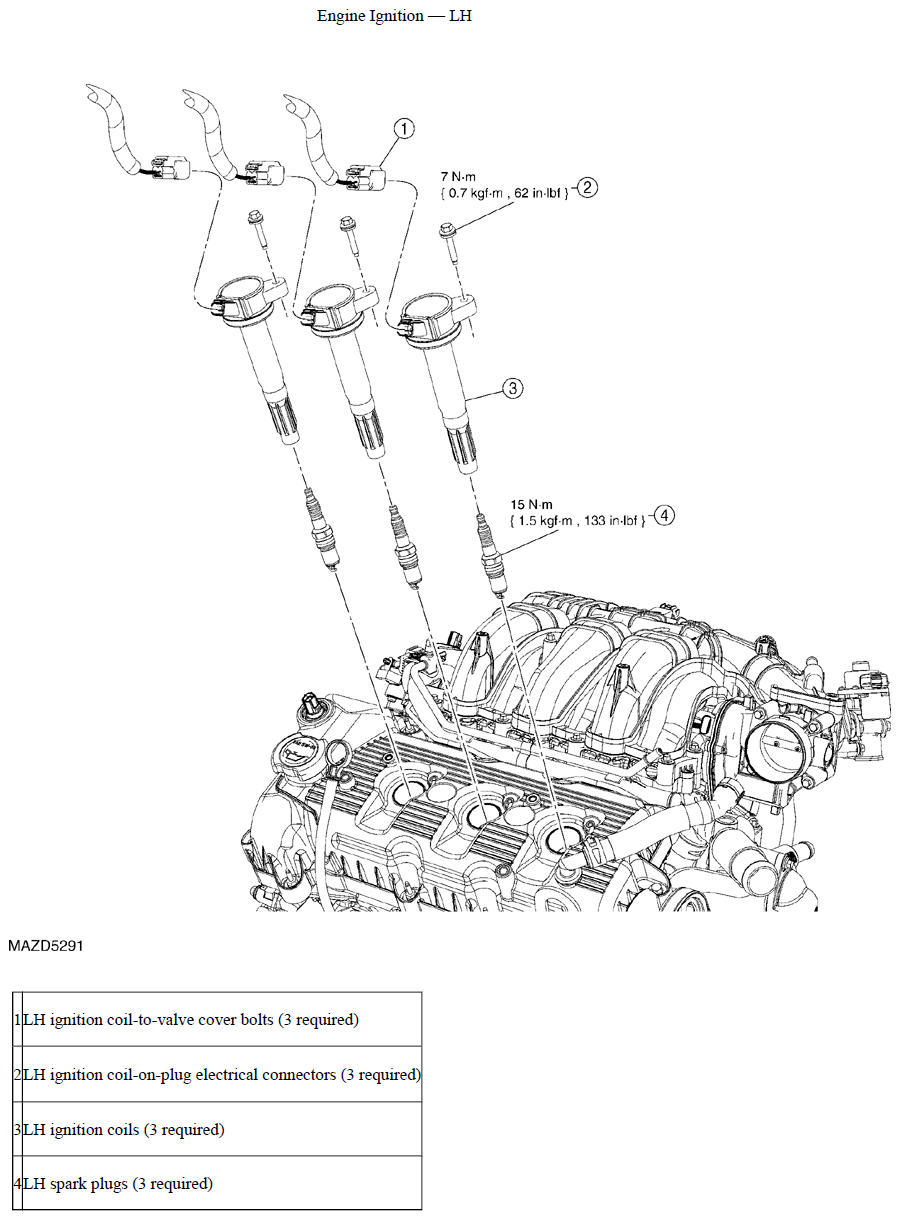

Fig 3: Identifying Engine Ignition - LH
G06702985Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see the appropriate procedure(s).
