Brake Pedal Angle Sensor

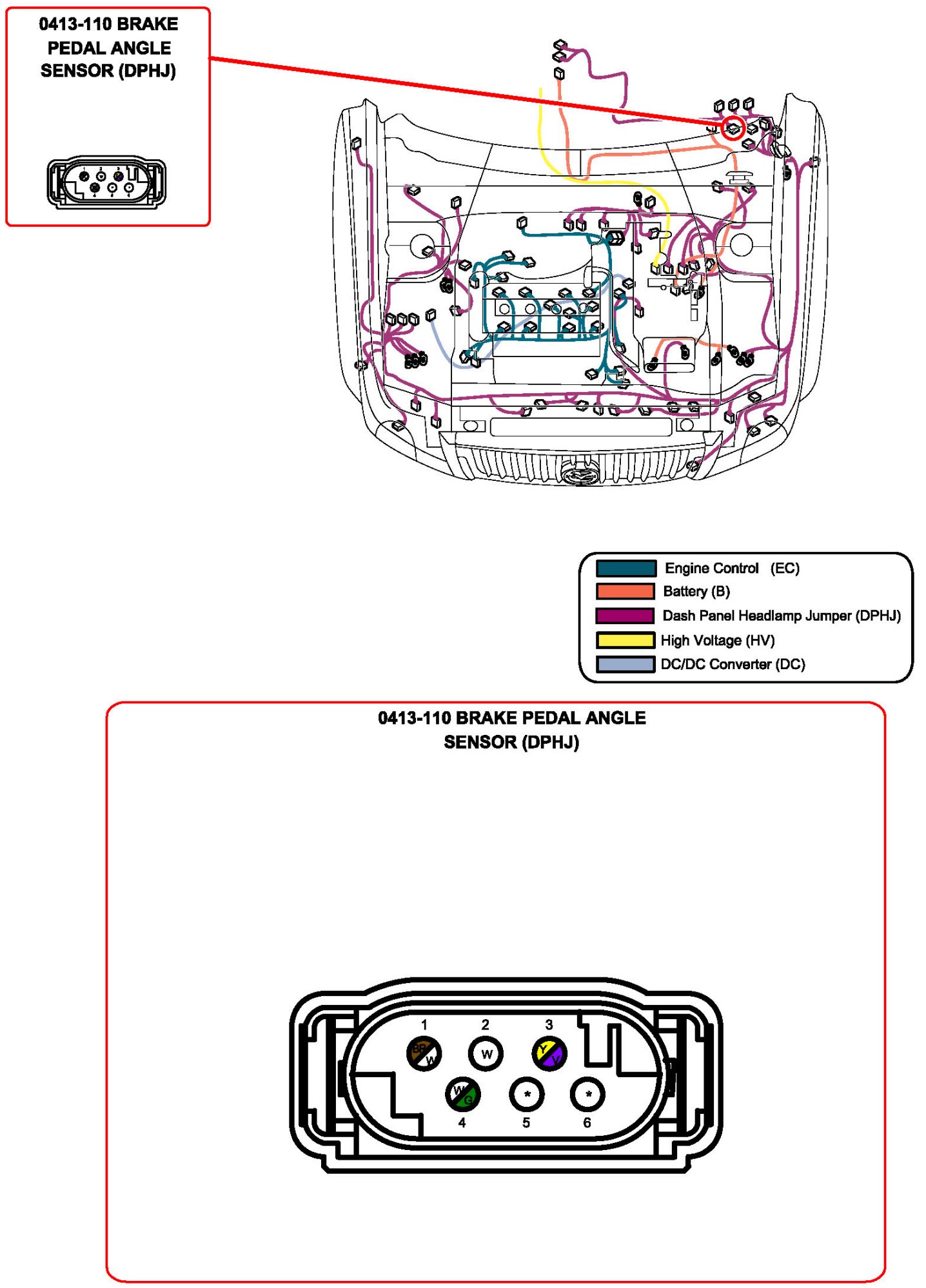

Brake Pedal Angle Sensor:



Simulator Fluid Pressure Sensor:

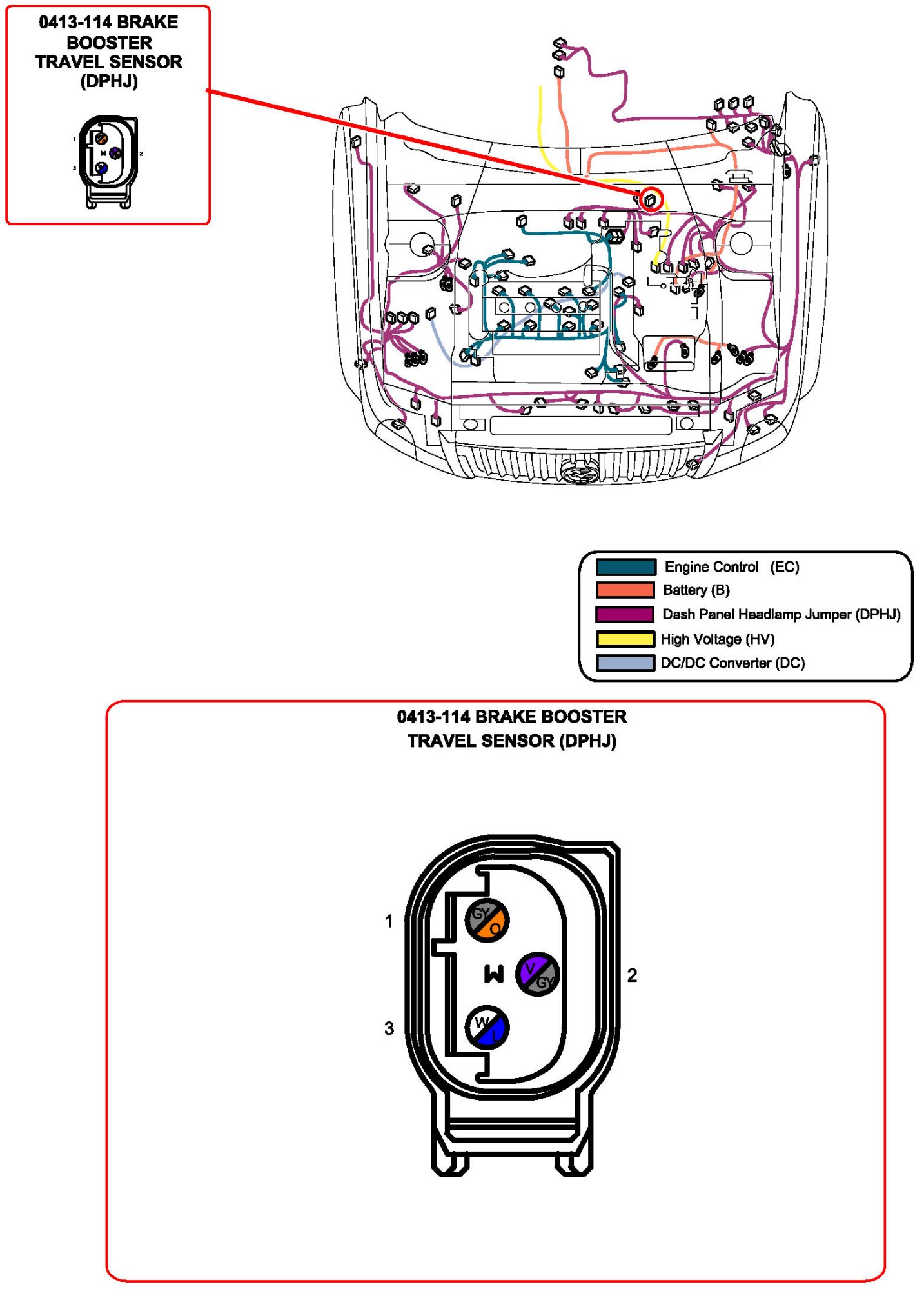

Brake Booster Travel Sensor:

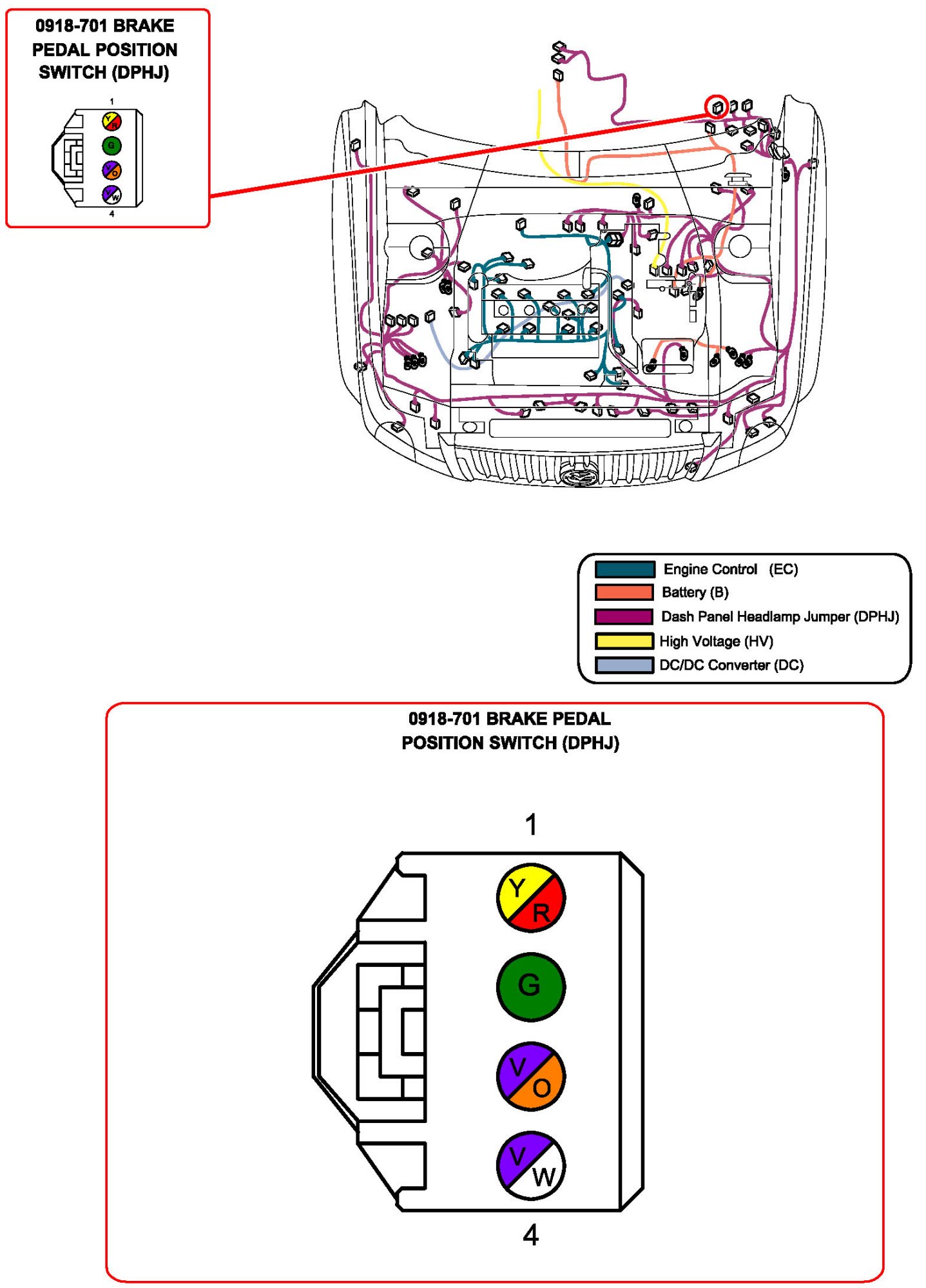

Brake Pedal Position Switch:
