Misfire Detection Monitor




MISFIRE DETECTION MONITOR

This pinpoint test is intended to diagnose the misfire detection monitor.Clearing the PCM DTCs erases any PCM recorded freeze frame data. Make sure to record any PCM freeze frame information before proceeding. See Electronic Engine Control (EEC) System.

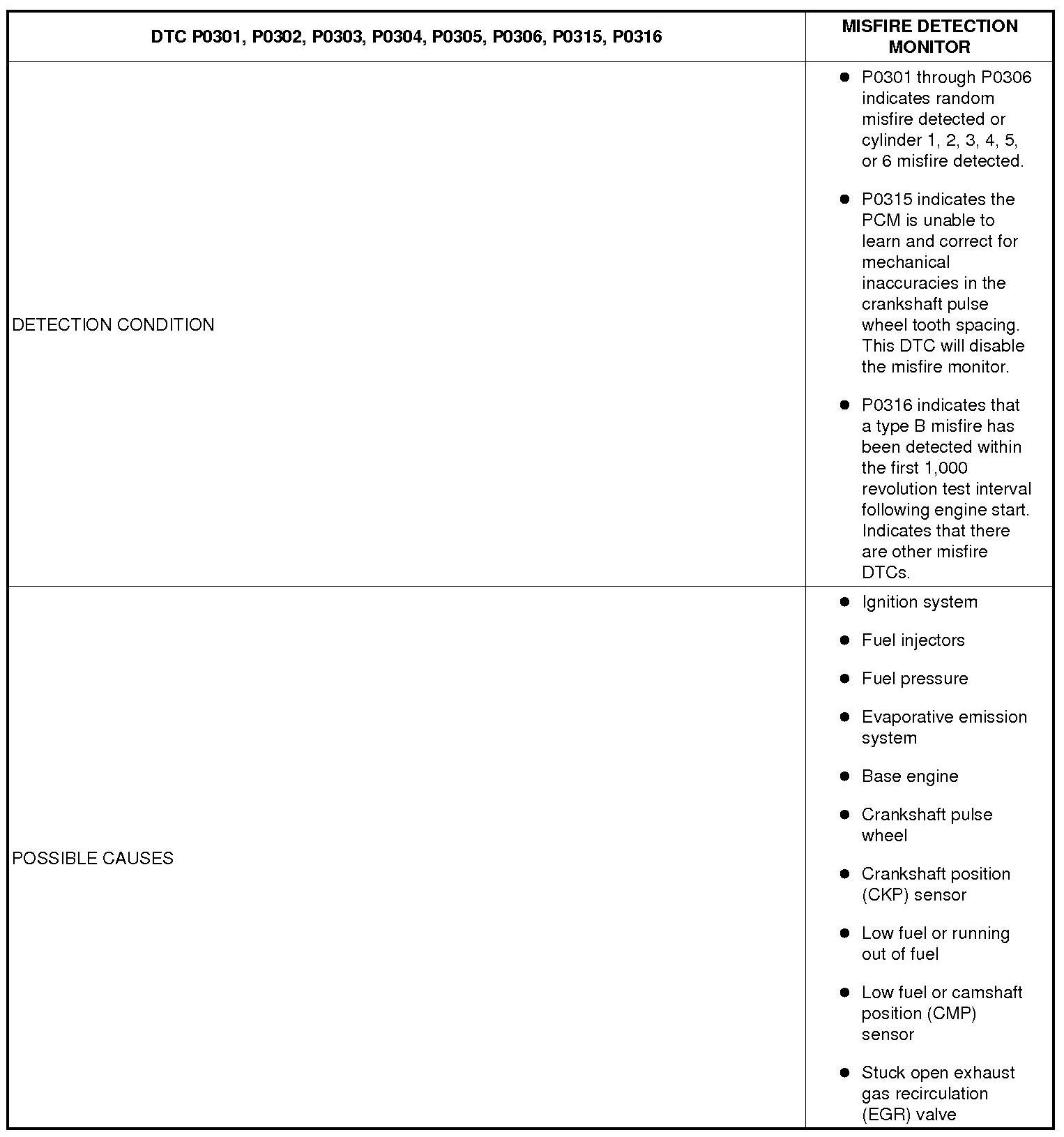

Detection Condition/Possible Causes (Part 1):





Detection Condition/Possible Causes (Part 2):

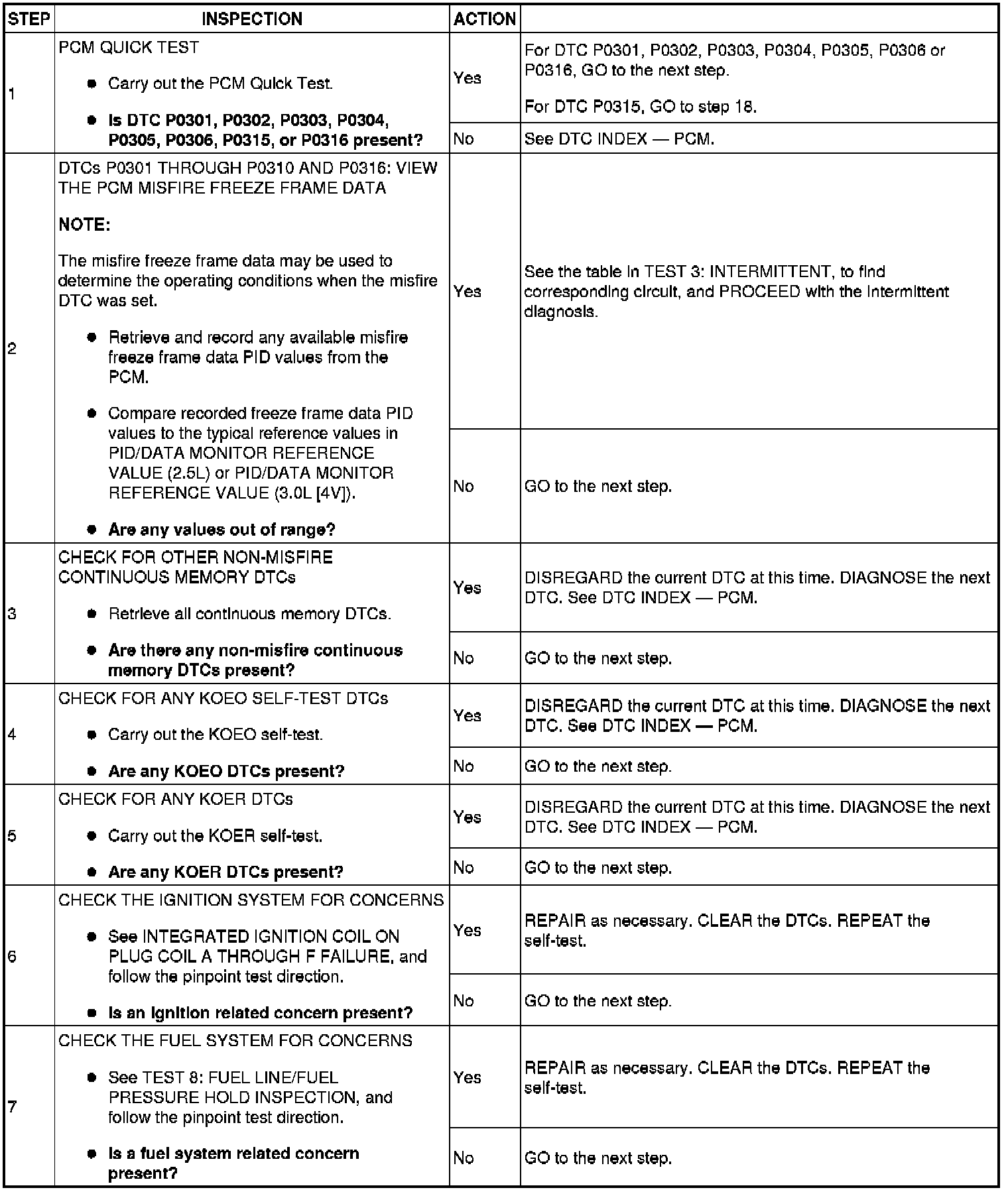

Step 1-Step 7:

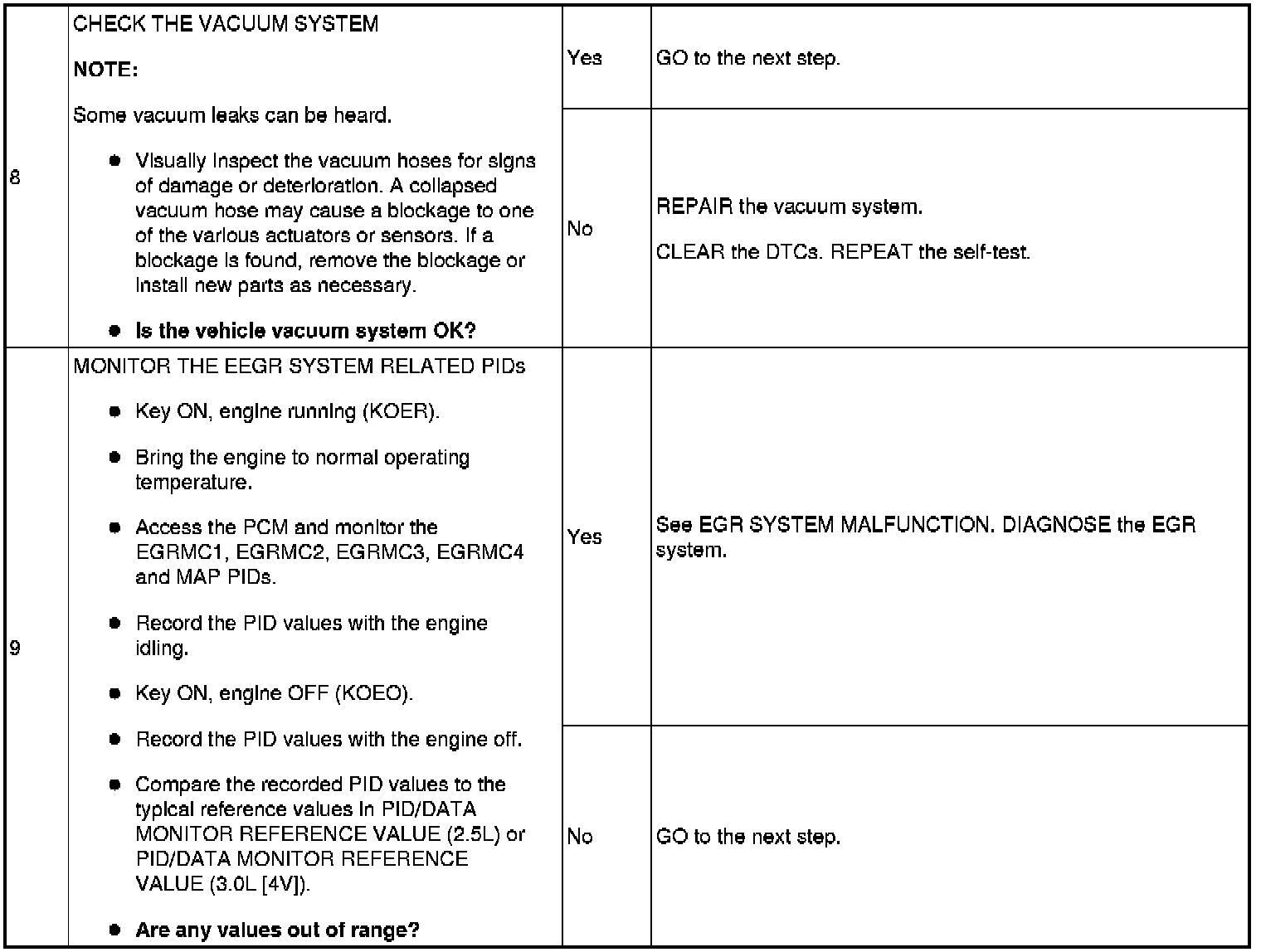

Step 8-Step 9:

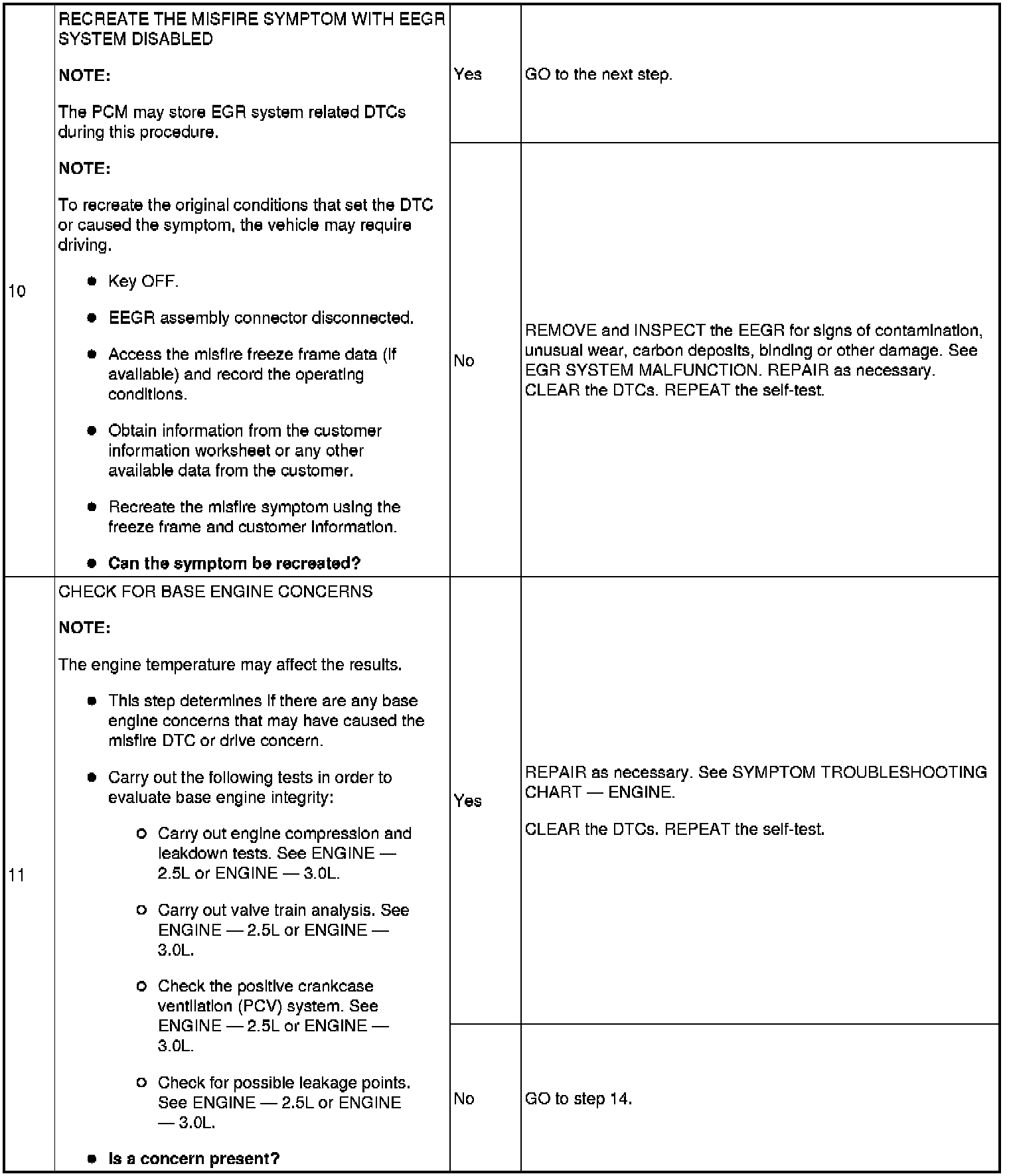

Step 10-Step 11:

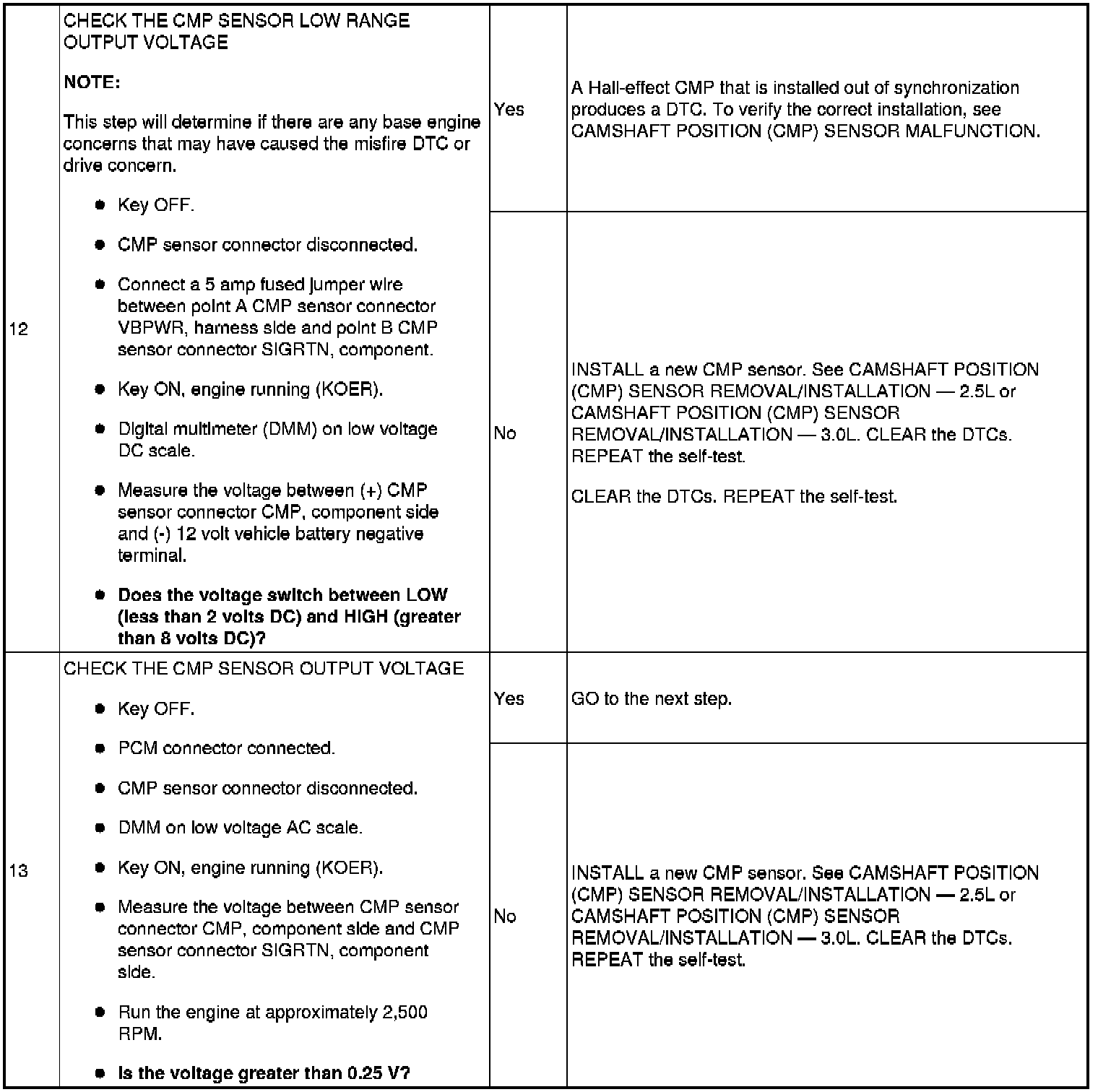

Step 12-Step 13:

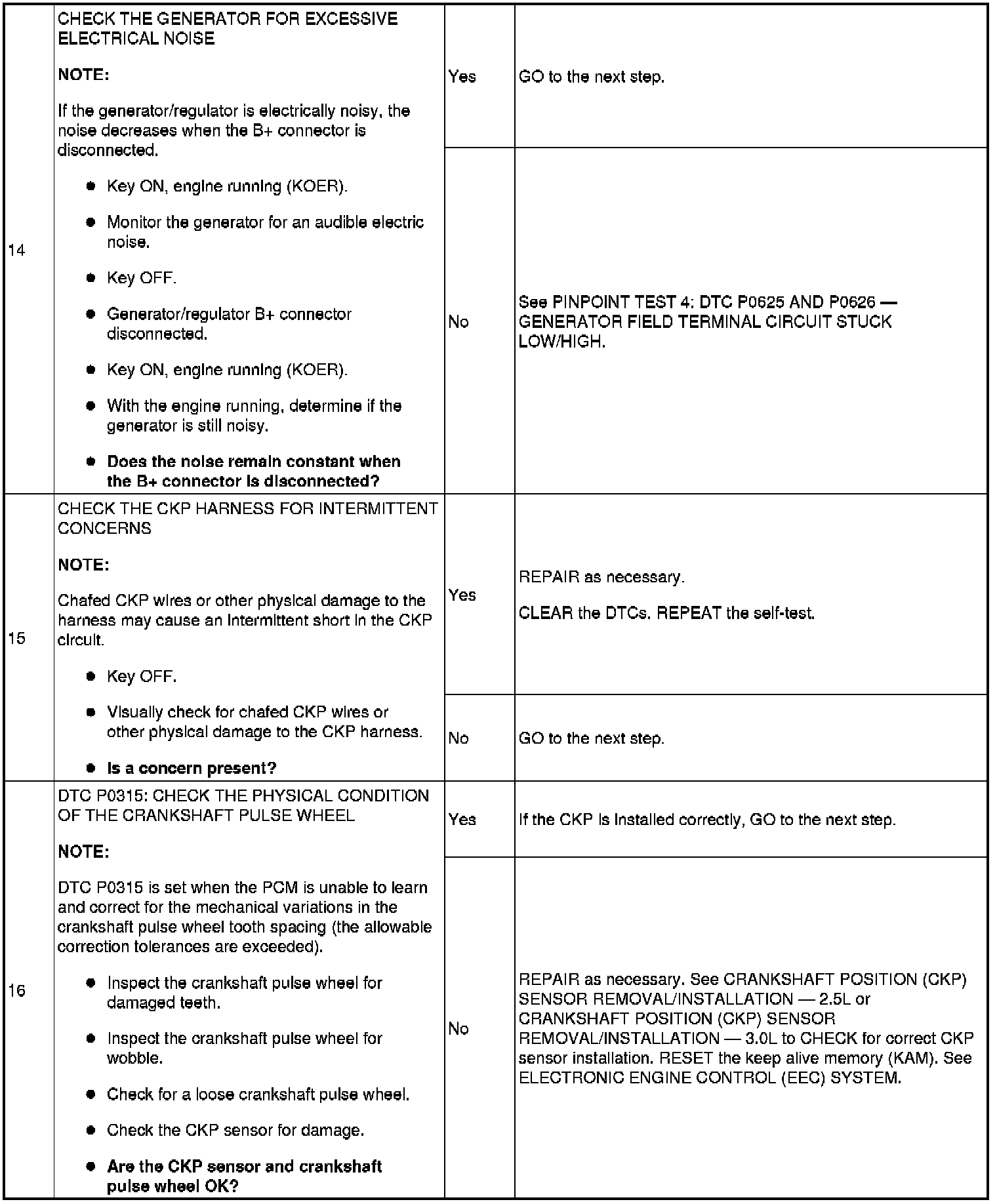

Step 14-Step 16:

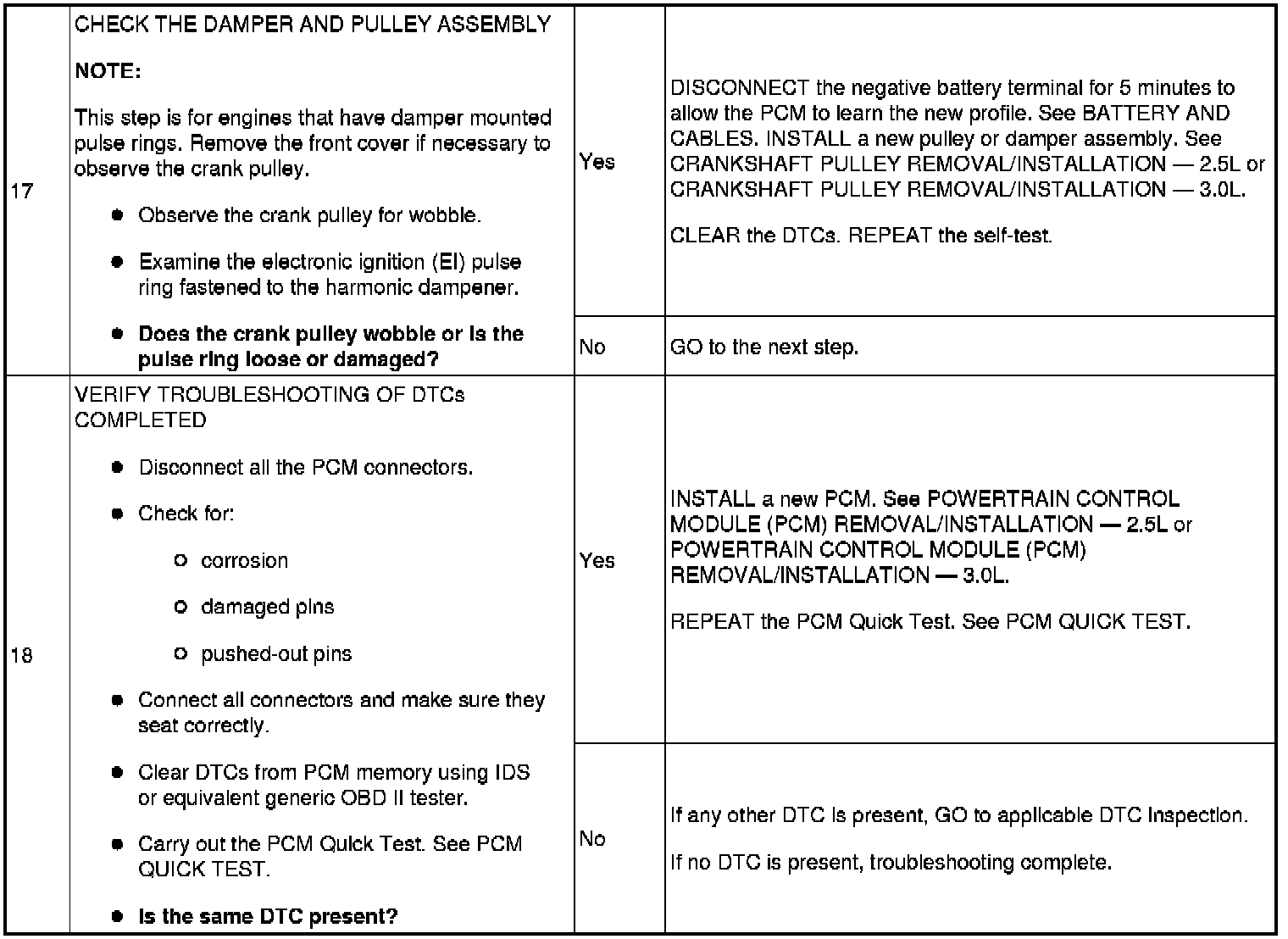

Step 17-Step 18:
