Climate Control Unit/Climate Control Unit Illumination

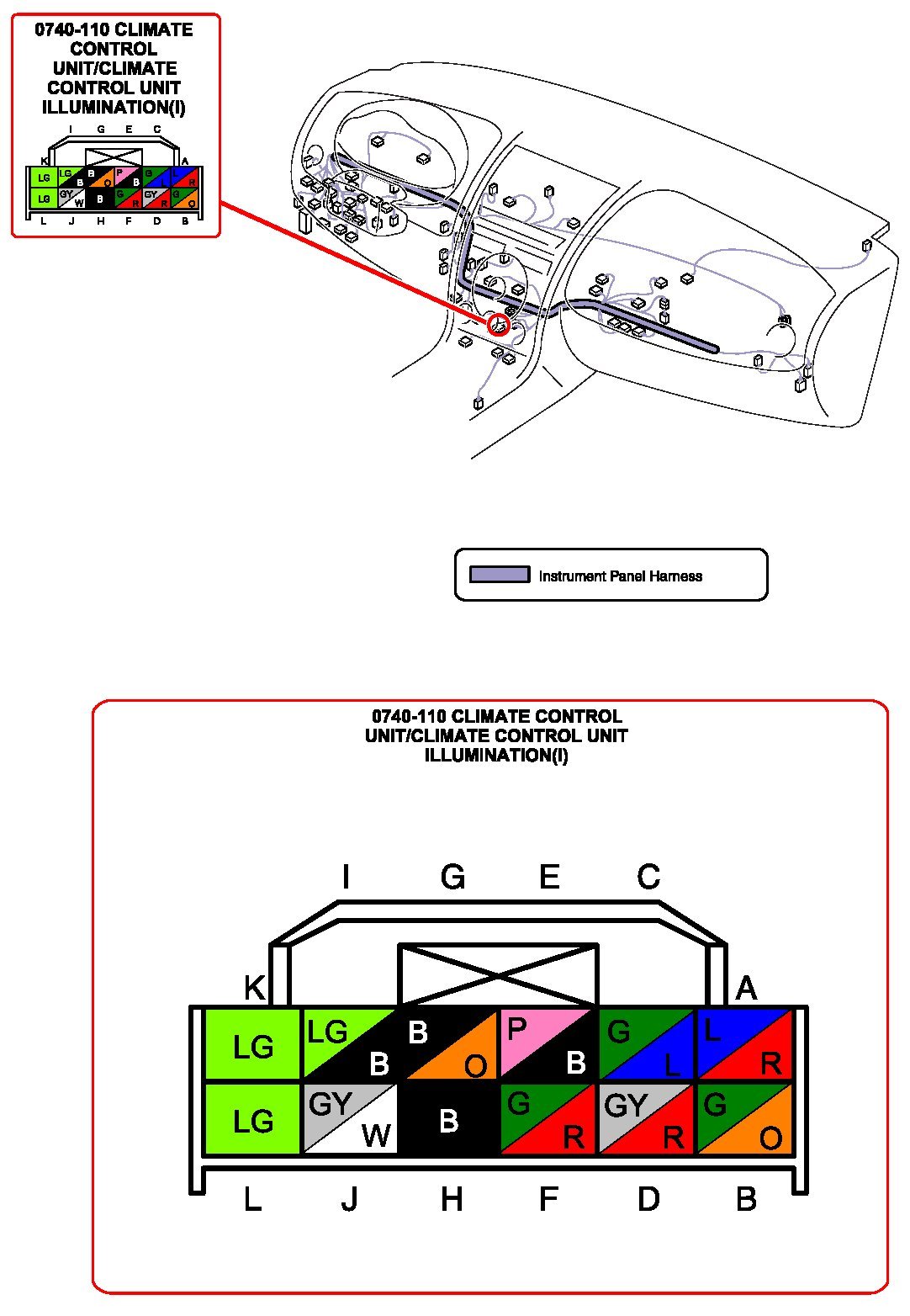

Climate Control Unit/Climate Control Unit Illumination (Manual Air Conditioner):

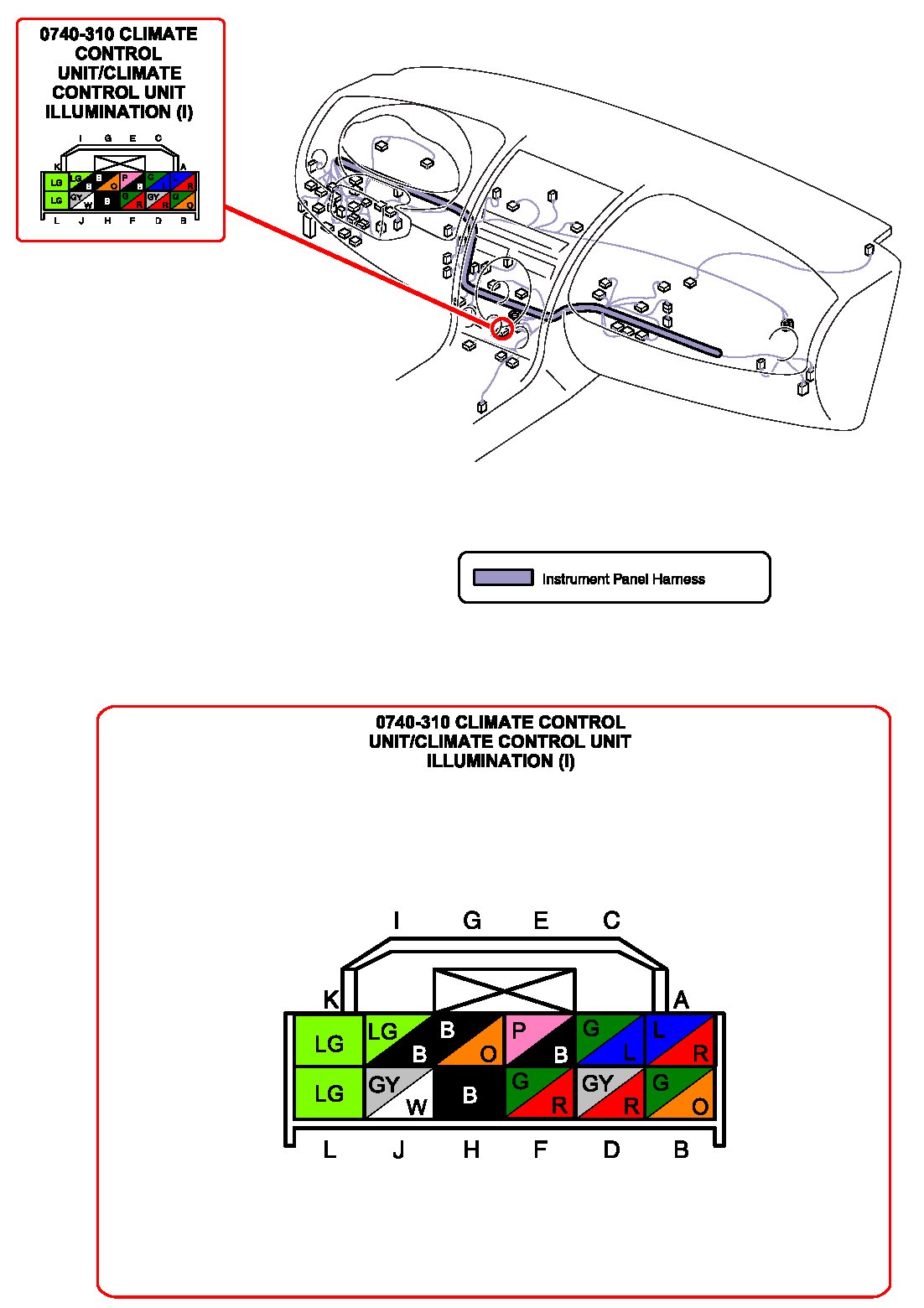

Climate Control Unit/Climate Control Unit Illumination (Full Auto Air Conditioner):
