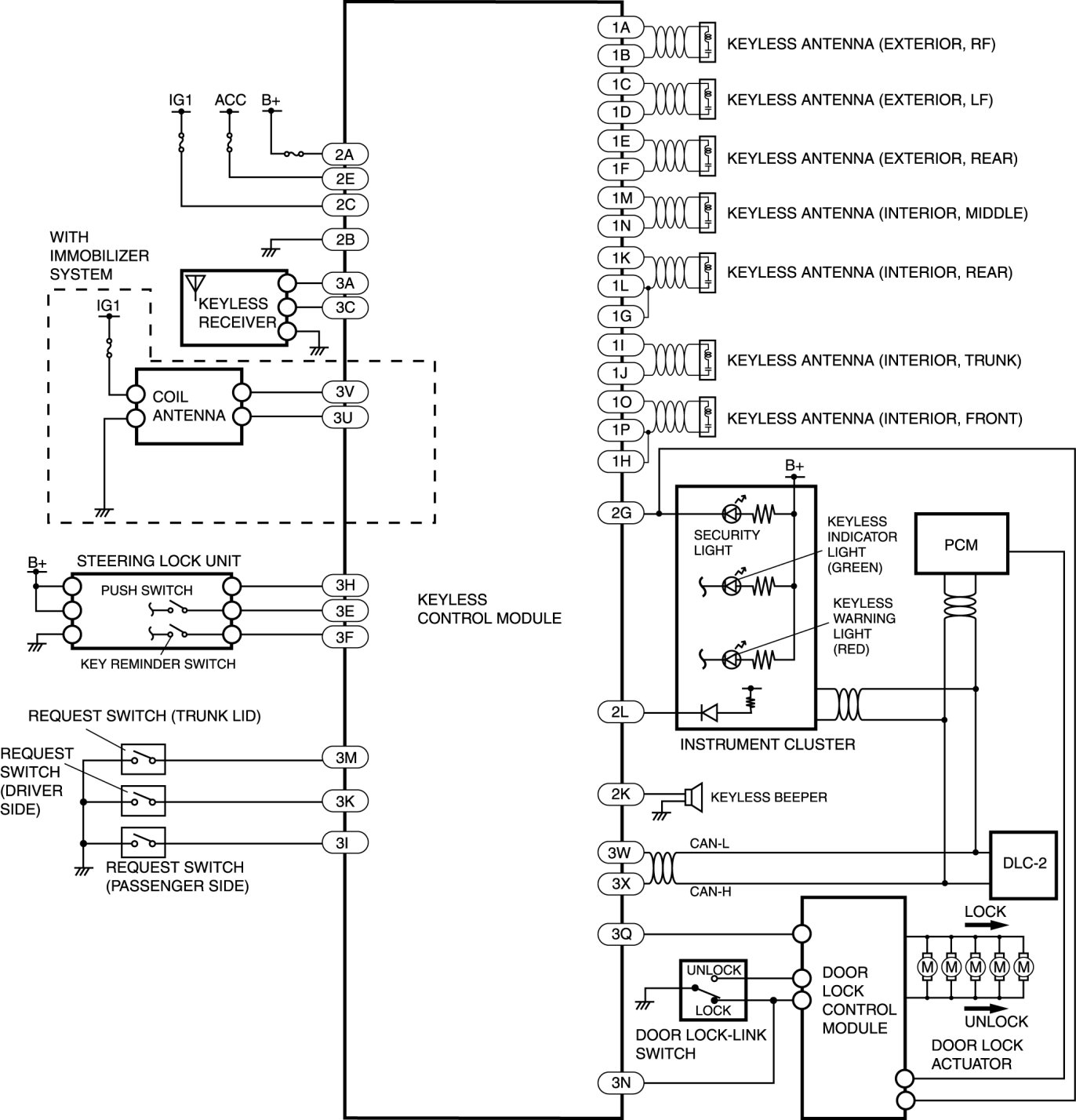

System Wiring Diagram [Advanced Keyless And Start System]




SYSTEM WIRING DIAGRAM [ADVANCED KEYLESS AND START SYSTEM]
