Power Window Motor: Locations

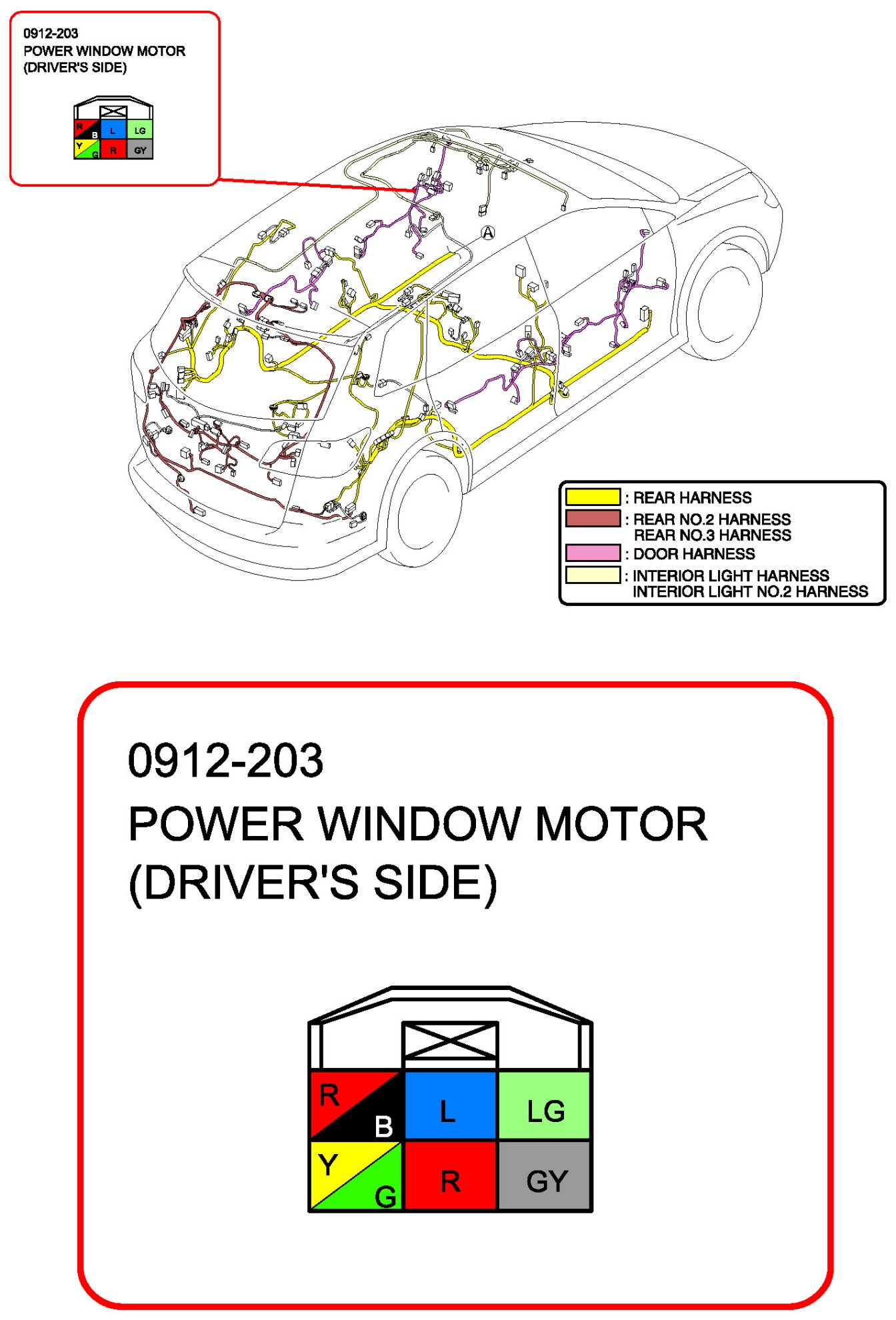

Power Window Motor (Driver's Side):

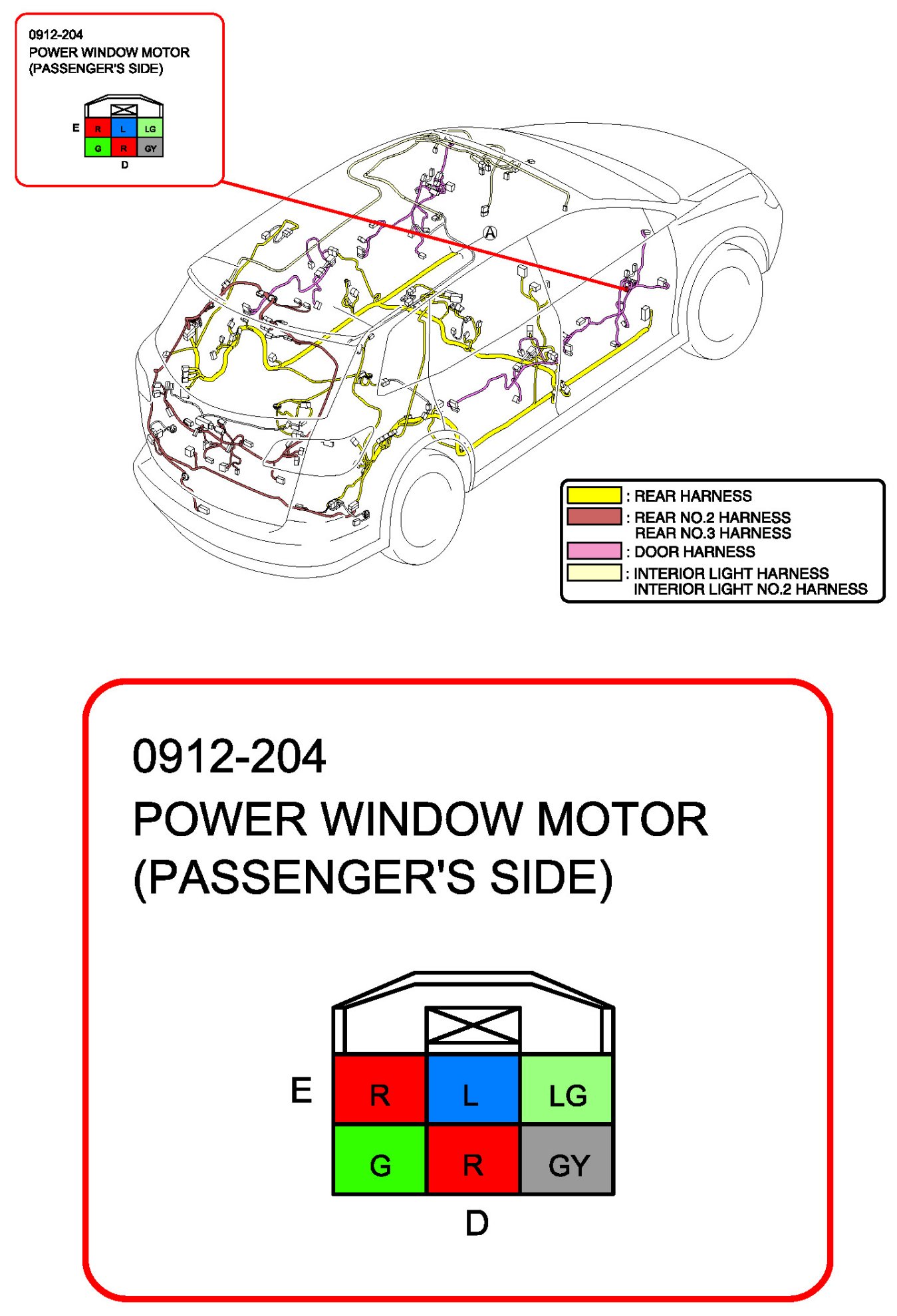

Power Window Motor (Passenger's Side):

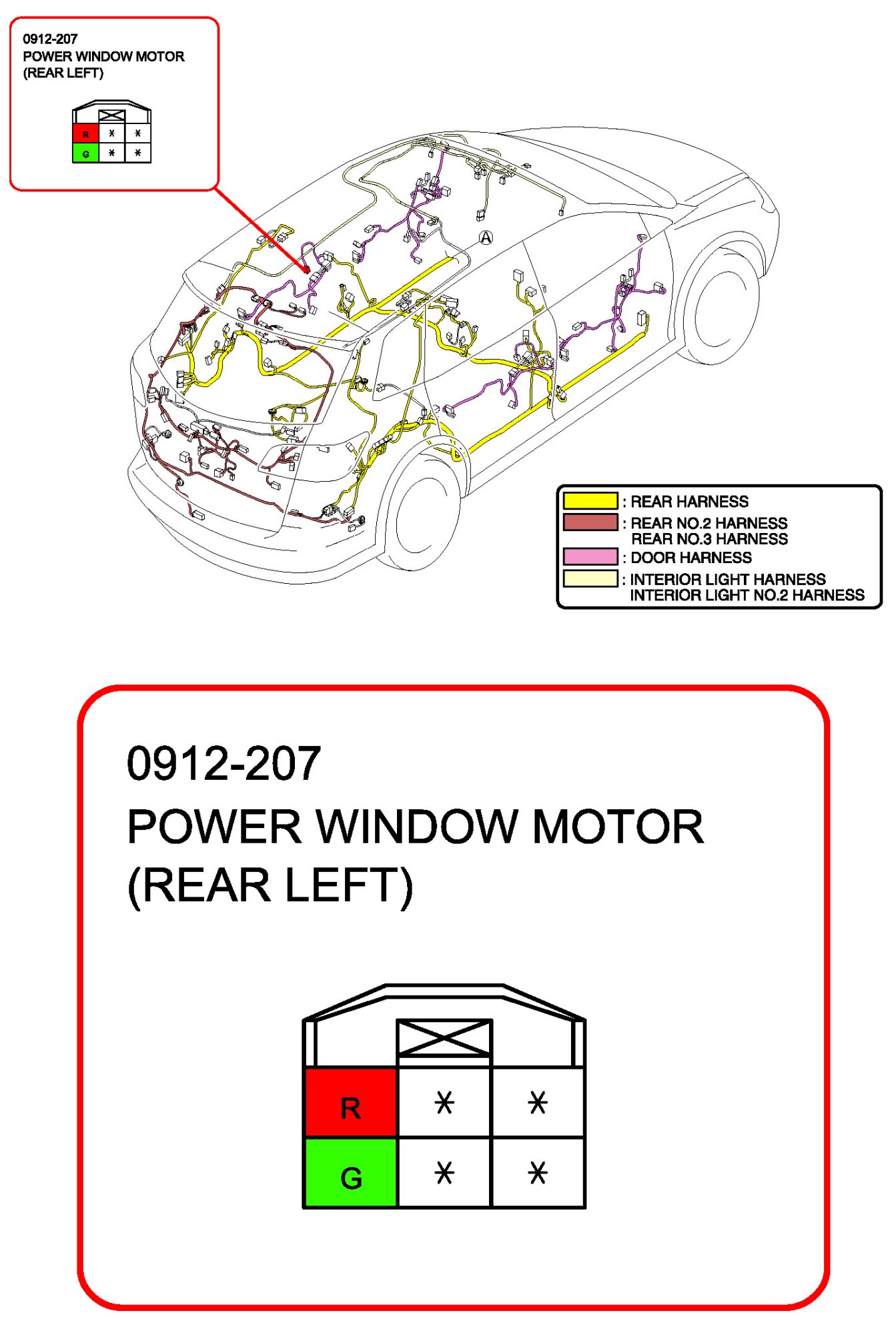

Power Window Motor (Rear Left):

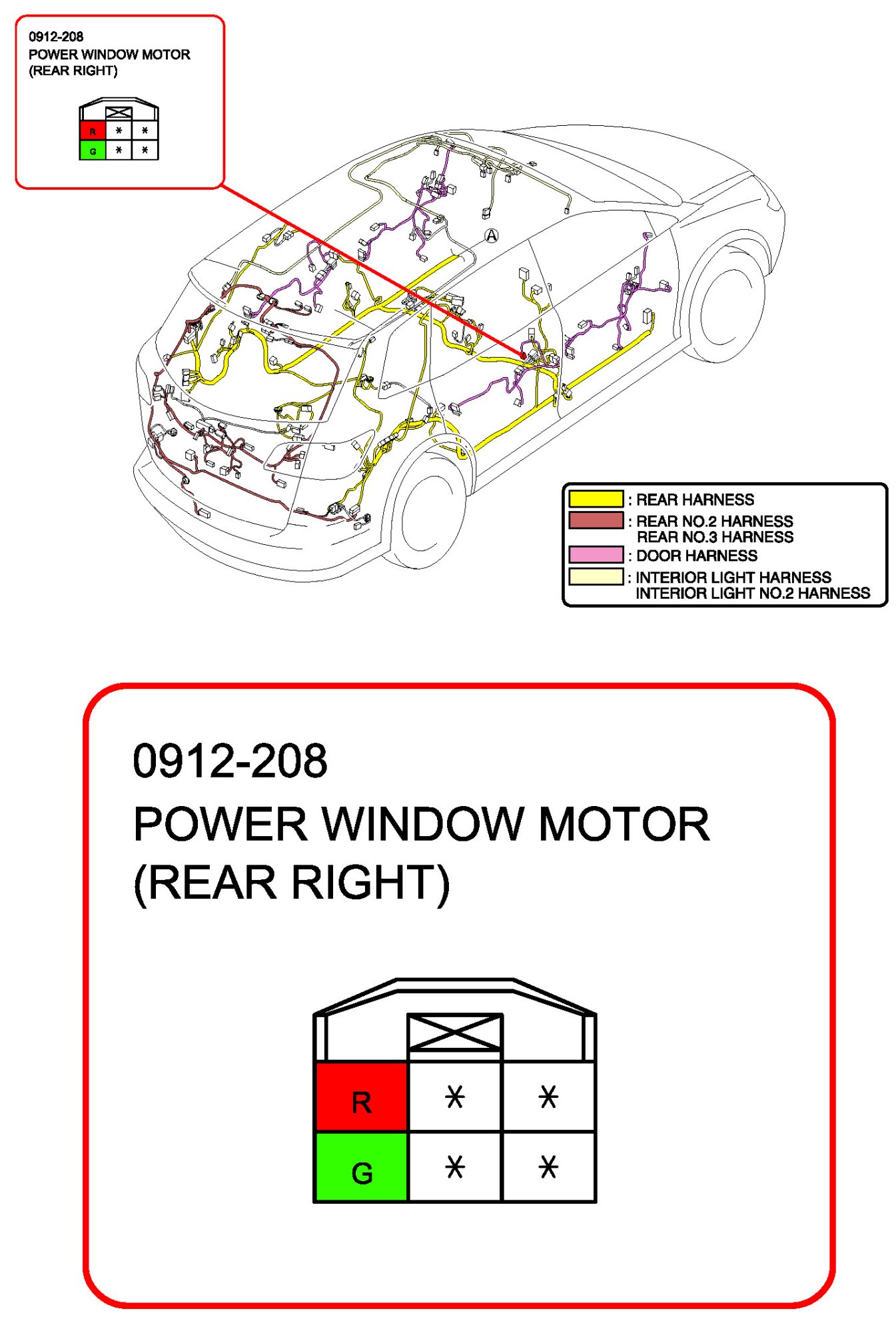

Power Window Motor (Rear Right):
