SAS Control Module

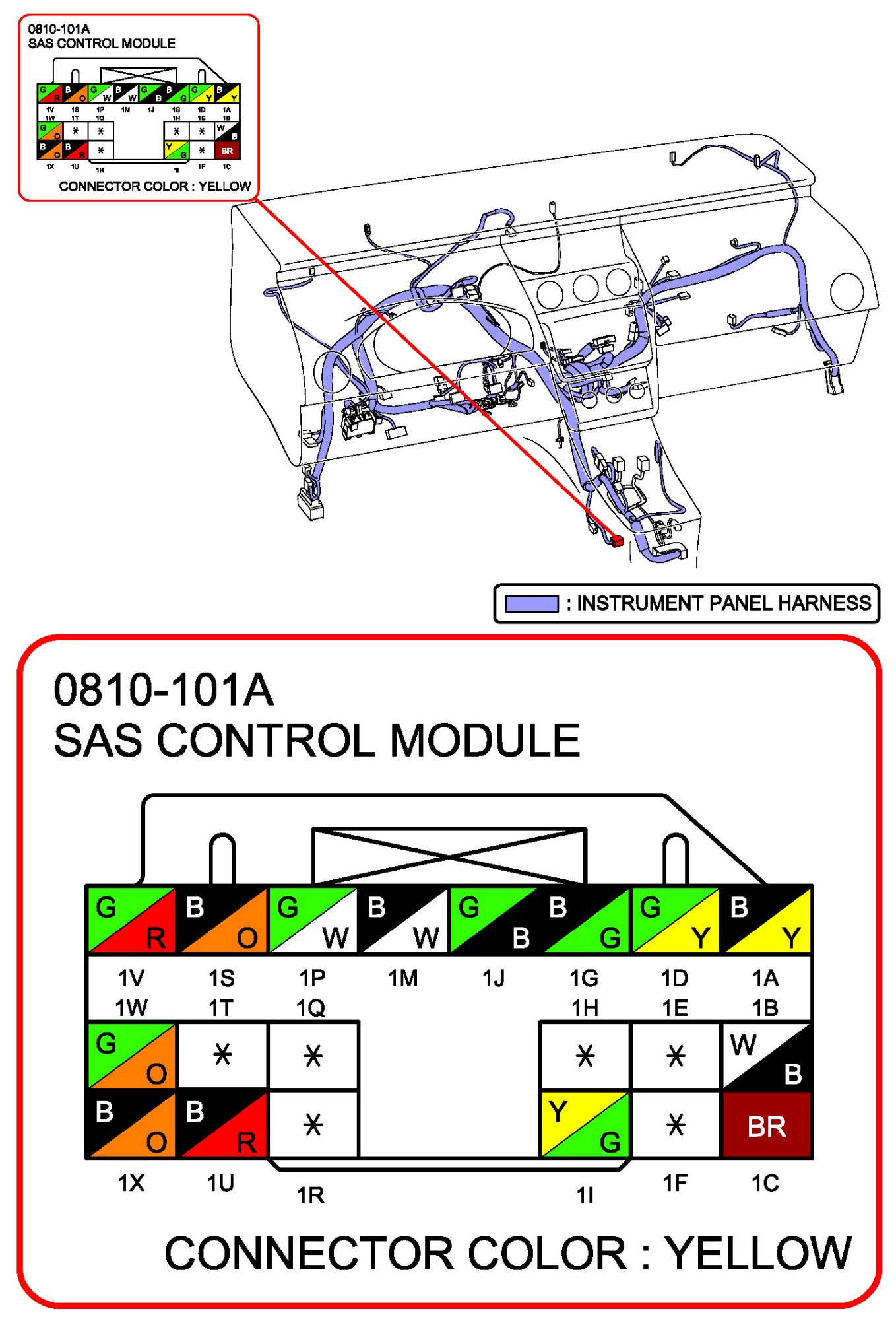

SAS Control Module:

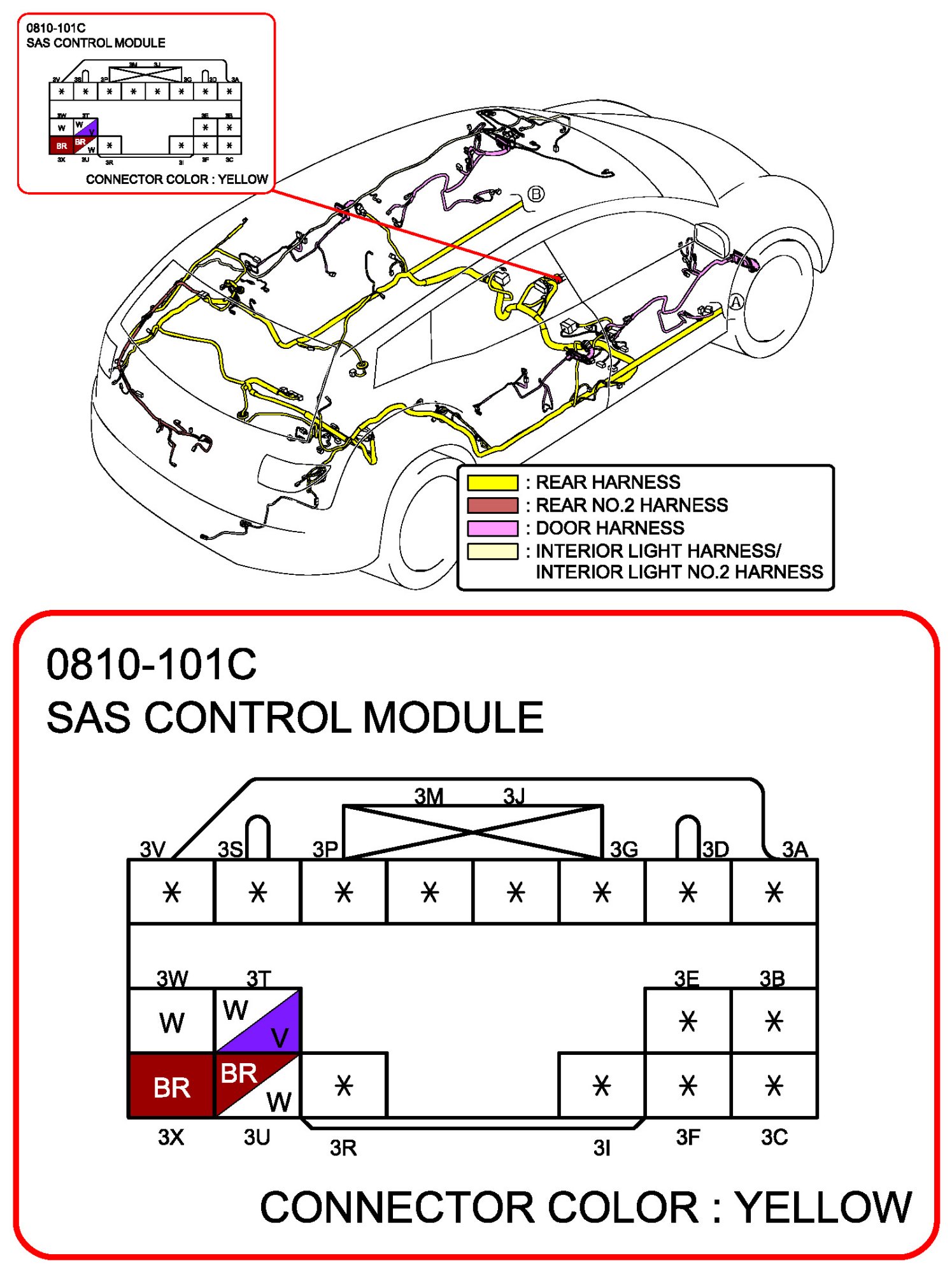

SAS Control Module:

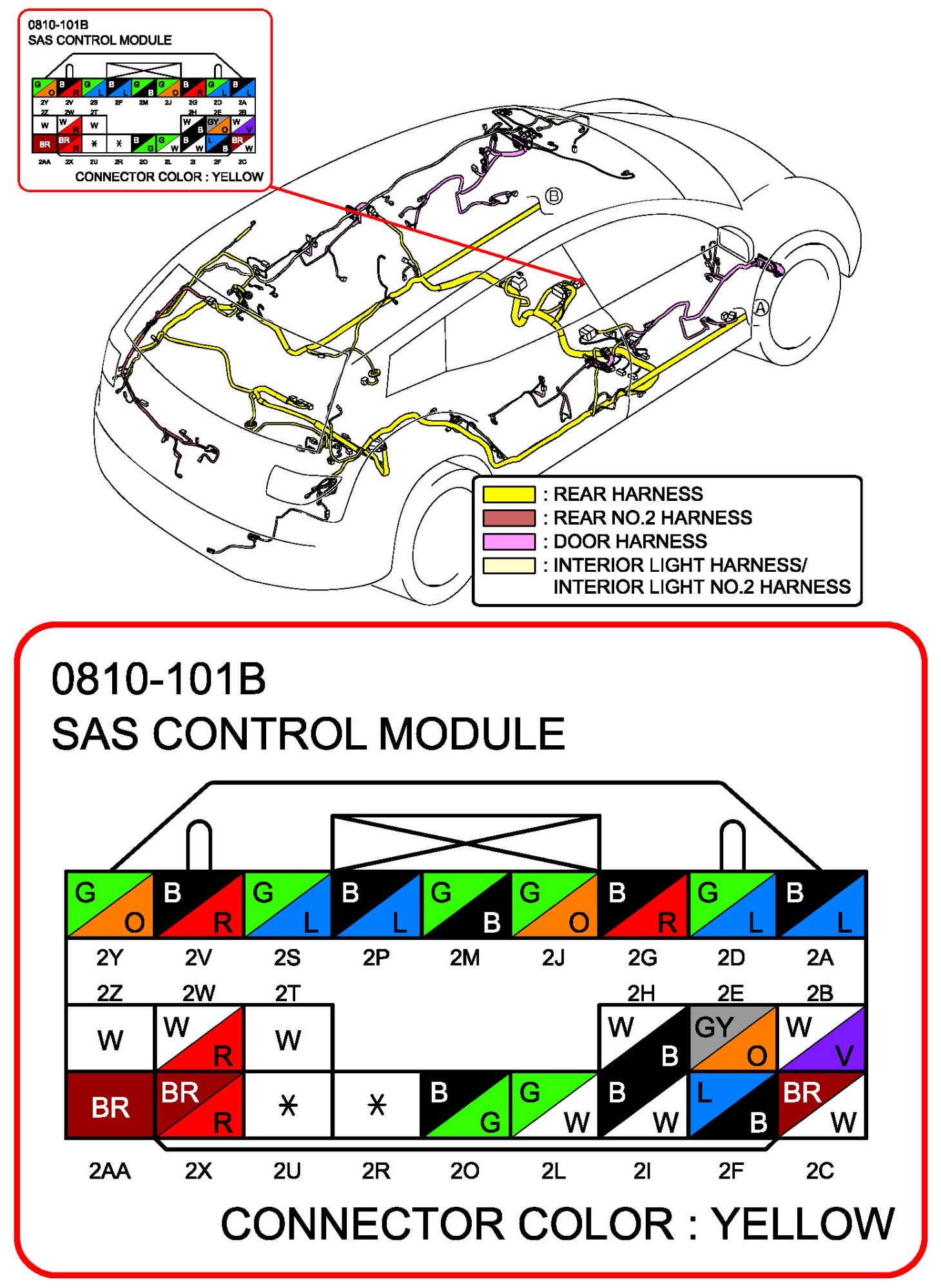

SAS Control Module:

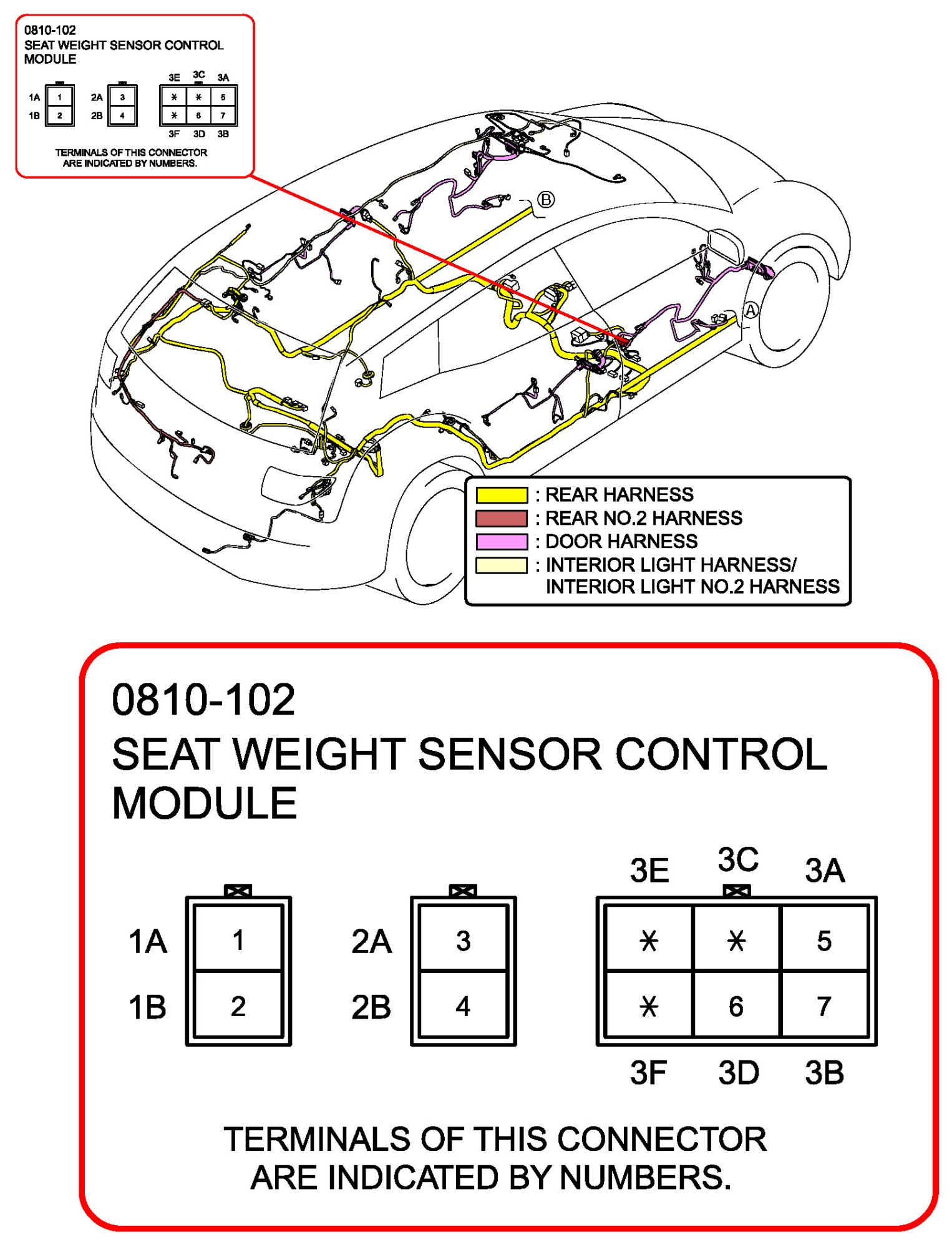

Seat Weight Sensor Control Module:
